How to Use MCP9600: Examples, Pinouts, and Specs

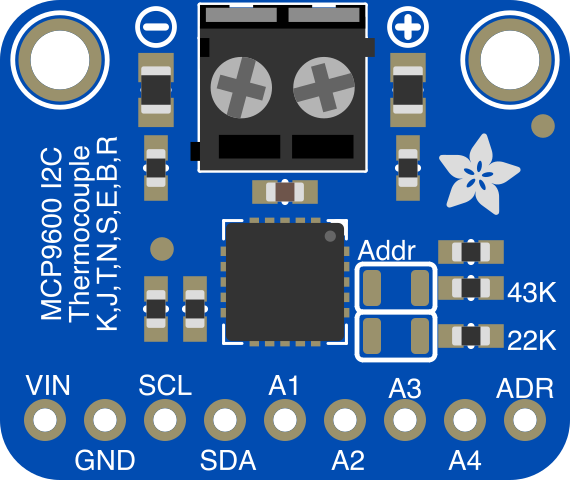

Image of MCP9600
Cirkit Designer LogoDesign with MCP9600 in Cirkit Designer

Introduction

The MCP9600, manufactured by Adafruit (Part ID: 4101), is a highly accurate digital temperature sensor with an I2C interface. It is capable of measuring temperatures in the range of -40°C to +125°C and features built-in cold-junction compensation, making it ideal for thermocouple-based temperature sensing. This component is widely used in applications such as HVAC systems, industrial monitoring, and consumer electronics due to its precision and ease of integration.

Explore Projects Built with MCP9600

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32C3 and SIM800L Powered Smart Energy Monitor with OLED Display and Wi-Fi Connectivity
Image of SERVER: A project utilizing MCP9600 in a practical application
This circuit is a power monitoring system that uses an ESP32C3 microcontroller to collect power usage data from slave devices via WiFi and SMS. The collected data is displayed on a 0.96" OLED screen, and the system is powered by an AC-DC converter module. Additionally, the circuit includes a SIM800L GSM module for SMS communication and LEDs for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Smart Relay Switch with ESP8266 and MCP23017
Image of Bed Room: A project utilizing MCP9600 in a practical application
This circuit is designed to control an 8-channel relay module via an ESP8266 microcontroller, which interfaces with an MCP23017 I/O expander over I2C. The ESP8266 connects to a WiFi network and subscribes to MQTT topics to receive commands for toggling the relays. Additionally, there are toggle switches connected to the MCP23017 that allow manual control of the relays, with the system's state being reported back via MQTT.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Relay Module with ESP8266 and MCP23017
Image of smart home: A project utilizing MCP9600 in a practical application
This circuit is a WiFi-enabled relay control system using an ESP8266-01 module and an MCP23017 I/O expander. The ESP8266 communicates with the MCP23017 via I2C to control an 8-channel relay module based on the state of 8 rocker switches, allowing for remote and manual control of connected devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C-Controlled Relay Switching with ESP32 and MCP23017 for Home Automation
Image of Vloerverwarming: A project utilizing MCP9600 in a practical application
This circuit appears to be a control system utilizing two MCP23017 I/O expanders interfaced with an Olimex ESP32-EVB microcontroller via I2C communication, as indicated by the SDA and SCL connections with pull-up resistors. The MCP23017 expanders control an 8-channel relay module, allowing the microcontroller to switch various loads, potentially for home automation or industrial control. Additionally, there is an Adafruit ADS1115 16-bit ADC for analog signal measurement, and several heating actuators and a thermostat are connected, suggesting temperature control functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MCP9600

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of SERVER: A project utilizing MCP9600 in a practical application
ESP32C3 and SIM800L Powered Smart Energy Monitor with OLED Display and Wi-Fi Connectivity
This circuit is a power monitoring system that uses an ESP32C3 microcontroller to collect power usage data from slave devices via WiFi and SMS. The collected data is displayed on a 0.96" OLED screen, and the system is powered by an AC-DC converter module. Additionally, the circuit includes a SIM800L GSM module for SMS communication and LEDs for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Bed Room: A project utilizing MCP9600 in a practical application
Wi-Fi Controlled Smart Relay Switch with ESP8266 and MCP23017
This circuit is designed to control an 8-channel relay module via an ESP8266 microcontroller, which interfaces with an MCP23017 I/O expander over I2C. The ESP8266 connects to a WiFi network and subscribes to MQTT topics to receive commands for toggling the relays. Additionally, there are toggle switches connected to the MCP23017 that allow manual control of the relays, with the system's state being reported back via MQTT.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of smart home: A project utilizing MCP9600 in a practical application
Wi-Fi Controlled Relay Module with ESP8266 and MCP23017
This circuit is a WiFi-enabled relay control system using an ESP8266-01 module and an MCP23017 I/O expander. The ESP8266 communicates with the MCP23017 via I2C to control an 8-channel relay module based on the state of 8 rocker switches, allowing for remote and manual control of connected devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Vloerverwarming: A project utilizing MCP9600 in a practical application
I2C-Controlled Relay Switching with ESP32 and MCP23017 for Home Automation
This circuit appears to be a control system utilizing two MCP23017 I/O expanders interfaced with an Olimex ESP32-EVB microcontroller via I2C communication, as indicated by the SDA and SCL connections with pull-up resistors. The MCP23017 expanders control an 8-channel relay module, allowing the microcontroller to switch various loads, potentially for home automation or industrial control. Additionally, there is an Adafruit ADS1115 16-bit ADC for analog signal measurement, and several heating actuators and a thermostat are connected, suggesting temperature control functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • HVAC (Heating, Ventilation, and Air Conditioning) systems
  • Industrial temperature monitoring
  • Consumer electronics
  • Laboratory equipment
  • Thermocouple-based temperature sensing

Technical Specifications

Key Technical Details

Parameter Value
Operating Voltage 2.7V to 5.5V
Temperature Range -40°C to +125°C
Accuracy ±1°C
Interface I2C
Supported Thermocouples Type K, J, T, N, S, E, B, R
Cold-Junction Compensation Built-in
Power Consumption 300 µA (typical)
Package Type QFN

Pin Configuration

The MCP9600 is typically available in a QFN package. Below is the pin configuration:

Pin Number Pin Name Description
1 VDD Power supply (2.7V to 5.5V)
2 GND Ground
3 SDA I2C data line
4 SCL I2C clock line
5 ALERT1 Programmable temperature alert 1
6 ALERT2 Programmable temperature alert 2
7 ALERT3 Programmable temperature alert 3
8 ALERT4 Programmable temperature alert 4

Usage Instructions

How to Use the MCP9600 in a Circuit

  1. Power Supply: Connect the VDD pin to a 3.3V or 5V power source and the GND pin to ground.
  2. I2C Communication: Connect the SDA and SCL pins to the corresponding I2C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on both SDA and SCL lines if not already present on your board.
  3. Thermocouple Connection: Attach the thermocouple to the MCP9600's input terminals as per the datasheet instructions.
  4. Alert Pins: Optionally, connect the ALERT pins to monitor temperature thresholds.

Important Considerations

  • Ensure the I2C address of the MCP9600 does not conflict with other devices on the same bus. The default address is 0x60, but it can be configured.
  • Use appropriate pull-up resistors for the I2C lines if not already included in your circuit.
  • Avoid placing the MCP9600 near heat sources that could affect its cold-junction compensation.

Example Code for Arduino UNO

Below is an example of how to interface the MCP9600 with an Arduino UNO using the Adafruit MCP9600 library:

#include <Wire.h>
#include <Adafruit_MCP9600.h>

// Create an MCP9600 object
Adafruit_MCP9600 mcp;

// Setup function
void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial) {
    delay(10); // Wait for Serial Monitor to open
  }

  // Initialize the MCP9600 sensor
  if (!mcp.begin(0x60)) { // Default I2C address is 0x60
    Serial.println("Failed to find MCP9600! Check wiring.");
    while (1) {
      delay(10); // Halt execution if sensor is not found
    }
  }

  Serial.println("MCP9600 initialized successfully!");
  mcp.setThermocoupleType(MCP9600_TYPE_K); // Set thermocouple type to Type K
  Serial.print("Thermocouple type set to: ");
  Serial.println(mcp.getThermocoupleType());
}

// Loop function
void loop() {
  // Read temperature in Celsius
  float temperature = mcp.readThermocoupleTemperature();
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  delay(1000); // Wait 1 second before the next reading
}

Notes on the Code

  • Install the Adafruit MCP9600 library via the Arduino Library Manager before running the code.
  • Ensure the I2C address matches the configuration of your MCP9600 device.

Troubleshooting and FAQs

Common Issues

  1. Sensor Not Detected:

    • Cause: Incorrect I2C wiring or address mismatch.
    • Solution: Verify the SDA and SCL connections and ensure the I2C address matches the code.
  2. Inaccurate Temperature Readings:

    • Cause: Improper thermocouple connection or external heat sources affecting cold-junction compensation.
    • Solution: Check the thermocouple wiring and ensure the MCP9600 is placed away from heat sources.
  3. No Data on Serial Monitor:

    • Cause: Serial communication not initialized or incorrect baud rate.
    • Solution: Ensure Serial.begin(9600) is called in the setup() function and the Serial Monitor is set to 9600 baud.

FAQs

Q1: Can the MCP9600 work with 5V logic?
A1: Yes, the MCP9600 supports an operating voltage range of 2.7V to 5.5V, making it compatible with both 3.3V and 5V logic systems.

Q2: What thermocouple types are supported?
A2: The MCP9600 supports Type K, J, T, N, S, E, B, and R thermocouples.

Q3: How do I change the I2C address?
A3: The I2C address can be configured using the MCP9600's address pins. Refer to the datasheet for details on address pin settings.

Q4: Can I use the MCP9600 without a thermocouple?
A4: No, the MCP9600 is designed to work with thermocouples and requires one to measure temperatures.

By following this documentation, you can effectively integrate the MCP9600 into your projects for precise temperature sensing.
