How to Use Mosfet: Examples, Pinouts, and Specs

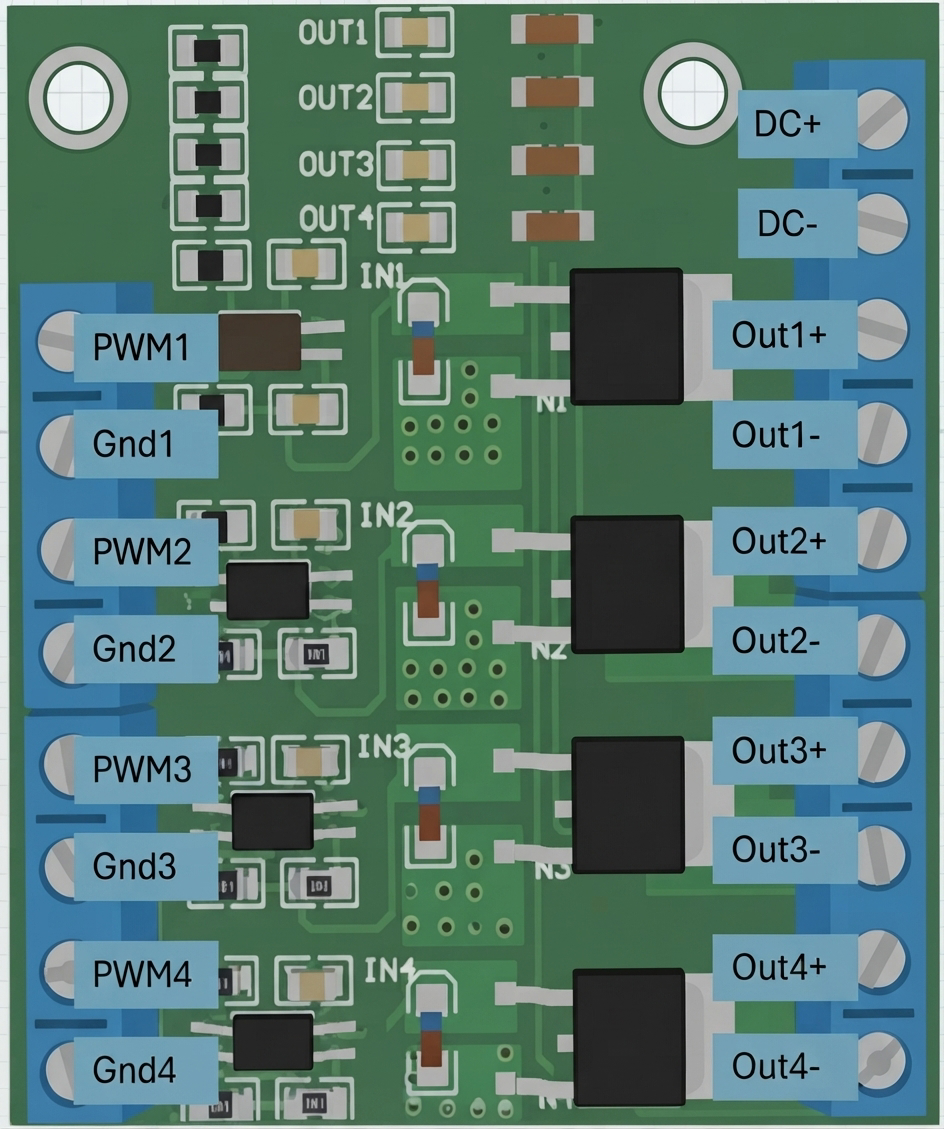

Introduction

A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a type of transistor used for switching and amplifying electronic signals. It is controlled by voltage applied to the gate terminal, allowing for efficient control of current flow between the drain and source terminals. MOSFETs are widely used in various electronic applications due to their high efficiency, fast switching speeds, and low power consumption.

Explore Projects Built with Mosfet

Arduino UNO Controlled Mosfet Switch with Power Supply and Diode Protection

This circuit uses an Arduino UNO to control a MOSFET, which in turn regulates the current through a diode and a 15-ohm resistor. The Arduino outputs a signal to the gate of the MOSFET via a 10k-ohm resistor, allowing the MOSFET to switch the power supplied by an external power source to the diode and resistor.

Open Project in Cirkit Designer

ESP32-Controlled Motor with IRFZ44N MOSFET

This circuit uses an ESP32 microcontroller to control a motor through an IRFZ44N MOSFET. The ESP32's GPIO pin D21 is connected through a 10-ohm resistor to the gate of the MOSFET, which switches the motor on and off. A 10k-ohm pull-down resistor is connected to the gate to ensure the MOSFET turns off when the GPIO pin is not driving it, and the motor is powered by a 12V battery.

Open Project in Cirkit Designer

ESP32-Controlled Pneumatic Solenoid Valve with MOSFET Switching

This circuit uses an ESP32 microcontroller to control a 12V pneumatic solenoid valve via an IRFZ44N MOSFET as a switch. The ESP32 outputs a control signal through a 220-ohm resistor to the gate of the MOSFET, which in turn controls the power to the solenoid valve from a 12V power supply. A 10k-ohm resistor provides a pull-down for the MOSFET gate to ensure it remains off when not driven by the ESP32.

Open Project in Cirkit Designer

Pixhawk-Controlled Solenoid Driver with Voltage Regulation

This circuit uses an LM393 comparator to drive an IRFZ44N MOSFET based on the comparison between two input signals from a pixhawk 2.4.8 flight controller. The MOSFET switches a solenoid, with a diode for back EMF protection, and the system is powered by a Lipo battery with voltage regulation provided by a step-up boost converter and a step-down voltage regulator to ensure stable operation. A resistor is connected to the gate of the MOSFET for proper biasing.

Open Project in Cirkit Designer

Common Applications and Use Cases

Power supplies and voltage regulators
Motor control circuits
Audio amplifiers
Switching circuits in microcontrollers
LED dimming and control
High-frequency signal amplification

Technical Specifications

Below are the general technical specifications for a typical N-channel MOSFET (e.g., IRF540N). Specifications may vary depending on the specific MOSFET model.

Key Technical Details

Type: N-channel or P-channel
Maximum Drain-Source Voltage (V_DS): 100V (varies by model)
Maximum Gate-Source Voltage (V_GS): ±20V
Continuous Drain Current (I_D): 33A (at 25°C for IRF540N)
Power Dissipation (P_D): 150W
Threshold Voltage (V_GS(th)): 2V - 4V
R_DS(on) (On-Resistance): 0.044Ω (typical)
Operating Temperature Range: -55°C to +175°C

Pin Configuration and Descriptions

MOSFETs typically have three pins: Gate (G), Drain (D), and Source (S). Below is the pin configuration for a standard TO-220 package.

Pin Number	Pin Name	Description
1	Gate (G)	Controls the MOSFET's switching operation.
2	Drain (D)	Current flows from drain to source when ON.
3	Source (S)	Current exits the MOSFET through this pin.

Usage Instructions

How to Use the MOSFET in a Circuit

Determine the MOSFET Type: Identify whether you are using an N-channel or P-channel MOSFET. N-channel MOSFETs are more common and are used for low-side switching, while P-channel MOSFETs are used for high-side switching.
Connect the Pins:
- Gate: Connect to the control signal (e.g., microcontroller output) through a resistor (typically 220Ω to 1kΩ) to limit inrush current.
- Drain: Connect to the load (e.g., motor, LED).
- Source: Connect to ground (N-channel) or the positive supply (P-channel).
Gate Voltage: Ensure the gate voltage (V_GS) is sufficient to fully turn on the MOSFET. For logic-level MOSFETs, a gate voltage of 5V is typically sufficient.
Add a Flyback Diode: When driving inductive loads (e.g., motors, relays), place a flyback diode across the load to protect the MOSFET from voltage spikes.

Example: Controlling an LED with an N-Channel MOSFET and Arduino UNO

Below is an example circuit and Arduino code to control an LED using an N-channel MOSFET.

Circuit Connections

Gate: Connect to Arduino digital pin 9 through a 220Ω resistor.
Drain: Connect to the negative terminal of the LED.
Source: Connect to ground.
LED Positive Terminal: Connect to a 12V power supply through a current-limiting resistor.

Arduino Code

// MOSFET LED Control Example
// This code turns an LED on and off using an N-channel MOSFET.
// Connect the MOSFET gate to pin 9 of the Arduino.

const int mosfetGatePin = 9; // Pin connected to the MOSFET gate

void setup() {
  pinMode(mosfetGatePin, OUTPUT); // Set the gate pin as an output
}

void loop() {
  digitalWrite(mosfetGatePin, HIGH); // Turn the LED on
  delay(1000); // Wait for 1 second
  digitalWrite(mosfetGatePin, LOW);  // Turn the LED off
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

Gate Resistor: Always use a resistor between the microcontroller and the MOSFET gate to limit inrush current and protect the microcontroller.
Logic-Level MOSFETs: Use logic-level MOSFETs (e.g., IRLZ44N) when driving the MOSFET directly from a 5V microcontroller like Arduino.
Heat Dissipation: Use a heatsink if the MOSFET is handling high currents to prevent overheating.
Voltage Ratings: Ensure the MOSFET's voltage and current ratings exceed the requirements of your circuit.

Troubleshooting and FAQs

Common Issues

MOSFET Not Turning On:
- Check if the gate voltage (V_GS) is sufficient to fully turn on the MOSFET.
- Ensure the gate resistor value is not too high, which could slow down switching.
Overheating:
- Verify that the MOSFET is operating within its current and power dissipation limits.
- Use a heatsink or active cooling if necessary.
Load Not Working:
- Check the connections to the drain and source pins.
- Ensure the load is properly connected and powered.

FAQs

Q: Can I use a MOSFET without a gate resistor?
A: While it is possible, it is not recommended. A gate resistor limits the inrush current and protects the microcontroller or driver circuit.

Q: What is the difference between N-channel and P-channel MOSFETs?
A: N-channel MOSFETs are used for low-side switching (source connected to ground), while P-channel MOSFETs are used for high-side switching (source connected to the positive supply).

Q: How do I choose the right MOSFET for my application?
A: Consider the voltage, current, and power requirements of your circuit. Ensure the MOSFET's V_DS, I_D, and R_DS(on) ratings meet or exceed your needs. For microcontroller applications, use a logic-level MOSFET.

Q: Why is my MOSFET not switching fast enough?
A: Check the gate resistor value. A high-value resistor can slow down the charging and discharging of the gate capacitance, reducing switching speed. Use a lower-value resistor or a dedicated gate driver for faster switching.
