How to Use DS1302V0: Examples, Pinouts, and Specs

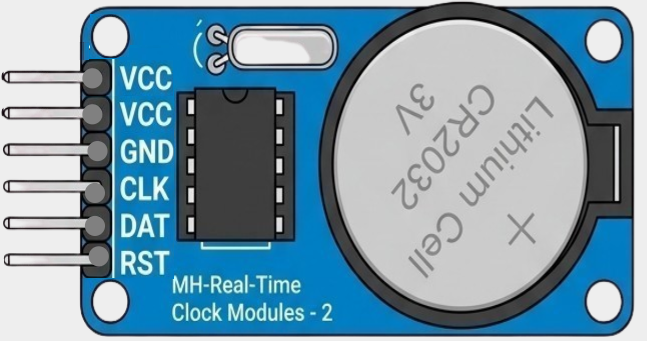

Image of DS1302V0
Cirkit Designer LogoDesign with DS1302V0 in Cirkit Designer

Introduction

The DS1302V0 is a real-time clock (RTC) chip designed to keep track of the current time and date, including seconds, minutes, hours, day, date, month, and year. It features a serial interface for communication with microcontrollers and includes a battery backup to ensure timekeeping continues during power outages. This makes it an essential component for applications requiring accurate timekeeping, even in the absence of a primary power source.

Explore Projects Built with DS1302V0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
Image of LRCM PHASE 2 BASIC: A project utilizing DS1302V0 in a practical application
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
Image of Pulsefex: A project utilizing DS1302V0 in a practical application
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Based Water Quality Monitoring System with Solar Charging
Image of SISTEMA DE ALIMENTACION Y CARGA PARA EL PROYECTO HUMEDALES CONSTRUIDO UT MATAMOROS: A project utilizing DS1302V0 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a DS18B20 temperature sensor and a turbidity module to monitor water quality. The NodeMCU reads temperature data from the DS18B20 sensor and turbidity levels from the turbidity module's analog output. Power management is handled by a 18650 Li-ion battery connected to a solar panel and a Do solara charge controller, with voltage regulation provided by an XL6009 module to ensure stable operation of the microcontroller and sensors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Weather Station with Wemos D1 Mini and OLED Display
Image of izdelie_3: A project utilizing DS1302V0 in a practical application
This circuit is a weather monitoring system that uses a Wemos D1 Mini microcontroller to read temperature and humidity data from four DHT22 sensors and display the information on an Adafruit OLED screen. The data is also transmitted via WiFi to an MQTT server for remote monitoring. The system is powered by a 2000mAh battery, which is managed by a TP4056 charging module and a Mtiny Power module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DS1302V0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of LRCM PHASE 2 BASIC: A project utilizing DS1302V0 in a practical application
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pulsefex: A project utilizing DS1302V0 in a practical application
Battery-Powered Health Monitoring System with Nucleo WB55RG and OLED Display
This circuit is a multi-sensor data acquisition system that uses a Nucleo WB55RG microcontroller to interface with a digital temperature sensor (TMP102), a pulse oximeter and heart-rate sensor (MAX30102), and a 0.96" OLED display via I2C. Additionally, it includes a Sim800l module for GSM communication, powered by a 3.7V LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SISTEMA DE ALIMENTACION Y CARGA PARA EL PROYECTO HUMEDALES CONSTRUIDO UT MATAMOROS: A project utilizing DS1302V0 in a practical application
ESP8266 NodeMCU Based Water Quality Monitoring System with Solar Charging
This circuit features an ESP8266 NodeMCU microcontroller interfaced with a DS18B20 temperature sensor and a turbidity module to monitor water quality. The NodeMCU reads temperature data from the DS18B20 sensor and turbidity levels from the turbidity module's analog output. Power management is handled by a 18650 Li-ion battery connected to a solar panel and a Do solara charge controller, with voltage regulation provided by an XL6009 module to ensure stable operation of the microcontroller and sensors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of izdelie_3: A project utilizing DS1302V0 in a practical application
Wi-Fi Controlled Weather Station with Wemos D1 Mini and OLED Display
This circuit is a weather monitoring system that uses a Wemos D1 Mini microcontroller to read temperature and humidity data from four DHT22 sensors and display the information on an Adafruit OLED screen. The data is also transmitted via WiFi to an MQTT server for remote monitoring. The system is powered by a 2000mAh battery, which is managed by a TP4056 charging module and a Mtiny Power module.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Digital clocks and timers
  • Data loggers
  • Home automation systems
  • Embedded systems requiring time-stamped data
  • Alarm systems and scheduling devices

Technical Specifications

The DS1302V0 is a low-power RTC chip with the following key specifications:

Parameter Value
Operating Voltage 2.0V to 5.5V
Operating Temperature -40°C to +85°C
Timekeeping Current < 300nA (at 2.0V)
Communication Interface Serial (3-wire interface: RST, I/O, SCLK)
Backup Battery Voltage 2.0V to 3.5V
Clock Accuracy ±2 minutes per month (at 25°C)
Time Format 24-hour or 12-hour with AM/PM indication
Memory 31 bytes of user-accessible RAM

Pin Configuration and Descriptions

The DS1302V0 has an 8-pin configuration, as detailed below:

Pin Number Pin Name Description
1 VCC1 Primary power supply (2.0V to 5.5V)
2 X1 Oscillator input (32.768 kHz crystal connection)
3 X2 Oscillator output (32.768 kHz crystal connection)
4 GND Ground
5 RST Reset pin to enable communication
6 I/O Serial data input/output
7 SCLK Serial clock input
8 VCC2 Backup battery input (2.0V to 3.5V)

Usage Instructions

How to Use the DS1302V0 in a Circuit

  1. Power Supply: Connect the primary power source to the VCC1 pin and the backup battery to the VCC2 pin. Ensure the voltage levels are within the specified range.
  2. Crystal Oscillator: Attach a 32.768 kHz crystal between the X1 and X2 pins. Avoid using capacitors or resistors in parallel with the crystal, as the DS1302V0 has an internal oscillator circuit.
  3. Microcontroller Interface: Connect the RST, I/O, and SCLK pins to the corresponding GPIO pins on your microcontroller. Use pull-up resistors if necessary.
  4. Communication: Use the 3-wire serial interface to send and receive data. The RST pin must be set high to enable communication.

Important Considerations and Best Practices

  • Use a decoupling capacitor (e.g., 0.1 µF) near the VCC1 pin to stabilize the power supply.
  • Ensure the backup battery voltage is within the specified range to maintain timekeeping during power outages.
  • Avoid excessive noise on the SCLK line, as it may cause communication errors.
  • When using the DS1302V0 with an Arduino UNO, ensure the I/O pin is configured as both input and output during communication.

Example Code for Arduino UNO

Below is an example of how to interface the DS1302V0 with an Arduino UNO to read and set the time:

#include <DS1302.h> // Include the DS1302 library

// Define the DS1302 pins connected to the Arduino
#define RST_PIN 7   // Reset pin
#define IO_PIN 6    // Data I/O pin
#define SCLK_PIN 5  // Serial clock pin

// Create a DS1302 object
DS1302 rtc(RST_PIN, IO_PIN, SCLK_PIN);

void setup() {
  Serial.begin(9600); // Initialize serial communication

  // Set the time (Year, Month, Day, Hour, Minute, Second)
  rtc.setTime(2023, 10, 15, 14, 30, 0);

  Serial.println("DS1302 RTC Initialized");
}

void loop() {
  // Read the current time from the RTC
  Time t = rtc.getTime();

  // Print the time to the serial monitor
  Serial.print("Time: ");
  Serial.print(t.hour);
  Serial.print(":");
  Serial.print(t.min);
  Serial.print(":");
  Serial.println(t.sec);

  // Print the date to the serial monitor
  Serial.print("Date: ");
  Serial.print(t.date);
  Serial.print("/");
  Serial.print(t.mon);
  Serial.print("/");
  Serial.println(t.year);

  delay(1000); // Wait for 1 second before updating
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. RTC Not Keeping Time

    • Ensure the backup battery is properly connected and within the specified voltage range.
    • Verify that the crystal oscillator is correctly connected to the X1 and X2 pins.
  2. Communication Errors

    • Check the connections between the DS1302V0 and the microcontroller.
    • Ensure the RST pin is set high during communication.
    • Verify that the SCLK signal is free from noise or interference.
  3. Incorrect Time or Date

    • Double-check the time and date values set in the code.
    • Ensure the RTC is not reset unintentionally during power cycles.

FAQs

Q: Can the DS1302V0 operate without a backup battery?
A: Yes, but it will lose track of time during power outages. A backup battery is recommended for uninterrupted timekeeping.

Q: What type of crystal should I use with the DS1302V0?
A: Use a 32.768 kHz quartz crystal with a load capacitance of 6 pF to 12.5 pF.

Q: How accurate is the DS1302V0?
A: The DS1302V0 has a typical accuracy of ±2 minutes per month at 25°C. External factors like temperature and crystal quality may affect accuracy.

Q: Can I use the DS1302V0 with 3.3V microcontrollers?
A: Yes, the DS1302V0 supports an operating voltage range of 2.0V to 5.5V, making it compatible with 3.3V systems.
