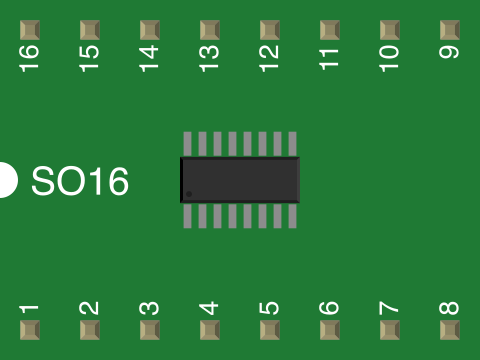

Image of 74HC4052
Cirkit Designer LogoDesign with 74HC4052 in Cirkit Designer

Introduction

The 74HC4052 is a dual 4-channel analog multiplexer/demultiplexer manufactured by Nexperia (Part ID: 74HC4052D). This versatile component allows the selection of one of several input signals to be routed to a single output. It is designed for both analog and digital signal routing and operates over a wide supply voltage range, making it suitable for a variety of applications.

Explore Projects Built with 74HC4052

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
STM32-Controlled LED Display with 74HC595 Shift Register and 12-Bit DAC
Image of Harry Stim Breadboard: A project utilizing 74HC4052 in a practical application
This circuit uses a 74HC595 shift register to control multiple LEDs via a common ground configuration, with a microcontroller providing serial data input. It includes decoupling capacitors for stability and a 12-Bit DAC, potentially for analog signal generation or reference voltage application.
Cirkit Designer LogoOpen Project in Cirkit Designer
8-Channel Multiplexer with Pushbutton Inputs and Resistor Network
Image of 8 push pull buttons one mux: A project utilizing 74HC4052 in a practical application
This circuit uses a SparkFun 74HC4051 8-Channel Multiplexer to read the states of eight pushbuttons. Each pushbutton is connected to a corresponding input channel on the multiplexer through a 2k Ohm resistor, allowing the multiplexer to sequentially read the button states and output them to a single data line.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with MPU-6050 Sensor Array and Multiplexer Control Circuit
Image of smrpe: A project utilizing 74HC4052 in a practical application
This circuit is designed to interface multiple MPU-6050 sensors with an Arduino UNO for motion tracking purposes. The HCF4052BE analog multiplexer/demultiplexer is used to switch between the MPU-6050 sensors' SCL and SDA lines, allowing for multiple sensors to share the same I2C bus. The Arduino runs embedded code to read capacitive touch inputs, accelerometer and gyroscope data from the MPU-6050 sensors, and transmit this information via Bluetooth and Wi-Fi using software serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
74HC4017-Based Sequential LED Flasher with Pushbutton Control
Image of mynew: A project utilizing 74HC4052 in a practical application
This circuit includes a decade counter (74HC4017) that likely sequences through outputs based on pushbutton inputs. A BC547 transistor is used to drive an LED, indicating one of the counter's states. Diodes and resistors are included for current direction control and limiting, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 74HC4052

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Harry Stim Breadboard: A project utilizing 74HC4052 in a practical application
STM32-Controlled LED Display with 74HC595 Shift Register and 12-Bit DAC
This circuit uses a 74HC595 shift register to control multiple LEDs via a common ground configuration, with a microcontroller providing serial data input. It includes decoupling capacitors for stability and a 12-Bit DAC, potentially for analog signal generation or reference voltage application.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 8 push pull buttons one mux: A project utilizing 74HC4052 in a practical application
8-Channel Multiplexer with Pushbutton Inputs and Resistor Network
This circuit uses a SparkFun 74HC4051 8-Channel Multiplexer to read the states of eight pushbuttons. Each pushbutton is connected to a corresponding input channel on the multiplexer through a 2k Ohm resistor, allowing the multiplexer to sequentially read the button states and output them to a single data line.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of smrpe: A project utilizing 74HC4052 in a practical application
Arduino UNO with MPU-6050 Sensor Array and Multiplexer Control Circuit
This circuit is designed to interface multiple MPU-6050 sensors with an Arduino UNO for motion tracking purposes. The HCF4052BE analog multiplexer/demultiplexer is used to switch between the MPU-6050 sensors' SCL and SDA lines, allowing for multiple sensors to share the same I2C bus. The Arduino runs embedded code to read capacitive touch inputs, accelerometer and gyroscope data from the MPU-6050 sensors, and transmit this information via Bluetooth and Wi-Fi using software serial communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mynew: A project utilizing 74HC4052 in a practical application
74HC4017-Based Sequential LED Flasher with Pushbutton Control
This circuit includes a decade counter (74HC4017) that likely sequences through outputs based on pushbutton inputs. A BC547 transistor is used to drive an LED, indicating one of the counter's states. Diodes and resistors are included for current direction control and limiting, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Audio and video signal switching
  • Data acquisition systems
  • Sensor signal multiplexing
  • Communication systems
  • Test and measurement equipment

Technical Specifications

The following table outlines the key technical specifications of the 74HC4052:

Parameter Value
Supply Voltage (Vcc) 2V to 10V
Input Voltage Range 0V to Vcc
On-State Resistance (Ron) 70Ω (typical at Vcc = 5V)
Propagation Delay 10 ns (typical at Vcc = 5V)
Maximum Operating Frequency 6 MHz (typical at Vcc = 5V)
Operating Temperature Range -40°C to +125°C
Package Type SO16, TSSOP16, and others

Pin Configuration and Descriptions

The 74HC4052 is available in a 16-pin package. The pinout and descriptions are as follows:

Pin No. Pin Name Description
1 Y0 Channel 0 of multiplexer/demultiplexer Y
2 Y1 Channel 1 of multiplexer/demultiplexer Y
3 Y2 Channel 2 of multiplexer/demultiplexer Y
4 Y3 Channel 3 of multiplexer/demultiplexer Y
5 Z0 Channel 0 of multiplexer/demultiplexer Z
6 Z1 Channel 1 of multiplexer/demultiplexer Z
7 Z2 Channel 2 of multiplexer/demultiplexer Z
8 Z3 Channel 3 of multiplexer/demultiplexer Z
9 Vee Negative supply voltage (typically GND for single-supply operation)
10 E Enable pin (active LOW, enables the multiplexer when LOW)
11 S1 Select line 1 (used to select the active channel)
12 S0 Select line 0 (used to select the active channel)
13 Z Common output/input for multiplexer/demultiplexer Z
14 Y Common output/input for multiplexer/demultiplexer Y
15 Vcc Positive supply voltage
16 GND Ground

Usage Instructions

How to Use the 74HC4052 in a Circuit

  1. Power Supply: Connect the Vcc pin to a positive voltage source (2V to 10V) and the GND pin to ground. For single-supply operation, connect Vee to ground.
  2. Enable Control: The E pin is the enable control. Set it to LOW to activate the multiplexer/demultiplexer. When HIGH, the device is disabled, and all channels are disconnected.
  3. Channel Selection: Use the S0 and S1 pins to select the desired channel:
    • S1 = 0, S0 = 0 → Channel 0
    • S1 = 0, S0 = 1 → Channel 1
    • S1 = 1, S0 = 0 → Channel 2
    • S1 = 1, S0 = 1 → Channel 3
  4. Signal Routing: Connect the input signals to the Y0-Y3 or Z0-Z3 pins. The selected signal will be routed to the Y or Z output pin, respectively.

Important Considerations and Best Practices

  • Voltage Levels: Ensure that the input signal voltage does not exceed the supply voltage (Vcc).
  • Decoupling Capacitor: Place a decoupling capacitor (e.g., 0.1 µF) close to the Vcc pin to reduce noise and improve stability.
  • Unused Pins: Tie unused input pins to ground or Vcc to prevent floating inputs.
  • Signal Integrity: For high-frequency signals, minimize trace lengths to reduce signal degradation.

Example: Connecting the 74HC4052 to an Arduino UNO

The 74HC4052 can be easily interfaced with an Arduino UNO for signal multiplexing. Below is an example code snippet:

// Define control pins for the 74HC4052
const int enablePin = 7;  // Connect to pin E (Enable)
const int selectPin0 = 8; // Connect to pin S0
const int selectPin1 = 9; // Connect to pin S1

void setup() {
  // Set control pins as outputs
  pinMode(enablePin, OUTPUT);
  pinMode(selectPin0, OUTPUT);
  pinMode(selectPin1, OUTPUT);

  // Enable the multiplexer
  digitalWrite(enablePin, LOW); // Active LOW
}

void loop() {
  // Example: Select Channel 2 (S1 = 1, S0 = 0)
  digitalWrite(selectPin1, HIGH); // Set S1 to HIGH
  digitalWrite(selectPin0, LOW);  // Set S0 to LOW

  delay(1000); // Wait for 1 second

  // Example: Select Channel 3 (S1 = 1, S0 = 1)
  digitalWrite(selectPin1, HIGH); // Set S1 to HIGH
  digitalWrite(selectPin0, HIGH); // Set S0 to HIGH

  delay(1000); // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Signal Output:

    • Ensure the E pin is set to LOW to enable the multiplexer.
    • Verify that the correct channel is selected using the S0 and S1 pins.
    • Check the power supply connections to Vcc, GND, and Vee.
  2. Signal Distortion:

    • Ensure the input signal voltage is within the specified range (0V to Vcc).
    • Use shorter traces and proper shielding for high-frequency signals.
  3. High On-State Resistance:

    • Verify the supply voltage. The on-state resistance decreases with higher Vcc values (e.g., 70Ω at 5V).
  4. Floating Inputs:

    • Tie unused input pins to ground or Vcc to avoid unpredictable behavior.

FAQs

Q1: Can the 74HC4052 handle bidirectional signals?
Yes, the 74HC4052 supports bidirectional signal routing, making it suitable for both input and output applications.

Q2: What is the maximum signal frequency the 74HC4052 can handle?
The typical maximum operating frequency is 6 MHz at Vcc = 5V. For higher frequencies, signal integrity may degrade.

Q3: Can I use the 74HC4052 with a single power supply?
Yes, connect Vee to ground for single-supply operation. For dual-supply operation, connect Vee to a negative voltage.

Q4: How do I reduce crosstalk between channels?
Minimize trace lengths, use proper grounding, and avoid routing high-frequency signals near each other.

This concludes the documentation for the 74HC4052.
