How to Use MicroSD Card Module: Examples, Pinouts, and Specs

A MicroSD Card Module is a compact electronic board designed to interface MicroSD cards with microcontrollers or other devices. It enables data storage, retrieval, and management, making it an essential component for projects requiring external memory. The module typically includes a voltage regulator and level shifters to ensure compatibility with 3.3V MicroSD cards and 5V microcontroller systems.

• Data logging (e.g., temperature, humidity, or sensor data)
• Storing multimedia files (e.g., images, audio, or video)
• File transfer between microcontrollers and computers
• Firmware or configuration file storage for embedded systems

• Operating Voltage: 3.3V (MicroSD card) / 5V (module input)
• Communication Protocol: SPI (Serial Peripheral Interface)
• Supported Card Types: MicroSD, MicroSDHC (up to 32GB)
• Current Consumption: ~100mA (varies with card activity)
• Dimensions: Typically 20mm x 40mm (varies by manufacturer)

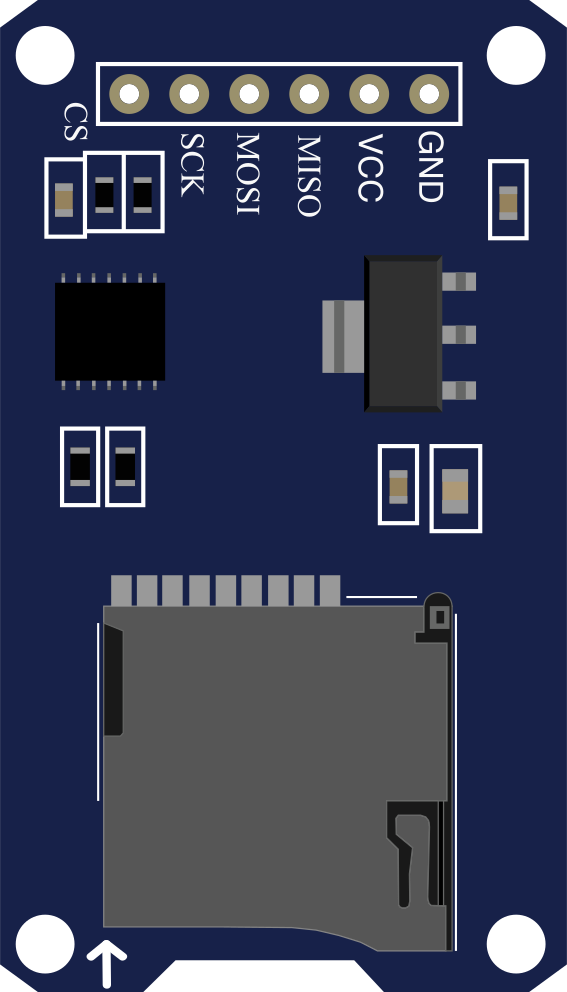

The MicroSD Card Module typically has 6 pins. Below is a standard pinout:

Note: Always refer to the specific module's datasheet for exact pinout details, as they may vary slightly.

1. Connect the Module to a Microcontroller:

   • Connect the VCC pin to the 5V output of the microcontroller.
   • Connect the GND pin to the ground of the microcontroller.
   • Connect the SPI pins (MISO, MOSI, SCK, and CS) to the corresponding SPI pins on the microcontroller.

2. Insert the MicroSD Card:

   • Ensure the MicroSD card is formatted as FAT16 or FAT32, as most libraries support these formats.
   • Insert the card into the module's slot.

3. Install Required Libraries:

   • For Arduino, use the built-in SD library or the more advanced SdFat library for better performance.

4. Write Code to Access the Card:

   • Use the SPI protocol to initialize the card, read/write data, and manage files.

• Voltage Compatibility: Ensure the module's voltage regulator is functioning properly to avoid damaging the MicroSD card.
• Card Formatting: Always format the card as FAT16 or FAT32 before use.
• Pull-Up Resistors: Some modules may require external pull-up resistors on the SPI lines for reliable communication.
• Avoid Hot-Swapping: Do not insert or remove the MicroSD card while the module is powered, as this may corrupt data or damage the card.

Below is an example of how to use the MicroSD Card Module with an Arduino UNO:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the MicroSD Card Module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for Leonardo/Micro boards)
  }

  Serial.println("Initializing SD card...");

  // Initialize the SD card
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present.");
    // Stop further execution if the card initialization fails
    while (1);
  }
  Serial.println("Card initialized successfully.");

  // Create or open a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, MicroSD Card!");
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to example.txt");
  } else {
    Serial.println("Error opening example.txt");
  }
}

void loop() {
  // Nothing to do here
}

Note: Ensure the chipSelect pin matches the pin connected to the CS pin of the module.

1. SD Card Initialization Fails:

   • Cause: Incorrect wiring or incompatible card format.
   • Solution: Double-check the wiring and ensure the card is formatted as FAT16 or FAT32.

2. File Not Found or Cannot Be Opened:

   • Cause: Incorrect file path or file permissions.
   • Solution: Verify the file name and ensure it matches exactly (case-sensitive).

3. Data Corruption:

   • Cause: Removing the card while powered or improper file handling.
   • Solution: Always close files after writing and avoid hot-swapping the card.

4. Module Not Detected:

   • Cause: Faulty module or insufficient power supply.
   • Solution: Test the module with another MicroSD card and ensure a stable 5V power supply.

• Q: Can I use a MicroSDXC card with this module?
  A: Most modules only support MicroSD and MicroSDHC cards (up to 32GB). MicroSDXC cards (exFAT format) are not supported.

• Q: What is the maximum SPI clock speed supported?
  A: Typically, the SPI clock speed should not exceed 25MHz for reliable communication.

• Q: Can I use this module with a 3.3V microcontroller?
  A: Yes, but ensure the module's voltage regulator is bypassed or compatible with 3.3V logic levels.

• Q: How do I format the MicroSD card?
  A: Use tools like the official SD Card Formatter or your operating system's formatting utility. Select FAT16 or FAT32 as the file system.

By following this documentation, you can effectively integrate the MicroSD Card Module into your projects for reliable data storage and retrieval.
