How to Use Relay 1 Channel: Examples, Pinouts, and Specs

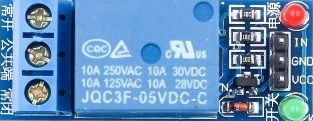

Image of Relay 1 Channel
Cirkit Designer LogoDesign with Relay 1 Channel in Cirkit Designer

Introduction

The Relay 1 Channel (Manufacturer: Arduino, Part ID: MEGA) is an electromagnetic switch that allows you to control a single circuit using a low-power input signal. This component is widely used in applications where electrical isolation and high-power switching are required. It enables the opening or closing of a circuit, making it ideal for controlling high-voltage devices such as lights, motors, and appliances using microcontrollers like the Arduino.

Explore Projects Built with Relay 1 Channel

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
DC Motor Control Using 1-Channel Relay and DC Power Source
Image of h: A project utilizing Relay 1 Channel in a practical application
This circuit controls a DC motor using a 1-channel relay. The relay is powered by a DC power source, and it switches the motor on and off by connecting or disconnecting the motor's power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Controlled Relay Module
Image of New: A project utilizing Relay 1 Channel in a practical application
This circuit uses an IR sensor to control a 1 Channel 5V Relay Module, which is powered by a 9V battery. The IR sensor detects an object and sends a signal to the relay module to switch its state, enabling or disabling the connected load.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled 4-Channel Relay Module
Image of wifi esp32: A project utilizing Relay 1 Channel in a practical application
This circuit connects an ESP32 microcontroller to a 4-channel 5V relay module. The ESP32's digital pins (D19, D21, D22, D23) are used to control the relay channels (IN1, IN2, IN3, IN4) respectively. The circuit is designed to allow the ESP32 to switch external devices on and off via the relay module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Relay-Controlled LED Circuit
Image of Relay Simulation Demo: A project utilizing Relay 1 Channel in a practical application
This circuit utilizes an Arduino UNO to control a 1 Channel 5V Relay Module, which in turn can switch a load on and off. The relay is activated by a digital signal from the Arduino on pin D2, and an LED is connected to indicate the relay's status, with a resistor limiting the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Relay 1 Channel

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of h: A project utilizing Relay 1 Channel in a practical application
DC Motor Control Using 1-Channel Relay and DC Power Source
This circuit controls a DC motor using a 1-channel relay. The relay is powered by a DC power source, and it switches the motor on and off by connecting or disconnecting the motor's power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of New: A project utilizing Relay 1 Channel in a practical application
Battery-Powered IR Sensor Controlled Relay Module
This circuit uses an IR sensor to control a 1 Channel 5V Relay Module, which is powered by a 9V battery. The IR sensor detects an object and sends a signal to the relay module to switch its state, enabling or disabling the connected load.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wifi esp32: A project utilizing Relay 1 Channel in a practical application
ESP32-Controlled 4-Channel Relay Module
This circuit connects an ESP32 microcontroller to a 4-channel 5V relay module. The ESP32's digital pins (D19, D21, D22, D23) are used to control the relay channels (IN1, IN2, IN3, IN4) respectively. The circuit is designed to allow the ESP32 to switch external devices on and off via the relay module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Relay Simulation Demo: A project utilizing Relay 1 Channel in a practical application
Arduino Relay-Controlled LED Circuit
This circuit utilizes an Arduino UNO to control a 1 Channel 5V Relay Module, which in turn can switch a load on and off. The relay is activated by a digital signal from the Arduino on pin D2, and an LED is connected to indicate the relay's status, with a resistor limiting the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation (e.g., controlling lights or fans)
  • Industrial control systems
  • Motor control
  • IoT projects
  • Switching high-power devices with low-power microcontroller signals

Technical Specifications

The Relay 1 Channel is designed to interface seamlessly with microcontrollers like the Arduino MEGA. Below are its key technical details:

Key Technical Details

Parameter Value
Operating Voltage 5V DC
Trigger Voltage 3.3V to 5V DC
Maximum Switching Voltage 250V AC / 30V DC
Maximum Switching Current 10A
Relay Type SPDT (Single Pole Double Throw)
Isolation Optocoupler-based isolation
Dimensions 50mm x 26mm x 18mm
Weight ~20g

Pin Configuration and Descriptions

Pin Name Description
VCC Connect to the 5V power supply from the microcontroller or external source.
GND Ground connection.
IN Signal input pin to control the relay (3.3V or 5V logic level).
COM Common terminal for the relay switch.
NO Normally Open terminal (connected to COM when the relay is activated).
NC Normally Closed terminal (connected to COM when the relay is deactivated).

Usage Instructions

How to Use the Relay in a Circuit

  1. Power the Relay Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
  2. Control Signal: Connect the IN pin to a digital output pin of your Arduino MEGA or another microcontroller.
  3. Load Connection:
    • Connect the device you want to control (e.g., a light bulb) to the COM and NO terminals if you want the device to turn on when the relay is activated.
    • Use the COM and NC terminals if you want the device to turn off when the relay is activated.
  4. Code the Microcontroller: Write a program to send a HIGH or LOW signal to the IN pin to activate or deactivate the relay.

Important Considerations and Best Practices

  • Isolation: Ensure proper electrical isolation between the low-voltage control circuit and the high-voltage load circuit.
  • Flyback Diode: If you're controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
  • Power Ratings: Do not exceed the relay's maximum voltage and current ratings to avoid damage.
  • Noise Suppression: Use capacitors or snubber circuits to suppress electrical noise when switching high-power loads.

Example Code for Arduino MEGA

// Example code to control a 1-channel relay with Arduino MEGA
// Connect the relay's IN pin to digital pin 7 on the Arduino MEGA

#define RELAY_PIN 7  // Define the pin connected to the relay's IN pin

void setup() {
  pinMode(RELAY_PIN, OUTPUT);  // Set the relay pin as an output
  digitalWrite(RELAY_PIN, LOW);  // Ensure the relay is off at startup
}

void loop() {
  digitalWrite(RELAY_PIN, HIGH);  // Turn the relay on
  delay(1000);  // Keep the relay on for 1 second
  digitalWrite(RELAY_PIN, LOW);  // Turn the relay off
  delay(1000);  // Keep the relay off for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Activating:

    • Cause: Insufficient voltage or current to the IN pin.
    • Solution: Ensure the control signal is within the 3.3V to 5V range and the power supply is stable.
  2. Load Not Switching:

    • Cause: Incorrect wiring of the load to the relay terminals.
    • Solution: Double-check the connections to the COM, NO, and NC terminals.
  3. Relay Clicking but No Output:

    • Cause: Faulty relay or damaged contacts.
    • Solution: Test the relay with a multimeter or replace it if necessary.
  4. Microcontroller Resetting When Relay Activates:

    • Cause: Voltage spikes or insufficient power supply.
    • Solution: Add a flyback diode across the load and ensure the power supply can handle the relay's current draw.

FAQs

Q: Can I use the relay with a 3.3V microcontroller like the Arduino Due?
A: Yes, the relay can be triggered with a 3.3V signal, but ensure the VCC pin is powered with 5V.

Q: Is the relay suitable for switching DC motors?
A: Yes, but you should use a flyback diode across the motor terminals to protect the relay from voltage spikes.

Q: Can I control multiple relays with one Arduino MEGA?
A: Yes, the Arduino MEGA has multiple digital pins, allowing you to control several relays simultaneously.

Q: What is the lifespan of the relay?
A: The relay has a mechanical lifespan of approximately 100,000 operations under normal conditions.
