How to Use Régulateur de tension: Examples, Pinouts, and Specs

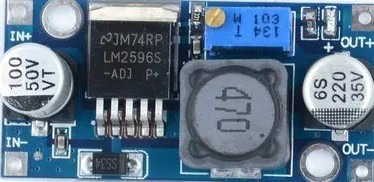

The LM2596 is a step-down (buck) voltage regulator designed to provide a stable and constant output voltage, even when the input voltage or load conditions vary. This regulator is highly efficient and capable of delivering up to 3A of output current, making it suitable for a wide range of applications. It is commonly used in power supply circuits, battery chargers, and embedded systems.

• DC-DC power conversion for embedded systems
• Battery-powered devices
• Adjustable power supplies
• LED drivers
• Industrial automation systems

The LM2596 voltage regulator is available in both fixed and adjustable output voltage versions. Below are the key technical details:

The LM2596 typically comes in a 5-pin package. Below is the pinout description:

1. Input Voltage: Ensure the input voltage is within the range of 4.5V to 40V. Use a capacitor (e.g., 100µF) across the input to filter noise.
2. Output Voltage: For the adjustable version, use a resistor divider network connected to the feedback pin to set the desired output voltage. For fixed versions, no external resistors are needed.
3. Output Capacitor: Place a capacitor (e.g., 220µF) across the output to stabilize the voltage and reduce ripple.
4. Inductor Selection: Choose an inductor with a suitable current rating (e.g., 33µH to 100µH) based on the desired output voltage and current.
5. Diode: Use a Schottky diode (e.g., 1N5822) to handle the switching current.

• Always use decoupling capacitors on both the input and output to minimize noise and voltage spikes.
• Ensure proper heat dissipation by using a heatsink or mounting the regulator on a PCB with good thermal management.
• Avoid exceeding the maximum input voltage or output current ratings to prevent damage.
• For adjustable versions, calculate the output voltage using the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ] where ( V_{REF} = 1.23V ).

The LM2596 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and Arduino code:

1. Connect the input of the LM2596 to a 12V DC power source.
2. Set the output voltage to 5V using the adjustable feedback pin.
3. Connect the output of the LM2596 to the Arduino UNO's 5V pin and GND.

// Example code to blink an LED using Arduino UNO powered by LM2596
const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. Output Voltage is Incorrect

   • Cause: Incorrect resistor values in the feedback network (adjustable version).
   • Solution: Double-check the resistor values and recalculate the output voltage.

2. Excessive Heat

   • Cause: High input voltage or current draw exceeding the regulator's capacity.
   • Solution: Use a heatsink or reduce the input voltage/current.

3. No Output Voltage

   • Cause: Faulty connections or damaged components.
   • Solution: Verify all connections and replace damaged components.

4. High Output Ripple

   • Cause: Insufficient output capacitance or poor-quality capacitors.
   • Solution: Use low-ESR capacitors and ensure proper placement near the regulator.

• Can the LM2596 be used for AC input? No, the LM2596 is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the regulator.

• What is the maximum output current? The LM2596 can deliver up to 3A, but ensure proper heat dissipation to avoid thermal shutdown.

• Can I use the LM2596 without a heatsink? Yes, but only for low current applications. For higher currents, a heatsink is recommended.

• How do I calculate the inductor value? Refer to the datasheet for detailed guidelines on selecting the inductor based on your input/output voltage and current requirements.
