How to Use DHT22: Examples, Pinouts, and Specs

Introduction

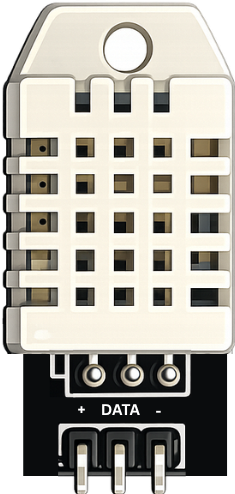

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It features a single-wire digital interface, making it easy to connect to microcontrollers like Arduino and Raspberry Pi. The DHT22 is widely used in weather stations, environmental monitoring systems, and HVAC applications due to its reliability and ease of use.

Explore Projects Built with DHT22

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

DHT22 Temperature and Humidity Monitor with I2C LCD Display

This circuit utilizes a DHT22 temperature and humidity sensor connected to an Arduino UNO, which processes the sensor data. The readings are displayed on a 16x2 I2C LCD, allowing for real-time monitoring of environmental conditions. A resistor is included in the circuit to ensure proper signal integrity from the DHT22 sensor.

Open Project in Cirkit Designer

Arduino UNO Based DHT22 Temperature and Humidity Sensor

This circuit consists of an Arduino UNO microcontroller connected to a DHT22 temperature and humidity sensor. The DHT22 sensor is powered by the Arduino's 5V output through a 4.7k Ohm resistor, and its data pin is connected to the digital pin D2 of the Arduino. The embedded code on the Arduino reads the temperature and humidity values from the DHT22 sensor and outputs them to the serial monitor at regular intervals.

Open Project in Cirkit Designer

Arduino UNO-Based Temperature and Humidity Sensor with DHT22

This circuit uses an Arduino UNO to read data from a DHT22 temperature and humidity sensor. The DHT22 is powered by the Arduino's 3.3V and GND pins, with its data output connected to the Arduino's digital pin D2 through a 1.5k Ohm pull-up resistor.

Open Project in Cirkit Designer

Arduino UNO and DHT22 Temperature and Humidity Sensor with Serial Monitoring

This circuit uses an Arduino UNO to interface with a DHT22 temperature and humidity sensor. The Arduino reads data from the DHT22 sensor and outputs the temperature and humidity readings to the Serial Monitor. The DHT22 is powered by the Arduino's 5V and GND pins, and its data pin is connected to digital pin 2 on the Arduino.

Open Project in Cirkit Designer

Common Applications:

• Weather monitoring systems
• Indoor air quality monitoring
• Greenhouse and agricultural automation
• HVAC (Heating, Ventilation, and Air Conditioning) systems
• IoT (Internet of Things) projects

Technical Specifications

The DHT22 sensor is designed for precision and ease of integration. Below are its key technical details:

Pin Configuration

The DHT22 has four pins, but only three are typically used in most applications. Below is the pinout:

Note: A pull-up resistor (typically 10kΩ) is required between the DATA pin and VCC for proper communication.

Usage Instructions

Connecting the DHT22 to a Circuit

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and VCC.
3. Timing Considerations: The DHT22 requires a 2-second interval between readings to ensure accurate data.

Example: Using the DHT22 with Arduino UNO

Below is an example of how to use the DHT22 sensor with an Arduino UNO. This code reads temperature and humidity values and displays them on the Serial Monitor.

Arduino Code:

#include "DHT.h"

// Define the DHT sensor type and pin
#define DHTPIN 2      // Pin connected to the DATA pin of DHT22
#define DHTTYPE DHT22 // Specify the sensor type (DHT22)

DHT dht(DHTPIN, DHTTYPE); // Initialize the DHT sensor

void setup() {
  Serial.begin(9600); // Start serial communication at 9600 baud
  dht.begin();        // Initialize the DHT sensor
  Serial.println("DHT22 Sensor Initialized");
}

void loop() {
  delay(2000); // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

Best Practices:

• Avoid Frequent Readings: The DHT22 has a sampling period of 2 seconds. Reading data more frequently may result in inaccurate values.
• Stable Power Supply: Ensure the sensor is powered with a stable voltage (3.3V or 5V) to avoid erratic readings.
• Proper Pull-Up Resistor: Use a 10kΩ pull-up resistor on the DATA pin to ensure reliable communication.

Troubleshooting and FAQs

Common Issues:

1. No Data or Erratic Readings:

   • Cause: Missing or incorrect pull-up resistor on the DATA pin.
   • Solution: Ensure a 10kΩ pull-up resistor is connected between the DATA pin and VCC.

2. "Failed to read from DHT sensor!" Error:

   • Cause: Loose connections or incorrect wiring.
   • Solution: Double-check all connections and ensure the DATA pin is connected to the correct microcontroller pin.

3. Inaccurate Readings:

   • Cause: Reading data too frequently.
   • Solution: Ensure a delay of at least 2 seconds between readings.

4. Sensor Not Responding:

   • Cause: Insufficient power supply or damaged sensor.
   • Solution: Verify the power supply voltage and replace the sensor if necessary.

FAQs:

Q: Can the DHT22 be used outdoors?
A: Yes, but it should be housed in a protective enclosure to shield it from direct sunlight, rain, and dust.

Q: What is the maximum cable length for the DHT22?
A: The maximum cable length depends on the pull-up resistor value and the environment. Typically, it works reliably up to 20 meters with a 10kΩ resistor.

Q: Can I use the DHT22 with a 3.3V microcontroller?
A: Yes, the DHT22 operates within a voltage range of 3.3V to 6V, making it compatible with 3.3V microcontrollers.

Q: How do I improve accuracy in my readings?
A: Place the sensor in a stable environment, avoid rapid temperature changes, and ensure proper ventilation around the sensor.

By following this documentation, you can effectively integrate the DHT22 sensor into your projects and troubleshoot common issues with ease.
