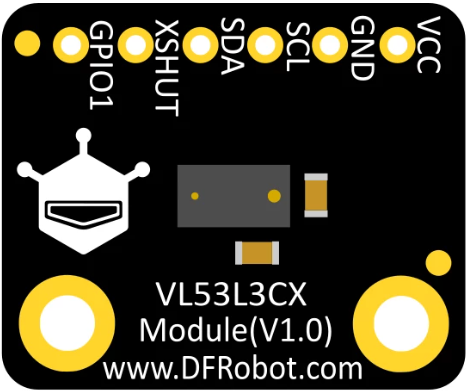

Image of VL53L3CX
Cirkit Designer LogoDesign with VL53L3CX in Cirkit Designer

Introduction

The VL53L3CX is a state-of-the-art time-of-flight (ToF) distance sensor manufactured by Laser Sensor. It uses advanced laser technology to measure distances with high accuracy and reliability. The sensor can detect objects up to 4 meters away and supports multi-target detection, making it ideal for a wide range of applications.

Explore Projects Built with VL53L3CX

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO with A9G GSM/GPRS and Dual VL53L1X Distance Sensors
Image of TED CIRCUIT : A project utilizing VL53L3CX in a practical application
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS/BDS module and two VL53L1X time-of-flight distance sensors. The A9G module is connected to the Arduino via serial communication for GPS and GSM functionalities, while both VL53L1X sensors are connected through I2C with shared SDA and SCL lines and individual SHUT pins for selective sensor activation. The Arduino is programmed to control these peripherals, although the specific functionality is not detailed in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
A-Star 32U4 Mini Controlled Servo with VL53L8CX Time-of-Flight Distance Sensing
Image of Servo con distance sensor: A project utilizing VL53L3CX in a practical application
This circuit features an A-Star 32U4 Mini microcontroller connected to a VL53L8CX Time-of-Flight distance sensor and a servo motor. The microcontroller powers both the sensor and the servo, and it is configured to communicate with the sensor via I2C (using pins 2 and 3 for SDA and SCL, respectively) and to control the servo via a PWM signal on pin 10. The purpose of the circuit is likely to measure distances and respond with movements of the servo based on the sensor readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
Image of LRCM PHASE 2 BASIC: A project utilizing VL53L3CX in a practical application
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Multi-Sensor System with Distance, Magnetometer, and Camera Integration
Image of Junior Design - Sensors: A project utilizing VL53L3CX in a practical application
This circuit features an Arduino Mega 2560 microcontroller interfaced with multiple VL53L0X distance sensors, an OV7725 camera module, and an Adafruit LIS3MDL triple-axis magnetometer. The Arduino reads data from these sensors and the camera, likely for a robotics or environmental sensing application, and processes the data for further use or transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with VL53L3CX

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TED CIRCUIT : A project utilizing VL53L3CX in a practical application
Arduino UNO with A9G GSM/GPRS and Dual VL53L1X Distance Sensors
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS/BDS module and two VL53L1X time-of-flight distance sensors. The A9G module is connected to the Arduino via serial communication for GPS and GSM functionalities, while both VL53L1X sensors are connected through I2C with shared SDA and SCL lines and individual SHUT pins for selective sensor activation. The Arduino is programmed to control these peripherals, although the specific functionality is not detailed in the provided code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Servo con distance sensor: A project utilizing VL53L3CX in a practical application
A-Star 32U4 Mini Controlled Servo with VL53L8CX Time-of-Flight Distance Sensing
This circuit features an A-Star 32U4 Mini microcontroller connected to a VL53L8CX Time-of-Flight distance sensor and a servo motor. The microcontroller powers both the sensor and the servo, and it is configured to communicate with the sensor via I2C (using pins 2 and 3 for SDA and SCL, respectively) and to control the servo via a PWM signal on pin 10. The purpose of the circuit is likely to measure distances and respond with movements of the servo based on the sensor readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LRCM PHASE 2 BASIC: A project utilizing VL53L3CX in a practical application
Cellular-Enabled IoT Device with Real-Time Clock and Power Management
This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Junior Design - Sensors: A project utilizing VL53L3CX in a practical application
Arduino Mega 2560-Based Multi-Sensor System with Distance, Magnetometer, and Camera Integration
This circuit features an Arduino Mega 2560 microcontroller interfaced with multiple VL53L0X distance sensors, an OV7725 camera module, and an Adafruit LIS3MDL triple-axis magnetometer. The Arduino reads data from these sensors and the camera, likely for a robotics or environmental sensing application, and processes the data for further use or transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics for obstacle detection and navigation
  • Drones for altitude measurement and collision avoidance
  • Industrial automation for object detection and positioning
  • Smart home devices for presence detection
  • Consumer electronics for gesture recognition

Technical Specifications

The VL53L3CX is designed to deliver precise distance measurements in a compact form factor. Below are its key technical details:

Key Specifications

Parameter Value
Operating Voltage 2.6V to 3.5V
Communication Interface I²C (up to 1 MHz)
Measurement Range 0.1m to 4m
Accuracy ±5mm (typical)
Field of View (FoV) 27°
Multi-Target Detection Yes
Operating Temperature -20°C to +85°C
Power Consumption 20mW (typical)
Dimensions 4.4mm x 2.4mm x 1.0mm

Pin Configuration

The VL53L3CX has a simple pinout for easy integration into circuits. Below is the pin configuration:

Pin Name Pin Number Description
GND 1 Ground
VIN 2 Power supply (2.6V to 3.5V)
SDA 3 I²C data line
SCL 4 I²C clock line
GPIO1 5 Interrupt or shutdown control
XSHUT 6 Shutdown pin (active low)

Usage Instructions

The VL53L3CX is straightforward to use in a circuit, especially with microcontrollers like the Arduino UNO. Below are the steps to get started:

Connecting the VL53L3CX to an Arduino UNO

  1. Power the Sensor: Connect the VIN pin to the Arduino's 3.3V pin and the GND pin to the Arduino's GND.
  2. I²C Communication: Connect the SDA pin to the Arduino's A4 pin and the SCL pin to the Arduino's A5 pin.
  3. Optional Pins: The XSHUT pin can be connected to a digital pin on the Arduino for enabling/disabling the sensor. The GPIO1 pin can be used for interrupt handling.

Sample Arduino Code

Below is an example of how to use the VL53L3CX with an Arduino UNO. This code reads the distance measured by the sensor and prints it to the Serial Monitor.

#include <Wire.h>
#include <VL53L3CX.h> // Include the VL53L3CX library

VL53L3CX sensor; // Create a sensor object

void setup() {
  Serial.begin(9600); // Initialize serial communication
  Wire.begin();       // Initialize I²C communication

  // Initialize the VL53L3CX sensor
  if (!sensor.begin()) {
    Serial.println("Failed to initialize VL53L3CX!");
    while (1); // Halt if initialization fails
  }

  Serial.println("VL53L3CX initialized successfully.");
}

void loop() {
  // Read the distance in millimeters
  int distance = sensor.readRange();

  // Check for errors
  if (sensor.timeoutOccurred()) {
    Serial.println("Sensor timeout!");
  } else {
    // Print the distance to the Serial Monitor
    Serial.print("Distance: ");
    Serial.print(distance);
    Serial.println(" mm");
  }

  delay(100); // Wait 100ms before the next reading
}

Important Considerations

  • Power Supply: Ensure the sensor is powered within its operating voltage range (2.6V to 3.5V). Using 5V directly may damage the sensor.
  • I²C Pull-Up Resistors: If your circuit does not already include pull-up resistors on the I²C lines, add 4.7kΩ resistors between SDA and 3.3V, and SCL and 3.3V.
  • Ambient Light: Excessive ambient light may affect the sensor's accuracy. Use the sensor in controlled lighting conditions for best results.
  • FoV Considerations: The sensor has a 27° field of view. Ensure no unwanted objects are within this range to avoid interference.

Troubleshooting and FAQs

Common Issues

  1. Sensor Not Detected

    • Cause: Incorrect I²C wiring or address mismatch.
    • Solution: Verify the connections and ensure the I²C address matches the library's default (0x52).
  2. Inaccurate Distance Measurements

    • Cause: Reflective or transparent surfaces in the sensor's path.
    • Solution: Avoid using the sensor with highly reflective or transparent objects.
  3. Sensor Timeout

    • Cause: Communication issues or excessive distance.
    • Solution: Check the wiring and ensure the object is within the 4m range.
  4. Interference from Ambient Light

    • Cause: Strong ambient light sources near the sensor.
    • Solution: Shield the sensor from direct light or use it in controlled environments.

FAQs

Q1: Can the VL53L3CX detect multiple objects simultaneously?
Yes, the sensor supports multi-target detection, allowing it to measure distances to multiple objects within its field of view.

Q2: What is the maximum range of the VL53L3CX?
The sensor can measure distances up to 4 meters under optimal conditions.

Q3: Can I use the VL53L3CX with a 5V microcontroller?
Yes, but you must use a level shifter to step down the I²C signals to 3.3V to avoid damaging the sensor.

Q4: How do I reduce noise in the measurements?
Use averaging techniques in your code or operate the sensor in a stable environment to minimize noise.

By following this documentation, you can effectively integrate the VL53L3CX into your projects and achieve accurate distance measurements.
