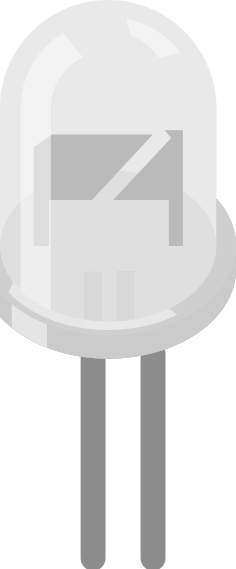

Image of LEDs
Cirkit Designer LogoDesign with LEDs in Cirkit Designer

Introduction

Light Emitting Diodes (LEDs) are semiconductor devices that emit light when an electric current passes through them. They are energy-efficient, compact, and have a long lifespan, making them a popular choice for a wide range of applications. LEDs are commonly used as indicators in electronic devices, in digital displays, for decorative lighting, and in general-purpose illumination systems.

Explore Projects Built with LEDs

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing LEDs in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Indicator Circuit with Rocker Switches
Image of Intern 1: A project utilizing LEDs in a practical application
This circuit consists of three LEDs (red, green, and yellow) each connected in series with a 1k Ohm resistor and controlled by individual rocker switches. The LEDs share a common ground with a 9V battery, and the switches are connected to the positive terminal of the battery, allowing each LED to be turned on or off independently.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Dual Switch Control
Image of simple traffic light: A project utilizing LEDs in a practical application
This circuit features a battery-powered array of red and green LEDs, each string controlled by a toggle switch. A rocker switch is used to manage the overall power supply, potentially allowing the user to select between the LED strings or turn them off. The circuit lacks microcontroller functionality, indicating a simple, direct control lighting system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Indicator Circuit with Rocker Switch
Image of battari test: A project utilizing LEDs in a practical application
This circuit is a simple LED array powered by a 9V battery and controlled by a rocker switch. It includes multiple LEDs (red, green, and yellow) connected in series with resistors to limit current, ensuring safe operation of the LEDs when the switch is turned on.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LEDs

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing LEDs in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Intern 1: A project utilizing LEDs in a practical application
Battery-Powered LED Indicator Circuit with Rocker Switches
This circuit consists of three LEDs (red, green, and yellow) each connected in series with a 1k Ohm resistor and controlled by individual rocker switches. The LEDs share a common ground with a 9V battery, and the switches are connected to the positive terminal of the battery, allowing each LED to be turned on or off independently.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of simple traffic light: A project utilizing LEDs in a practical application
Battery-Powered LED Array with Dual Switch Control
This circuit features a battery-powered array of red and green LEDs, each string controlled by a toggle switch. A rocker switch is used to manage the overall power supply, potentially allowing the user to select between the LED strings or turn them off. The circuit lacks microcontroller functionality, indicating a simple, direct control lighting system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of battari test: A project utilizing LEDs in a practical application
Battery-Powered LED Indicator Circuit with Rocker Switch
This circuit is a simple LED array powered by a 9V battery and controlled by a rocker switch. It includes multiple LEDs (red, green, and yellow) connected in series with resistors to limit current, ensuring safe operation of the LEDs when the switch is turned on.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for standard LEDs. Note that specific values may vary depending on the type and manufacturer.

Key Technical Details

  • Forward Voltage (Vf): Typically 1.8V to 3.3V (varies by color)
    • Red: ~1.8V to 2.2V
    • Green: ~2.0V to 3.0V
    • Blue/White: ~3.0V to 3.3V
  • Forward Current (If): 10mA to 30mA (20mA is common for standard LEDs)
  • Power Dissipation: Typically 60mW to 100mW
  • Viewing Angle: 20° to 120° (varies by design)
  • Luminous Intensity: Measured in millicandela (mcd), varies by type
  • Polarity: Anode (+) and Cathode (-)

Pin Configuration and Descriptions

Standard LEDs have two pins:

Pin Name Description Identification Method
Anode Positive terminal (+) Longer leg of the LED
Cathode Negative terminal (-) Shorter leg or flat edge on case

Usage Instructions

How to Use LEDs in a Circuit

  1. Determine the Forward Voltage and Current:

    • Check the LED's datasheet for its forward voltage (Vf) and recommended forward current (If).
  2. Calculate the Resistor Value:

    • To prevent damage, use a current-limiting resistor in series with the LED.
    • Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:
      • (V_{supply}) is the supply voltage
      • (V_f) is the forward voltage of the LED
      • (I_f) is the forward current (in amperes)
  3. Connect the LED:

    • Connect the anode (+) to the positive side of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  4. Test the Circuit:

    • Power the circuit and ensure the LED lights up. If it does not, check the polarity and connections.

Important Considerations and Best Practices

  • Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
  • Use a Resistor: Always use a current-limiting resistor to avoid exceeding the LED's maximum current rating.
  • Heat Management: For high-power LEDs, ensure proper heat dissipation using heatsinks or thermal management techniques.
  • Avoid Overvoltage: Exceeding the forward voltage can damage the LED.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode of the LED to Arduino pin 13 through a 220Ω resistor.
  • Connect the cathode of the LED to the GND pin of the Arduino.

Arduino Code

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure a 220Ω resistor is used to limit current to the LED.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity or no current-limiting resistor.
    • Solution: Verify the anode and cathode connections. Ensure a resistor is in series.
  2. LED is Dim:

    • Cause: Resistor value too high or insufficient supply voltage.
    • Solution: Recalculate the resistor value and check the supply voltage.
  3. LED Burns Out:

    • Cause: Excessive current or voltage.
    • Solution: Use a resistor with the correct value to limit current.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and ensure all connections are secure.

FAQs

  • Q: Can I connect an LED directly to a battery?
    A: No, always use a current-limiting resistor to prevent damage to the LED.

  • Q: How do I identify the anode and cathode of an LED?
    A: The anode is the longer leg, and the cathode is the shorter leg or the side with a flat edge on the casing.

  • Q: Can I use LEDs with AC power?
    A: Standard LEDs are designed for DC power. For AC applications, use a rectifier circuit or specialized AC LEDs.

  • Q: What happens if I reverse the polarity of an LED?
    A: The LED will not light up, but it typically won't be damaged unless the reverse voltage exceeds its maximum rating.

By following these guidelines, you can effectively use LEDs in your electronic projects!
