How to Use esp32: Examples, Pinouts, and Specs

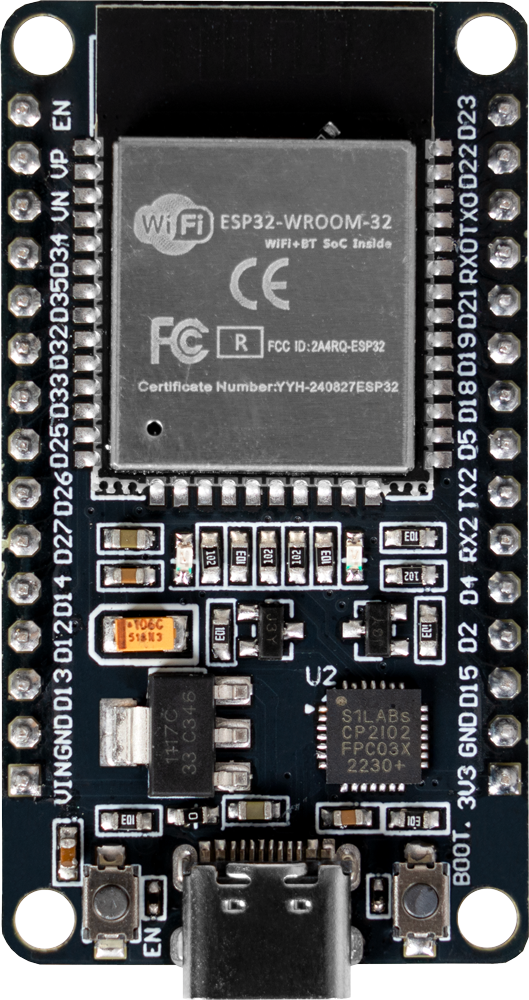

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful microcontroller for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and drones
  • Industrial automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

Key Technical Details

Specification Value
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wi-Fi 802.11 b/g/n
Bluetooth Bluetooth 4.2 and BLE
Operating Voltage 3.3V
GPIO Pins 34
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP32 has a variety of pins for different functionalities. Below is a table summarizing the most commonly used pins:

Pin Name Functionality Description
GPIO0 Input/Output, Boot Mode Selection Used for boot mode selection during startup.
GPIO2 Input/Output, ADC, PWM, Touch General-purpose pin with multiple functions.
GPIO12 Input/Output, ADC, PWM, Touch General-purpose pin with ADC and touch input.
GPIO13 Input/Output, ADC, PWM, Touch General-purpose pin with ADC and touch input.
GPIO15 Input/Output, ADC, PWM, Touch General-purpose pin with ADC and touch input.
GPIO16 Input/Output General-purpose pin.
GPIO17 Input/Output General-purpose pin.
EN Enable Resets the chip when pulled low.
3V3 Power Provides 3.3V output.
GND Ground Ground connection.

Note: The exact pin configuration may vary depending on the ESP32 module or development board you are using (e.g., ESP32-WROOM-32, ESP32-WROVER).

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: The ESP32 operates at 3.3V. Ensure your power supply provides a stable 3.3V to avoid damaging the chip. Many development boards include a voltage regulator for 5V input.
  2. Connecting to Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Be mindful of the pin's voltage and current limits.
  3. Programming the ESP32: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Use a USB-to-serial converter for uploading code.

Important Considerations and Best Practices

  • Voltage Levels: Avoid applying voltages higher than 3.3V to the GPIO pins.
  • Boot Mode: Ensure GPIO0 is pulled low during boot to enter programming mode.
  • Power Consumption: Use the ESP32's deep sleep mode to reduce power consumption in battery-powered applications.
  • Antenna Placement: For optimal Wi-Fi and Bluetooth performance, ensure the onboard antenna is not obstructed by metal or other materials.

Example Code for Arduino IDE

Below is an example of how to use the ESP32 to connect to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = 2; // GPIO2 is often used for onboard LEDs

void setup() {
  pinMode(ledPin, OUTPUT); // Set GPIO2 as an output pin
  Serial.begin(115200);    // Initialize serial communication

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Tip: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network's credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi

    • Cause: Incorrect SSID or password.
    • Solution: Double-check your Wi-Fi credentials in the code.
  2. Upload Fails in Arduino IDE

    • Cause: Incorrect board or port selected.
    • Solution: Ensure the correct ESP32 board is selected under Tools > Board and the correct COM port is selected.
  3. ESP32 Keeps Resetting

    • Cause: Insufficient power supply.
    • Solution: Use a stable 3.3V power source or a development board with a built-in voltage regulator.
  4. GPIO Pin Not Working

    • Cause: Pin conflict or incorrect configuration.
    • Solution: Verify the pin's functionality and ensure it is not being used for another purpose (e.g., boot mode).

FAQs

  • Q: Can the ESP32 be powered with 5V?
    A: Yes, if you are using a development board with a built-in voltage regulator. The ESP32 chip itself requires 3.3V.

  • Q: How do I reset the ESP32?
    A: Press the "EN" button on the development board or pull the EN pin low.

  • Q: Can the ESP32 handle multiple tasks simultaneously?
    A: Yes, the ESP32 supports FreeRTOS, allowing you to run multiple tasks concurrently.

  • Q: Is the ESP32 compatible with Arduino libraries?
    A: Yes, many Arduino libraries are compatible with the ESP32, but some may require modifications.

This documentation provides a comprehensive overview of the ESP32, helping you get started with your projects and troubleshoot common issues effectively.
