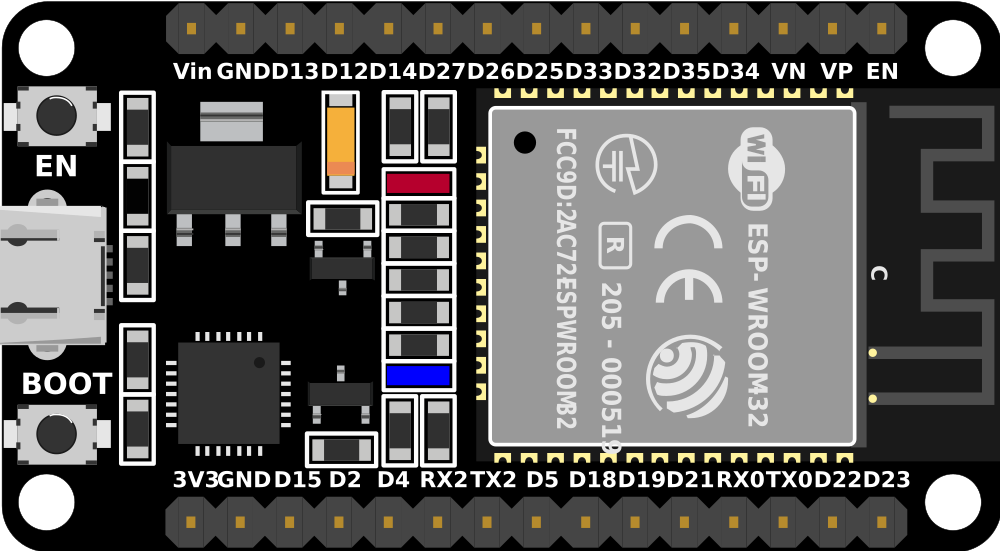

Image of ESP32 devkit v1
Cirkit Designer LogoDesign with ESP32 devkit v1 in Cirkit Designer

Introduction

The ESP32 DevKit V1, manufactured by Espressif, is a versatile development board built around the ESP32 chip. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. The board is compact, powerful, and supports a wide range of peripherals, making it suitable for both beginners and experienced developers.
