Introduction

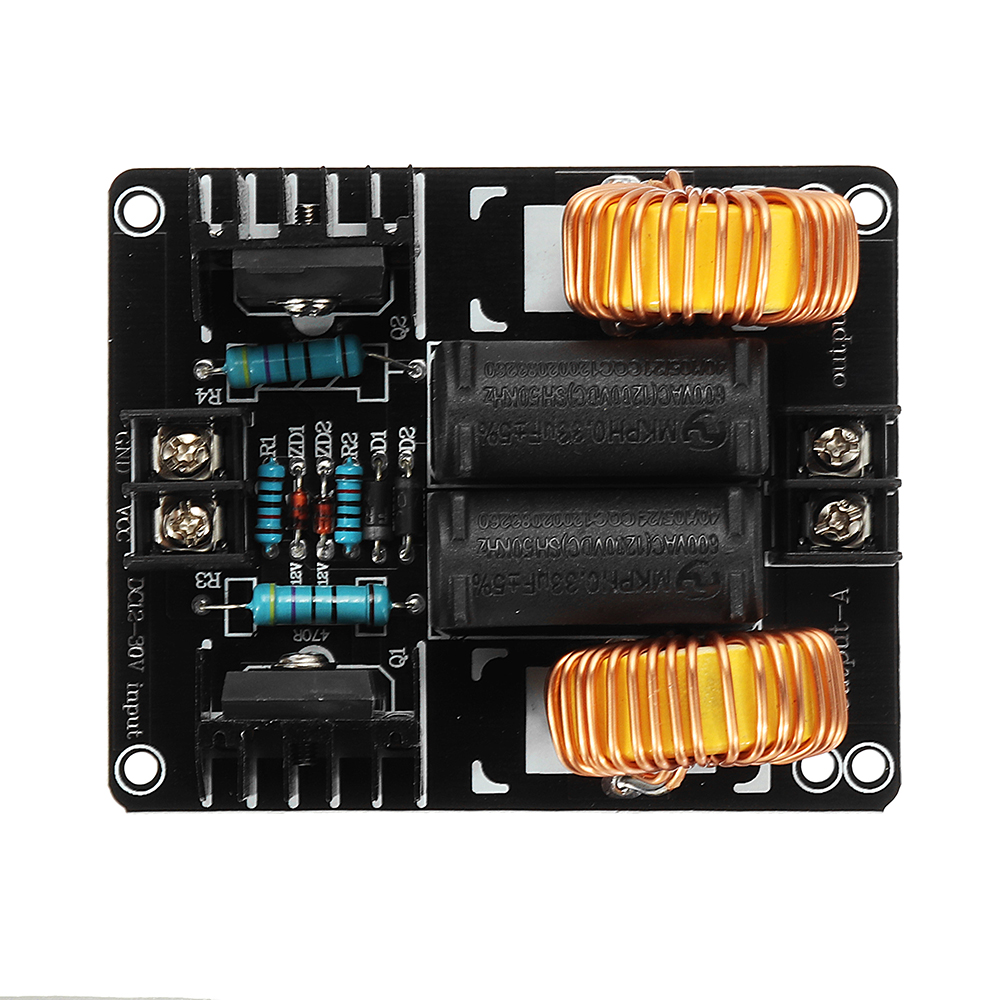

The ZVS Induction Board 1000W 20A by Elecbee is a high-efficiency induction heating module designed for applications requiring precise and powerful heating. Utilizing Zero Voltage Switching (ZVS) technology, this board minimizes switching losses, ensuring optimal performance and energy efficiency. It is capable of delivering up to 1000 watts of power at a maximum current of 20 amps, making it suitable for heating metals, melting small quantities of metal, or other conductive material heating tasks.

Explore Projects Built with ZVS Induction Board 1000w 20A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

CNC Spindle Control System with VFD and Mach 3 Breakout Board

This circuit controls a 500W spindle motor using a VFD (Variable Frequency Drive). The CNC Mach 3 Breakout Board provides a 10V signal to the VFD for speed control, and a potentiometer is connected to the VFD for manual speed adjustment. An AC supply powers the VFD, which in turn drives the spindle motor, and a rocker switch is used to turn the motor on and off.

Open Project in Cirkit Designer

ESP32-Based Smart Power Monitoring and Control System with Wi-Fi Connectivity

This circuit is a smart power monitoring and control system using an ESP32 microcontroller. It features multiple sensors and components, including PZEM-004T AC modules for voltage and current measurement, DS18B20 temperature sensors, an LCD for display, and solid-state relays for controlling power outlets. The system is integrated with Blynk for remote monitoring and control, and includes pushbuttons for local interaction.

Open Project in Cirkit Designer

ESP32C3-Based Smart AC Light Controller with Voltage Sensing

This circuit appears to be a smart AC power control system. The XIAO ESP32C3 microcontroller is used to monitor AC voltage through the ZMPT101B module and to control a 12v Relay, which in turn switches an AC Bulb on or off. The Mini AC-DC module provides the 5V power required by the microcontroller and the relay, while the AC Wire provides the AC power to the system.

Open Project in Cirkit Designer

STM32 and ESP8266-Based Electric Grid Monitoring and Control System with I2C LCD Display

This circuit monitors and controls an electric grid by measuring voltage and current using ZMPT101B and ACS712 sensors, displaying the readings on a 16x2 I2C LCD screen, and controlling a relay module to manage the load. The system is powered by a 3.3V battery, uses an STM32 microcontroller for processing, and includes an ESP8266 module for remote monitoring and control via WiFi.

Open Project in Cirkit Designer

Common Applications

• Induction heating of small metal parts
• Melting metals such as aluminum, copper, or steel
• Heat treatment of tools and components
• DIY projects involving induction heating
• Scientific experiments requiring controlled heating

---

Technical Specifications

Key Specifications

Pin Configuration and Descriptions

The ZVS Induction Board has a simple interface for input and output connections. Below is the pin configuration:

---

Usage Instructions

How to Use the ZVS Induction Board in a Circuit

1. Power Supply Requirements:

   • Use a DC power supply with a voltage range of 12V to 48V.
   • Ensure the power supply can deliver sufficient current (up to 20A) for the desired power output.
   • Use thick wires to connect the power supply to the board to handle high current.

2. Connecting the Induction Coil:

   • Connect the two output terminals of the board to the induction coil.
   • The polarity of the coil connection does not matter.

3. Cooling:

   • The board generates significant heat during operation. Attach a heatsink and/or cooling fan to the MOSFETs and other heat-generating components.
   • Ensure proper ventilation around the board.

4. Operation:

   • Once the power supply and coil are connected, turn on the power supply.
   • Place the object to be heated inside the induction coil. The object must be conductive (e.g., metal).

Important Considerations and Best Practices

• Do not exceed the voltage or current ratings of the board to avoid damage.
• Always use an appropriate heatsink and cooling fan to prevent overheating.
• Avoid running the board without a load (induction coil and object to heat) as this may damage the circuit.
• Ensure the power supply is stable and capable of handling high current without voltage drops.
• Keep the board away from flammable materials during operation.

Example: Using with Arduino UNO

While the ZVS Induction Board does not require a microcontroller for operation, you can use an Arduino UNO to control the power supply (e.g., via a relay or MOSFET). Below is an example of Arduino code to toggle the power supply:

// Example Arduino code to control the ZVS Induction Board power supply
// using a relay module connected to pin 7.

const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn on the power supply
  delay(5000); // Keep the power supply on for 5 seconds

  digitalWrite(relayPin, LOW); // Turn off the power supply
  delay(5000); // Keep the power supply off for 5 seconds
}

---

Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I use a battery to power the ZVS Induction Board?

   • Yes, but ensure the battery can deliver sufficient current (up to 20A) and has a voltage within the 12V to 48V range.

2. What type of objects can be heated?

   • The board is designed to heat conductive materials such as metals (e.g., steel, copper, aluminum). Non-conductive materials like plastic or wood cannot be heated.

3. Why is cooling necessary?

   • The ZVS Induction Board generates significant heat during operation, especially at high power levels. Proper cooling prevents damage to the components and ensures reliable operation.

4. Can I use this board for continuous operation?

   • Yes, but ensure adequate cooling and monitor the board's temperature to avoid overheating.

---

This documentation provides a comprehensive guide to using the ZVS Induction Board 1000W 20A by Elecbee. Follow the instructions and best practices to ensure safe and efficient operation.
