How to Use DHT11: Examples, Pinouts, and Specs

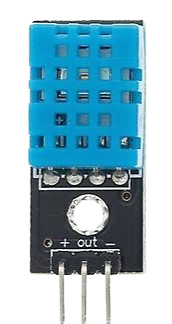

Image of DHT11
Cirkit Designer LogoDesign with DHT11 in Cirkit Designer

Introduction

The DHT11 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is a low-cost, easy-to-use sensor that outputs calibrated digital signals, making it ideal for a wide range of applications. The DHT11 is commonly used in weather stations, HVAC systems, greenhouses, and other projects requiring environmental monitoring. Its compact size and low power consumption make it suitable for embedded systems and IoT applications.

Explore Projects Built with DHT11

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
Image of temperature and humidity sensore : A project utilizing DHT11 in a practical application
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and DHT11 Wi-Fi Enabled Temperature and Humidity Sensor
Image of Practical-9: A project utilizing DHT11 in a practical application
This circuit uses an ESP32 microcontroller to read temperature and humidity data from a DHT11 sensor. The ESP32 provides power to the DHT11 and receives the sensor data through its GPIO pin G33.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Temperature and Humidity Monitor with DHT11 Sensor
Image of DHT11: A project utilizing DHT11 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a DHT11 temperature and humidity sensor. The DHT11 sensor is powered by the 3.3V and GND pins of the Arduino, and its data output is connected to the A0 analog input pin of the Arduino. The Arduino is programmed to read data from the DHT11 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 3B with DHT11 Temperature and Humidity Sensor
Image of temp-humidity: A project utilizing DHT11 in a practical application
This circuit connects a DHT11 temperature and humidity sensor to a Raspberry Pi 3B. The DHT11's data output pin is connected to GPIO pin 11 on the Raspberry Pi for digital signal communication. The sensor is powered by the Raspberry Pi's 5V and ground pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DHT11

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of temperature and humidity sensore : A project utilizing DHT11 in a practical application
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Practical-9: A project utilizing DHT11 in a practical application
ESP32 and DHT11 Wi-Fi Enabled Temperature and Humidity Sensor
This circuit uses an ESP32 microcontroller to read temperature and humidity data from a DHT11 sensor. The ESP32 provides power to the DHT11 and receives the sensor data through its GPIO pin G33.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DHT11: A project utilizing DHT11 in a practical application
Arduino UNO-Based Temperature and Humidity Monitor with DHT11 Sensor
This circuit consists of an Arduino UNO microcontroller connected to a DHT11 temperature and humidity sensor. The DHT11 sensor is powered by the 3.3V and GND pins of the Arduino, and its data output is connected to the A0 analog input pin of the Arduino. The Arduino is programmed to read data from the DHT11 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of temp-humidity: A project utilizing DHT11 in a practical application
Raspberry Pi 3B with DHT11 Temperature and Humidity Sensor
This circuit connects a DHT11 temperature and humidity sensor to a Raspberry Pi 3B. The DHT11's data output pin is connected to GPIO pin 11 on the Raspberry Pi for digital signal communication. The sensor is powered by the Raspberry Pi's 5V and ground pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Temperature Range: 0°C to 50°C (±2°C accuracy)
  • Humidity Range: 20% to 90% RH (±5% accuracy)
  • Operating Voltage: 3.3V to 5.5V
  • Max Current Consumption: 2.5mA
  • Output: Digital signal via a single data pin
  • Sampling Rate: 1 reading per second (1 Hz)
  • Dimensions: 15.5mm x 12mm x 5.5mm

Pin Configuration and Descriptions

The DHT11 sensor has four pins, but typically only three are used in most applications. Below is the pinout:

Pin Number Name Description
1 VCC Power supply pin (3.3V to 5.5V)
2 DATA Digital data output pin (requires a pull-up resistor, typically 10kΩ)
3 NC (Not Connected) No internal connection (leave unconnected)
4 GND Ground pin

Usage Instructions

How to Use the DHT11 in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. Data Communication: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and VCC to ensure proper signal integrity.
  3. Timing Requirements: The DHT11 uses a proprietary 1-wire protocol for communication. Ensure your microcontroller can handle the timing requirements for sending and receiving data.

Example Circuit

  • VCC: Connect to 5V on the Arduino UNO.
  • DATA: Connect to digital pin 2 on the Arduino UNO with a 10kΩ pull-up resistor.
  • GND: Connect to GND on the Arduino UNO.

Arduino UNO Example Code

Below is an example code to read temperature and humidity data from the DHT11 using the Arduino UNO. This code uses the popular DHT library.

#include <DHT.h>

// Define the pin where the DHT11 is connected
#define DHTPIN 2  // Pin 2 is connected to the DATA pin of DHT11

// Define the type of DHT sensor
#define DHTTYPE DHT11  // DHT11 sensor

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start the serial communication
  Serial.println("DHT11 Sensor Initialization");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read humidity and temperature
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

Important Considerations and Best Practices

  • Pull-Up Resistor: Always use a pull-up resistor (10kΩ) on the DATA pin to ensure reliable communication.
  • Sampling Rate: The DHT11 has a sampling rate of 1 Hz. Avoid reading data more frequently than once per second.
  • Cable Length: Keep the cable length between the sensor and microcontroller as short as possible to avoid signal degradation.
  • Environmental Factors: Avoid placing the sensor in direct sunlight or near heat sources, as this can affect accuracy.

Troubleshooting and FAQs

Common Issues

  1. No Data or Incorrect Readings:

    • Ensure the pull-up resistor is connected between the DATA pin and VCC.
    • Verify the wiring and ensure the correct pin connections.
    • Check that the sensor is not being read more frequently than once per second.
  2. "Failed to read from DHT sensor!" Error:

    • This error occurs when the sensor does not respond. Check the power supply and connections.
    • Ensure the correct pin number is defined in the code.
  3. Inconsistent Readings:

    • Ensure the sensor is placed in a stable environment without sudden temperature or humidity changes.
    • Verify that the pull-up resistor value is appropriate (10kΩ is recommended).

FAQs

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 with a 3.3V microcontroller?
A: Yes, the DHT11 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V systems.

Q: What is the difference between the DHT11 and DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy compared to the DHT11, but it is more expensive.

Q: How do I extend the cable length for the DHT11?
A: Use shielded cables and keep the length as short as possible. Adding a capacitor (e.g., 100nF) near the sensor can help stabilize the signal.

By following this documentation, you can effectively integrate the DHT11 sensor into your projects for reliable temperature and humidity monitoring.
