How to Use BMS 3S 40A: Examples, Pinouts, and Specs

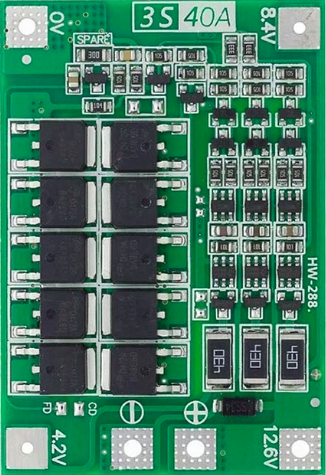

Image of BMS 3S 40A
Cirkit Designer LogoDesign with BMS 3S 40A in Cirkit Designer

Introduction

The BMS 3S 40A is a Battery Management System designed to manage and protect 3-cell lithium-ion battery packs. It ensures the safe operation of the battery pack by monitoring individual cell voltages, balancing cells, and providing protection against over-voltage, under-voltage, over-current, and short circuits. With a maximum continuous current rating of 40A, this BMS is ideal for high-power applications.

Explore Projects Built with BMS 3S 40A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
18650 Li-ion Battery Pack with BMS for 5V Power Supply
Image of battary: A project utilizing BMS 3S 40A in a practical application
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
18650 Li-ion Battery Pack with 4S40A BMS and XL4016 Voltage Regulator for Battery-Powered Applications
Image of Power Bank: A project utilizing BMS 3S 40A in a practical application
This circuit is a battery management and charging system for a 4S Li-ion battery pack. It includes multiple 18650 Li-ion batteries connected to a 4S40A BMS for balancing and protection, a battery indicator for monitoring charge status, and an XL4016 module for voltage regulation. The system is designed to be charged via a 20V input from a charger.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing BMS 3S 40A in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
Image of servo power supply: A project utilizing BMS 3S 40A in a practical application
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BMS 3S 40A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of battary: A project utilizing BMS 3S 40A in a practical application
18650 Li-ion Battery Pack with BMS for 5V Power Supply
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Bank: A project utilizing BMS 3S 40A in a practical application
18650 Li-ion Battery Pack with 4S40A BMS and XL4016 Voltage Regulator for Battery-Powered Applications
This circuit is a battery management and charging system for a 4S Li-ion battery pack. It includes multiple 18650 Li-ion batteries connected to a 4S40A BMS for balancing and protection, a battery indicator for monitoring charge status, and an XL4016 module for voltage regulation. The system is designed to be charged via a 20V input from a charger.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing BMS 3S 40A in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of servo power supply: A project utilizing BMS 3S 40A in a practical application
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Electric bicycles and scooters
  • Portable power banks
  • Solar energy storage systems
  • Uninterruptible Power Supplies (UPS)
  • Robotics and DIY electronics projects

Technical Specifications

The following table outlines the key technical specifications of the BMS 3S 40A:

Parameter Value
Battery Type Lithium-ion (Li-ion) / LiPo
Number of Cells Supported 3 (3S configuration)
Maximum Continuous Current 40A
Overcharge Protection Voltage 4.25V ± 0.05V per cell
Over-discharge Protection Voltage 2.8V ± 0.05V per cell
Balancing Voltage 4.2V per cell
Balancing Current 30mA
Over-current Protection 40A ± 5A
Operating Temperature Range -20°C to 60°C
Dimensions ~60mm x 20mm x 3mm

Pin Configuration and Descriptions

The BMS 3S 40A typically has the following pin connections:

Pin Name Description
B- Battery negative terminal (connect to the negative terminal of the battery pack)
B1 Connection to the positive terminal of the first cell in the battery pack
B2 Connection to the positive terminal of the second cell in the battery pack
B+ Battery positive terminal (connect to the positive terminal of the battery pack)
P- Power output negative terminal (connect to the load or charger negative)
P+ Power output positive terminal (connect to the load or charger positive)

Usage Instructions

How to Use the BMS 3S 40A in a Circuit

  1. Connect the Battery Pack:

    • Connect the negative terminal of the battery pack to the B- pin.
    • Connect the positive terminal of the first cell to the B1 pin.
    • Connect the positive terminal of the second cell to the B2 pin.
    • Connect the positive terminal of the battery pack to the B+ pin.
  2. Connect the Load and Charger:

    • Connect the negative terminal of the load or charger to the P- pin.
    • Connect the positive terminal of the load or charger to the P+ pin.
  3. Verify Connections:

    • Double-check all connections to ensure they are secure and correct.
    • Ensure the battery pack is properly balanced before connecting the BMS.
  4. Power On:

    • Once all connections are verified, the BMS will automatically monitor and protect the battery pack during operation.

Important Considerations and Best Practices

  • Cell Matching: Ensure all cells in the battery pack have the same capacity, voltage, and internal resistance to avoid imbalances.
  • Heat Dissipation: The BMS may generate heat during operation, especially at high currents. Ensure proper ventilation or heat sinking if necessary.
  • Avoid Overloading: Do not exceed the maximum continuous current rating of 40A to prevent damage to the BMS.
  • Pre-charge Circuit: If connecting to a high-capacity load, consider using a pre-charge circuit to avoid inrush current.

Example: Using the BMS 3S 40A with an Arduino UNO

The BMS 3S 40A can be used in conjunction with an Arduino UNO to monitor battery voltage. Below is an example code snippet to read the voltage of each cell using the Arduino's analog pins:

// Example code to monitor 3-cell battery voltages using Arduino UNO
// Connect the B1, B2, and B+ pins to analog pins A0, A1, and A2 respectively.

const int cell1Pin = A0; // Pin connected to B1 (Cell 1 positive terminal)
const int cell2Pin = A1; // Pin connected to B2 (Cell 2 positive terminal)
const int cell3Pin = A2; // Pin connected to B+ (Battery pack positive terminal)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read analog values from each cell
  int cell1Voltage = analogRead(cell1Pin);
  int cell2Voltage = analogRead(cell2Pin);
  int cell3Voltage = analogRead(cell3Pin);

  // Convert analog values to actual voltages (assuming 5V reference and 10-bit ADC)
  float voltage1 = (cell1Voltage * 5.0) / 1023.0;
  float voltage2 = (cell2Voltage * 5.0) / 1023.0;
  float voltage3 = (cell3Voltage * 5.0) / 1023.0;

  // Print the voltages to the Serial Monitor
  Serial.print("Cell 1 Voltage: ");
  Serial.print(voltage1);
  Serial.println(" V");

  Serial.print("Cell 2 Voltage: ");
  Serial.print(voltage2);
  Serial.println(" V");

  Serial.print("Cell 3 Voltage: ");
  Serial.print(voltage3);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. BMS Not Powering On:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Verify all connections, especially the battery terminals.
  2. Battery Pack Not Charging:

    • Cause: Over-voltage or under-voltage protection is triggered.
    • Solution: Check the individual cell voltages and ensure they are within the operating range.
  3. Excessive Heat During Operation:

    • Cause: High current draw or poor ventilation.
    • Solution: Reduce the load current or improve heat dissipation.
  4. Imbalanced Cells:

    • Cause: Cells with different capacities or internal resistances.
    • Solution: Replace mismatched cells and ensure proper balancing.

FAQs

Q: Can I use the BMS 3S 40A with a 4-cell battery pack?
A: No, this BMS is specifically designed for 3-cell (3S) lithium-ion battery packs. Using it with a 4-cell pack may result in improper operation or damage.

Q: How do I know if the BMS is balancing the cells?
A: The BMS will automatically balance the cells when their voltages exceed the balancing threshold (typically 4.2V per cell). You can measure the cell voltages to confirm.

Q: Can I use this BMS for LiFePO4 batteries?
A: No, this BMS is designed for lithium-ion or LiPo batteries. LiFePO4 batteries have different voltage thresholds and require a dedicated BMS.

Q: What happens if I exceed the 40A current limit?
A: The BMS will trigger over-current protection and disconnect the load to prevent damage.
