How to Use LCD 20x4 I2C: Examples, Pinouts, and Specs

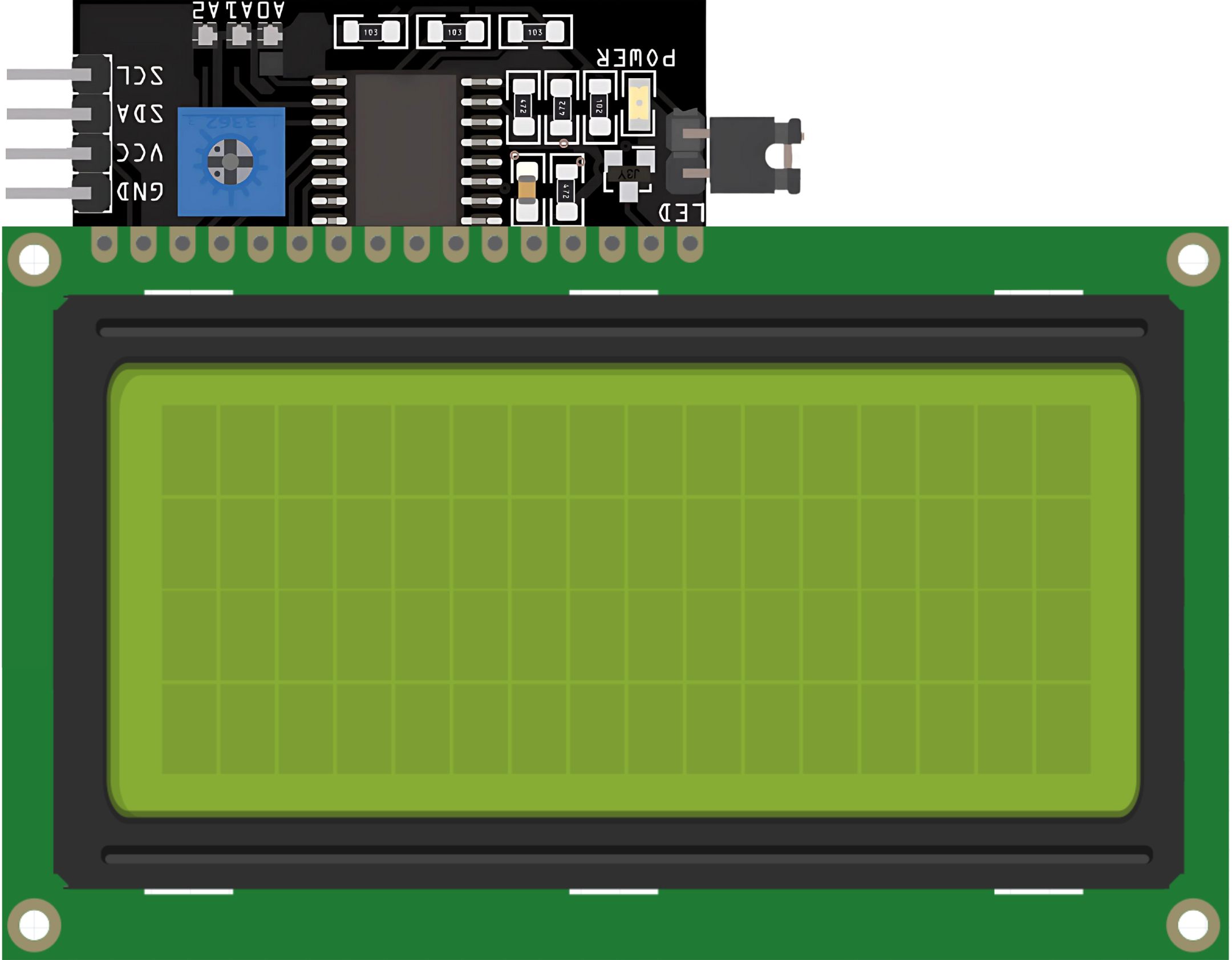

The LCD 20x4 I2C is a 20-column by 4-row Liquid Crystal Display that uses I2C (Inter-Integrated Circuit) communication for simplified interfacing with microcontrollers. This display is ideal for projects requiring a compact and efficient way to display text or simple graphics. The I2C interface reduces the number of pins required for connection, making it perfect for applications with limited GPIO availability.

• Embedded systems and microcontroller projects
• Home automation displays
• Industrial control panels
• Educational and prototyping projects
• IoT devices requiring user feedback

The following table outlines the key technical details of the LCD 20x4 I2C:

The LCD 20x4 I2C module typically has a 4-pin header for connection. Below is the pin description:

1. Wiring: Connect the LCD module to the Arduino UNO as follows:

   • GND → GND on Arduino
   • VCC → 5V on Arduino
   • SDA → A4 on Arduino (I2C Data Line)
   • SCL → A5 on Arduino (I2C Clock Line)

2. Install Required Library:

   • Open the Arduino IDE.
   • Go to Sketch > Include Library > Manage Libraries.
   • Search for "LiquidCrystal_I2C" and install the library by Frank de Brabander.

3. Arduino Code Example: Below is an example code to display text on the LCD 20x4 I2C:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 20x4 dimensions
   LiquidCrystal_I2C lcd(0x27, 20, 4);

   void setup() {
     // Initialize the LCD
     lcd.begin();
     lcd.backlight(); // Turn on the backlight

     // Display text on the LCD
     lcd.setCursor(0, 0); // Set cursor to column 0, row 0
     lcd.print("Hello, World!");

     lcd.setCursor(0, 1); // Set cursor to column 0, row 1
     lcd.print("LCD 20x4 I2C Test");

     lcd.setCursor(0, 2); // Set cursor to column 0, row 2
     lcd.print("Line 3 Example");

     lcd.setCursor(0, 3); // Set cursor to column 0, row 3
     lcd.print("Line 4 Example");
   }

   void loop() {
     // No actions in the loop for this example
   }


• I2C Address: The default I2C address is typically 0x27, but it may vary depending on the module. Use an I2C scanner sketch to detect the correct address if needed.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunction.
• Contrast Adjustment: Some modules include a potentiometer to adjust the display contrast. Turn the potentiometer to achieve optimal visibility.

1. LCD Not Displaying Anything:

   • Verify the wiring connections (GND, VCC, SDA, SCL).
   • Check the I2C address using an I2C scanner sketch.
   • Ensure the backlight is turned on using lcd.backlight() in the code.

2. Text Appears Garbled or Incomplete:

   • Ensure the correct dimensions (20x4) are specified in the LiquidCrystal_I2C initialization.
   • Check for loose connections or poor solder joints.

3. Flickering Display:

   • Verify that the power supply provides sufficient current (at least 20mA).
   • Avoid using long or thin wires for power connections.

4. I2C Address Not Detected:

   • Double-check the SDA and SCL connections.
   • Some modules have a different default address (e.g., 0x3F). Use an I2C scanner to confirm.

Q: Can I use the LCD 20x4 I2C with a 3.3V microcontroller?
A: Most modules require 5V for proper operation. However, you can use a logic level shifter to interface with 3.3V microcontrollers.

Q: How do I display custom characters?
A: The LiquidCrystal_I2C library supports custom characters. Use the createChar() function to define and display custom patterns.

Q: Can I connect multiple I2C devices to the same Arduino?
A: Yes, I2C supports multiple devices on the same bus. Ensure each device has a unique address.

Q: How do I adjust the brightness of the backlight?
A: Some modules allow backlight control via a jumper or software commands. Refer to the module's datasheet for details.

By following this documentation, you can effectively integrate and troubleshoot the LCD 20x4 I2C in your projects.
