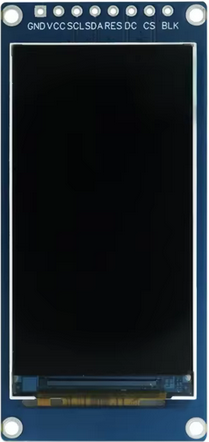

Design with TFT-Display 1.9" 170x320 in Cirkit DesignerThe TFT-Display 1.9" 170x320 is a compact thin-film transistor (TFT) display module with a resolution of 170x320 pixels. It is designed for use in a variety of electronic applications, including handheld devices, IoT projects, and embedded systems. This display offers vibrant colors, high contrast, and a wide viewing angle, making it ideal for graphical interfaces and text-based outputs.
This circuit connects an ESP32 microcontroller to a 1.3 inch TFT display module (ST7789). The ESP32 provides power and control signals to the display, enabling it to show graphical data.
Open Project in Cirkit Designer
This circuit connects an Arduino Mega 2560 microcontroller to a 3.5-inch 480x320 TFT LCD display. The Arduino provides power, ground, and digital signals to control the display, including data lines for pixel information and control lines for reset, write, and command/data selection. The embedded code initializes the display and configures the Arduino's pins for communication, likely to create a user interface or visual output for a project.
Open Project in Cirkit Designer
This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.
Open Project in Cirkit Designer
This circuit connects a 1.3 inch TFT Module 240×240 ST7789 display, a GY-MCU90640 thermal camera module, and a XIAO ESP32C3 microcontroller to create a thermal imaging system. The ESP32C3 microcontroller is programmed to read temperature data from the thermal camera, process it, and display a visual representation of the temperature distribution on the TFT screen. The circuit is designed for applications requiring thermal monitoring, such as detecting heat sources or monitoring temperature variations in an environment.
Open Project in Cirkit DesignerThe following table outlines the key technical details of the TFT-Display 1.9" 170x320:
| Parameter | Value |
|---|---|
| Display Type | TFT (Thin-Film Transistor) |
| Screen Size | 1.9 inches |
| Resolution | 170x320 pixels |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage | 3.3V |
| Backlight Voltage | 3.0V to 3.3V |
| Current Consumption | ~20mA (typical) |
| Pixel Color Depth | 16-bit (65,536 colors) |
| Viewing Angle | Wide |
| Operating Temperature | -20°C to 70°C |
The TFT-Display 1.9" 170x320 typically has an 8-pin interface. Below is the pinout and description:
| Pin | Name | Description |
|---|---|---|
| 1 | GND | Ground connection |
| 2 | VCC | Power supply (3.3V) |
| 3 | SCL | Serial Clock Line for SPI communication |
| 4 | SDA | Serial Data Line for SPI communication |
| 5 | RES | Reset pin (active low) |
| 6 | DC | Data/Command control pin (High for data, Low for command) |
| 7 | CS | Chip Select (active low) |
| 8 | BL | Backlight control (connect to 3.3V for constant backlight or PWM for dimming) |
VCC pin to a 3.3V power source and the GND pin to ground.SCL and SDA pins to the SPI clock and data lines of your microcontroller, respectively.RES pin to a GPIO pin on your microcontroller for resetting the display.DC pin to differentiate between data and command signals.CS pin to a GPIO pin to enable or disable the display.BL pin to 3.3V for constant backlight or to a PWM-capable GPIO pin for brightness control.Below is an example of how to interface the TFT-Display 1.9" 170x320 with an Arduino UNO using the Adafruit GFX and ST7789 libraries (assuming the display uses the ST7789 driver):
#include <Adafruit_GFX.h> // Core graphics library
#include <Adafruit_ST7789.h> // ST7789 driver library
#include <SPI.h>
// Define pin connections
#define TFT_CS 10 // Chip Select pin
#define TFT_RST 9 // Reset pin
#define TFT_DC 8 // Data/Command pin
// Initialize the display object
Adafruit_ST7789 tft = Adafruit_ST7789(TFT_CS, TFT_DC, TFT_RST);
void setup() {
// Initialize serial communication for debugging
Serial.begin(9600);
Serial.println("TFT Display Test");
// Initialize the display
tft.init(170, 320); // Initialize with resolution 170x320
tft.setRotation(1); // Set display orientation
// Fill the screen with a color
tft.fillScreen(ST77XX_BLACK);
// Display some text
tft.setTextColor(ST77XX_WHITE);
tft.setTextSize(2);
tft.setCursor(10, 10);
tft.println("Hello, TFT!");
}
void loop() {
// Add your code here to update the display
}
Display Not Turning On:
VCC pin is receiving 3.3V.GND connection.No Output on the Screen:
SCL, SDA, CS, DC) are correctly wired.Flickering or Unstable Display:
Backlight Not Working:
BL pin is connected to 3.3V or a PWM signal.Q: Can I use this display with a 5V microcontroller?
A: Yes, but you must use level shifters to convert the 5V logic signals to 3.3V.
Q: What is the maximum SPI clock speed supported?
A: The display typically supports SPI clock speeds up to 10 MHz. Check the driver datasheet for exact specifications.
Q: How do I adjust the brightness of the backlight?
A: Use a PWM signal on the BL pin to control the brightness. A higher duty cycle increases brightness.
Q: Can I use this display in outdoor environments?
A: The display is not sunlight-readable and is best suited for indoor use. Ensure the operating temperature is within the specified range (-20°C to 70°C).
