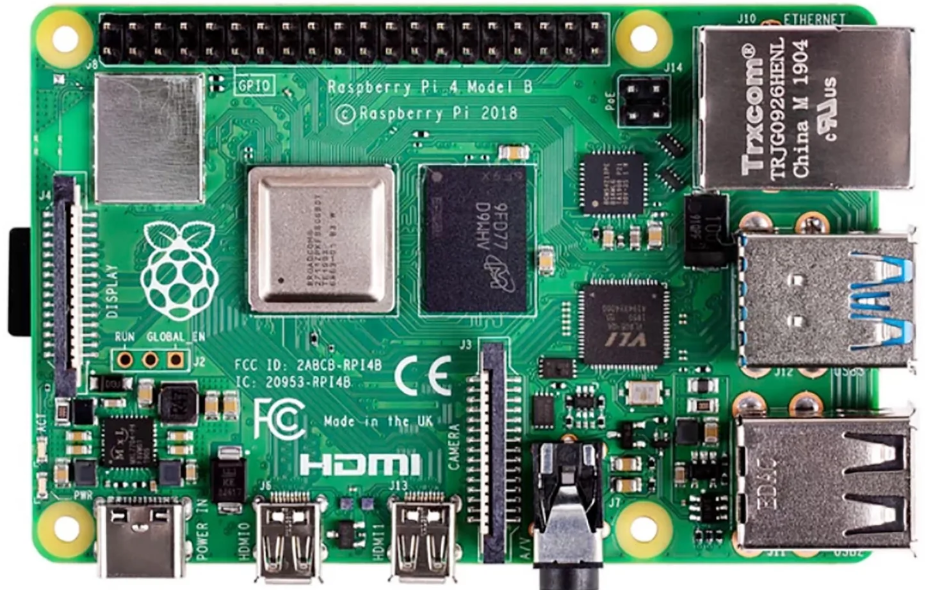

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and built-in Wi-Fi and Bluetooth connectivity. This versatile device is ideal for projects such as learning programming, building IoT devices, creating media centers, and more. Its small form factor and robust capabilities make it a popular choice for hobbyists, educators, and professionals alike.

• Learning Programming: Ideal for beginners to learn Python, Java, and other languages.
• IoT Projects: Acts as a hub for smart home devices or other IoT systems.
• Media Centers: Can be used to build a home theater system with software like Kodi.
• Retro Gaming: Supports emulation software for classic gaming consoles.
• Robotics: Powers robots and other hardware projects.
• Edge Computing: Suitable for lightweight AI and machine learning tasks.

The Raspberry Pi 4B features a 40-pin GPIO header for interfacing with external devices. Below is a summary of the pin configuration:

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

1. Prepare the Operating System:

   • Download the Raspberry Pi OS (or another compatible OS) from the official website.
   • Flash the OS image onto a microSD card using tools like Balena Etcher.
   • Insert the microSD card into the Raspberry Pi 4B.

2. Power and Peripherals:

   • Connect a USB-C power supply (5V/3A recommended).
   • Attach peripherals such as a keyboard, mouse, and monitor via USB and HDMI ports.
   • Optionally, connect to a network via Ethernet or Wi-Fi.

3. Boot and Configuration:

   • Power on the Raspberry Pi 4B. The OS will boot, and you can configure settings like Wi-Fi, language, and updates.
   • Use the terminal or desktop environment to begin programming or running applications.

4. GPIO Usage:

   • Use the GPIO pins to interface with sensors, LEDs, motors, and other hardware.
   • Libraries like RPi.GPIO or gpiozero in Python simplify GPIO programming.

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

• Power Supply: Use a reliable 5V/3A USB-C power supply to avoid undervoltage issues.
• Cooling: Consider using a heatsink or fan for intensive tasks to prevent overheating.
• Static Protection: Handle the board carefully to avoid static damage to components.
• GPIO Safety: Avoid exceeding the 3.3V limit on GPIO pins to prevent damage.

1. No Display on Monitor:

   • Ensure the micro-HDMI cable is connected to the correct port (HDMI0).
   • Verify the monitor is powered on and set to the correct input source.
   • Check the microSD card for a properly installed OS.

2. Wi-Fi Not Connecting:

   • Double-check the Wi-Fi credentials entered during setup.
   • Ensure the Raspberry Pi is within range of the Wi-Fi router.
   • Update the OS to ensure compatibility with your network.

3. Overheating:

   • Use a heatsink or fan to improve cooling.
   • Avoid running resource-intensive tasks for extended periods without proper cooling.

4. GPIO Not Working:

   • Verify the pin numbering matches the code (BCM vs. BOARD mode).
   • Check for loose connections or damaged components in the circuit.

• Q: Can I power the Raspberry Pi 4B via GPIO pins?
  A: Yes, you can supply 5V power through the 5V and GND GPIO pins, but ensure proper voltage regulation.

• Q: What is the maximum resolution supported by the Raspberry Pi 4B?
  A: The Raspberry Pi 4B supports up to dual 4K displays at 60Hz via its micro-HDMI ports.

• Q: Can I use the Raspberry Pi 4B for AI/ML tasks?
  A: Yes, lightweight AI/ML tasks can be performed using frameworks like TensorFlow Lite or OpenCV.

• Q: How do I update the Raspberry Pi OS?
  A: Run the following commands in the terminal:

  sudo apt update
  sudo apt full-upgrade


By following this documentation, you can effectively utilize the Raspberry Pi 4B for a variety of projects and applications.
