How to Use Arduino 2560: Examples, Pinouts, and Specs

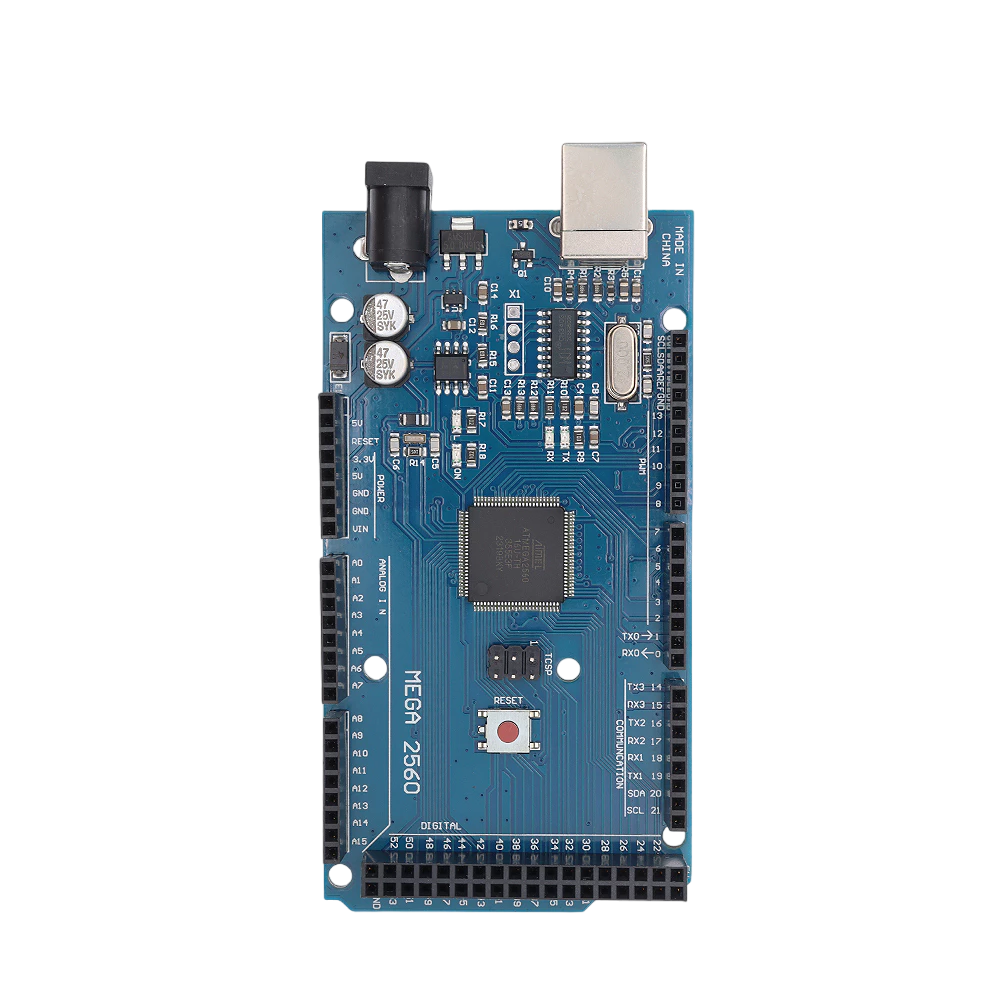

The Arduino 2560 is a microcontroller board based on the ATmega2560. It is designed for building interactive projects and prototypes, offering a robust platform for both beginners and advanced users. The board features 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection for programming and power, a power jack, an ICSP header, and a reset button.

• Robotics and automation projects
• IoT (Internet of Things) devices
• Data acquisition and logging
• Prototyping for embedded systems
• Interactive art installations
• Educational tools for learning electronics and programming

1. Powering the Board:

   • Connect the Arduino 2560 to your computer using a USB Type-B cable for programming and power.
   • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.

2. Programming the Board:

   • Install the Arduino IDE from the official website.
   • Select "Arduino Mega 2560" as the board type in the Tools menu.
   • Choose the correct COM port for the board.
   • Write your code in the IDE and upload it to the board using the "Upload" button.

3. Connecting Components:

   • Use the digital pins for input/output operations, such as controlling LEDs or reading button states.
   • Use the analog pins to read sensor data (e.g., temperature, light intensity).
   • Connect external modules (e.g., motors, displays) to the appropriate pins, ensuring they are within the board's voltage and current limits.

• Avoid drawing more than 20 mA from any single I/O pin to prevent damage to the microcontroller.
• Use external power when driving high-current devices like motors or relays.
• Always connect the GND pin of the Arduino to the ground of external circuits.
• Use pull-up or pull-down resistors for stable digital input readings.
• When using the board in noisy environments, consider adding decoupling capacitors to stabilize the power supply.

The following example demonstrates how to blink an LED connected to digital pin 13.

// This program blinks an LED connected to pin 13 on the Arduino 2560.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. The board is not recognized by the computer:

   • Ensure the USB cable is properly connected and functional.
   • Install the necessary drivers for the Arduino 2560.
   • Check if the correct COM port is selected in the Arduino IDE.

2. Code does not upload to the board:

   • Verify that "Arduino Mega 2560" is selected as the board type in the Tools menu.
   • Ensure no other program is using the COM port.
   • Press the reset button on the board and try uploading again.

3. Components connected to the board are not working:

   • Double-check the wiring and connections.
   • Ensure the components are compatible with the Arduino's voltage and current ratings.
   • Use a multimeter to verify power supply and signal levels.

4. The board overheats:

   • Check for short circuits in the connected components.
   • Avoid drawing excessive current from the I/O pins or power pins.
   • Use an external power supply if necessary.

Q: Can I use the Arduino 2560 for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05), Wi-Fi (ESP8266), or RF transceivers to the Arduino 2560.

Q: How do I reset the board?
A: Press the reset button on the board, or connect an external reset circuit to the RESET pin.

Q: Can I power the board with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).
