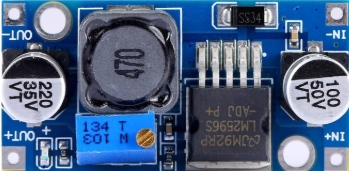

Image of BUCK
Cirkit Designer LogoDesign with BUCK in Cirkit Designer

Introduction

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient DC-DC step-down voltage regulator. It is designed to convert a higher input voltage to a lower output voltage while maintaining high efficiency. This component is widely used in power management systems, battery-powered devices, and embedded systems where precise voltage regulation is required.

Explore Projects Built with BUCK

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing BUCK in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing BUCK in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Arduino UNO with Buck Converter for Efficient Power Management
Image of home automation: A project utilizing BUCK in a practical application
This circuit consists of an Arduino UNO powered by a pair of 18650 Li-ion batteries through a buck converter. The buck converter steps down the voltage from the batteries to a suitable level for the Arduino, providing a stable 5V supply to the Arduino's 5V pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing BUCK in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BUCK

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Pencuci Kipas: A project utilizing BUCK in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing BUCK in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of home automation: A project utilizing BUCK in a practical application
Battery-Powered Arduino UNO with Buck Converter for Efficient Power Management
This circuit consists of an Arduino UNO powered by a pair of 18650 Li-ion batteries through a buck converter. The buck converter steps down the voltage from the batteries to a suitable level for the Arduino, providing a stable 5V supply to the Arduino's 5V pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing BUCK in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power supply for microcontrollers and embedded systems
  • Battery charging circuits
  • Voltage regulation in renewable energy systems
  • LED drivers
  • Consumer electronics (e.g., smartphones, tablets)

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer HUAREW
Part ID BUCK DC/DC
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.2V to 36V
Output Current Up to 3A
Efficiency Up to 95%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Package Type TO-220 or SMD (varies by model)

Pin Configuration and Descriptions

Pin Number Pin Name Description
1 VIN Input voltage pin. Connect to the positive terminal of the input power source.
2 GND Ground pin. Connect to the negative terminal of the input power source.
3 VOUT Output voltage pin. Provides the regulated output voltage.
4 FB (Feedback) Feedback pin. Used to set the output voltage by connecting a resistor divider.
5 EN (Enable) Enable pin. Used to turn the converter on or off.

Usage Instructions

How to Use the BUCK DC/DC Converter in a Circuit

  1. Input Voltage Connection: Connect the input voltage source to the VIN pin and the ground of the source to the GND pin.
  2. Output Voltage Adjustment: Use a resistor divider network connected to the FB pin to set the desired output voltage. The formula for output voltage is: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is typically 1.25V (check the datasheet for exact value).
  3. Load Connection: Connect the load to the VOUT pin and its ground to the GND pin.
  4. Enable Pin: If the EN pin is available, connect it to a logic high signal to enable the converter. Leave it floating or connect to ground to disable the converter.
  5. Inductor and Capacitor Selection: Choose an appropriate inductor and output capacitor based on the input voltage, output voltage, and load current requirements. Refer to the datasheet for recommended values.

Important Considerations and Best Practices

  • Ensure the input voltage is within the specified range (4.5V to 40V).
  • Use low Equivalent Series Resistance (ESR) capacitors for better performance.
  • Place the input and output capacitors as close as possible to the pins to minimize noise.
  • Use a heat sink or proper thermal management if the converter operates at high currents.
  • Avoid exceeding the maximum output current (3A) to prevent damage.

Example: Connecting to an Arduino UNO

The BUCK DC/DC converter can be used to power an Arduino UNO by stepping down a 12V input to 5V. Below is an example circuit and Arduino code:

Circuit Setup

  • Connect a 12V DC power source to the VIN pin of the BUCK converter.
  • Set the output voltage to 5V using the resistor divider network.
  • Connect the VOUT pin to the Arduino UNO's 5V pin and the GND pin to the Arduino's GND.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by BUCK DC/DC converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
No output voltage Incorrect input voltage or connections Verify the input voltage and ensure proper connections to VIN and GND.
Output voltage is unstable Insufficient or incorrect capacitors Use low ESR capacitors and place them close to the pins.
Overheating Excessive load current Ensure the load current does not exceed 3A. Use a heat sink if necessary.
Output voltage does not match set value Incorrect resistor divider values Recalculate and adjust the resistor divider network.

FAQs

  1. Can the BUCK DC/DC converter handle AC input?

    • No, the BUCK converter is designed for DC input only. Use a rectifier circuit to convert AC to DC before using the converter.
  2. What happens if the input voltage exceeds 40V?

    • Exceeding the maximum input voltage can damage the converter. Always ensure the input voltage is within the specified range.
  3. Can I use the BUCK converter to step up voltage?

    • No, the BUCK converter is specifically designed for step-down (buck) voltage regulation. For step-up applications, use a boost converter.
  4. How do I calculate the inductor value?

    • The inductor value depends on the input voltage, output voltage, switching frequency, and load current. Refer to the datasheet for detailed calculations and recommendations.

By following this documentation, users can effectively integrate the HUAREW BUCK DC/DC converter into their projects for efficient and reliable voltage regulation.
