How to Use Arduino Uno R3: Examples, Pinouts, and Specs

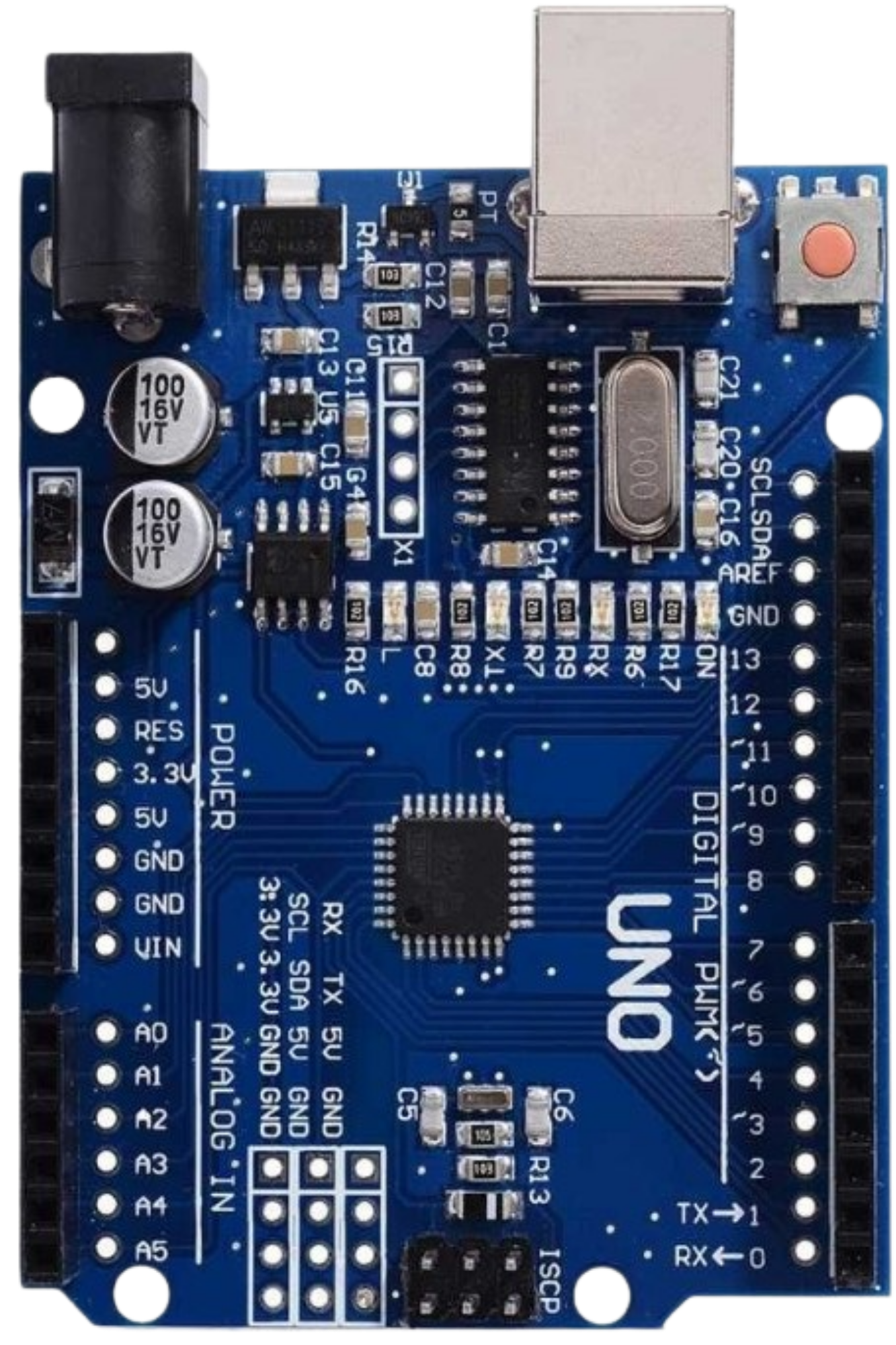

The Arduino Uno R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile boards in the Arduino ecosystem, designed for beginners and professionals alike. The board features 14 digital input/output pins, 6 analog inputs, a USB connection for programming, and a power jack for external power supply. Its simplicity and compatibility with a wide range of sensors, modules, and shields make it ideal for prototyping, embedded systems, and educational projects.

• Robotics and automation
• IoT (Internet of Things) devices
• Sensor data acquisition and processing
• LED and motor control
• Educational projects and prototyping

1. Powering the Board:

   • Connect the board to your computer using a USB Type-B cable for programming and power.
   • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.

2. Programming:

   • Install the Arduino IDE from the official Arduino website.
   • Connect the board to your computer via USB.
   • Select the correct board (Arduino Uno) and port in the Arduino IDE.
   • Write your code and upload it to the board.

3. Connecting Components:

   • Use the digital pins for digital input/output operations (e.g., controlling LEDs, reading buttons).
   • Use the analog pins for reading sensor data (e.g., temperature sensors, potentiometers).
   • Ensure proper grounding by connecting all GND pins in your circuit.

• Avoid exceeding the 20 mA current limit per I/O pin to prevent damage.
• Use external resistors for LEDs to limit current and protect the pins.
• When using motors or high-power components, use external power supplies and driver circuits.
• Always double-check connections to avoid short circuits or incorrect wiring.

The following example demonstrates how to blink an LED connected to digital pin 13:

// Blink an LED connected to pin 13
// This example toggles the LED on and off every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. The board is not detected by the computer:

   • Ensure the USB cable is functional and properly connected.
   • Check if the correct port is selected in the Arduino IDE.
   • Install or update the USB drivers for the Arduino Uno.

2. Code upload fails:

   • Verify that the correct board and port are selected in the Arduino IDE.
   • Press the RESET button on the board before uploading.
   • Ensure no other program is using the COM port.

3. Components not working as expected:

   • Double-check the wiring and connections.
   • Ensure the components are compatible with the Arduino Uno's voltage and current ratings.
   • Use a multimeter to test for continuity and proper voltage levels.

4. The board overheats:

   • Check for short circuits or excessive current draw from connected components.
   • Use external power supplies for high-power devices.

Q: Can I power the Arduino Uno with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

Q: What is the maximum current the board can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when using an external power supply.

Q: Can I use the Arduino Uno for wireless communication?
A: Yes, you can use wireless modules like Bluetooth (HC-05) or Wi-Fi (ESP8266) with the Arduino Uno.

Q: How do I reset the board?
A: Press the RESET button on the board or connect the RESET pin to GND momentarily.

This concludes the documentation for the Arduino Uno R3. For more information, visit the official Arduino website.
