How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

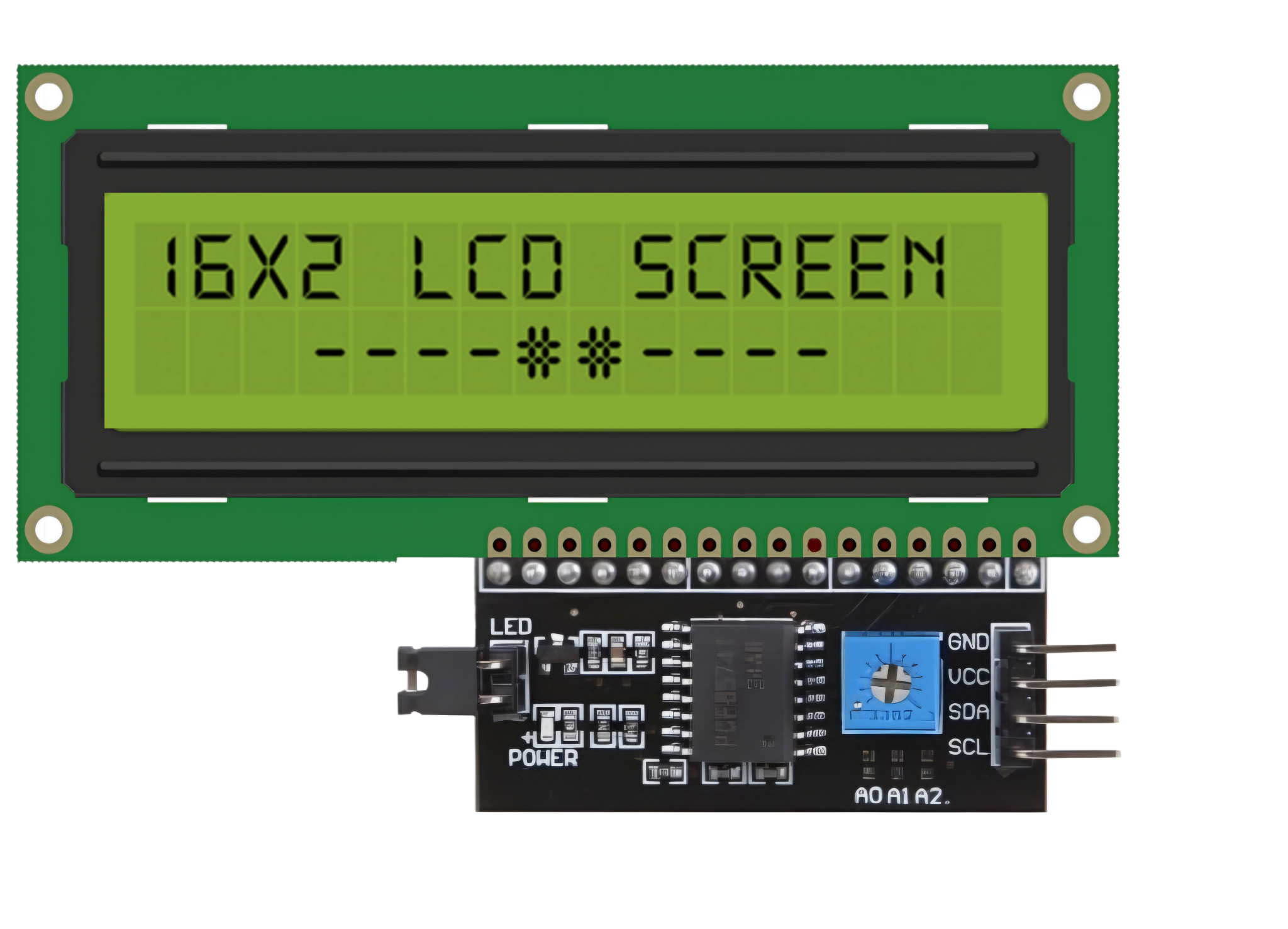

The LCD 16x2 attached I2C is a 16-character by 2-line alphanumeric display module that uses I2C (Inter-Integrated Circuit) communication for simplified interfacing with microcontrollers. This module is ideal for projects requiring a compact and efficient way to display text or basic symbols. The I2C interface significantly reduces the number of pins required for connection, making it a popular choice for Arduino, Raspberry Pi, and other microcontroller-based projects.

• Displaying sensor readings (e.g., temperature, humidity, or pressure)
• User interfaces for embedded systems
• Menu systems for control panels
• Debugging and status monitoring in prototypes
• Educational and hobbyist projects

The LCD 16x2 with I2C interface typically has a 4-pin header for connection:

1. Wiring the LCD to a Microcontroller:

   • Connect the GND pin of the LCD to the ground pin of the microcontroller.
   • Connect the VCC pin of the LCD to the 5V power pin of the microcontroller.
   • Connect the SDA pin of the LCD to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin of the LCD to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library via the Library Manager in the Arduino IDE.

3. Write and Upload Code:

   • Use the example code below to display text on the LCD.

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>   // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set cursor to the first column, first row
  lcd.print("Hello, World!");    // Print text on the first row
  lcd.setCursor(0, 1);           // Set cursor to the first column, second row
  lcd.print("I2C LCD Ready!");   // Print text on the second row
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Verify the I2C address of your module (default is usually 0x27). Use an I2C scanner sketch if unsure.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunction.
• Contrast Adjustment: Use the onboard potentiometer to adjust the display contrast.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight.

1. No Display or Blank Screen:

   • Ensure proper wiring and connections.
   • Check the contrast adjustment potentiometer.
   • Verify the I2C address and update the code if necessary.

2. Flickering or Unstable Display:

   • Use a stable 5V power source.
   • Avoid long or poor-quality wires for I2C connections.

3. Text Not Displaying Correctly:

   • Double-check the I2C address in the code.
   • Ensure the LiquidCrystal_I2C library is installed and up to date.

4. Backlight Not Working:

   • Verify the backlight control functions (lcd.backlight() and lcd.noBacklight()).
   • Check for any damage to the backlight circuit.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, but you will need a logic level shifter to safely interface the 3.3V microcontroller with the 5V LCD module.

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch to detect the address. This is especially useful if the default address (0x27) does not work.

Q: Can I display custom characters on this LCD?
A: Yes, the LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for details.

Q: Is it possible to turn off the backlight programmatically?
A: Yes, use the lcd.noBacklight() function to turn off the backlight.

By following this documentation, you can effectively integrate and use the LCD 16x2 attached I2C module in your projects.
