Introduction

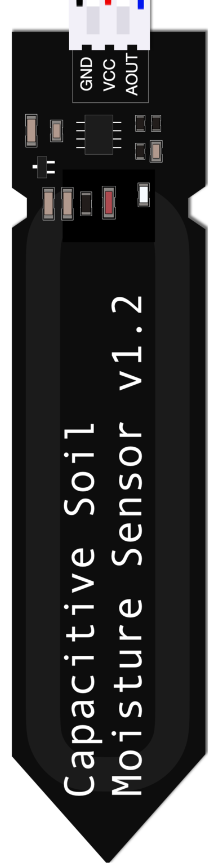

The Capacitive Soil Moisture Sensor v1.2 is a reliable and efficient tool for measuring the volumetric water content in soil. Unlike resistive soil moisture sensors, this sensor uses changes in capacitance to detect soil moisture levels, making it less prone to corrosion and more durable over time. It outputs an analog voltage that corresponds to the moisture level, which can be easily read by microcontrollers such as Arduino or Raspberry Pi.
Common Applications and Use Cases
- Automated irrigation systems
- Smart gardening projects
- Agricultural monitoring
- Environmental research
- DIY electronics and IoT projects
Technical Specifications
Below are the key technical details of the Capacitive Soil Moisture Sensor v1.2:
Pin Configuration and Descriptions
The Capacitive Soil Moisture Sensor v1.2 has three pins:
Usage Instructions
How to Use the Sensor in a Circuit
Wiring the Sensor:
- Connect the VCC pin of the sensor to the 3.3V or 5V pin of your microcontroller.
- Connect the GND pin of the sensor to the ground (GND) of your microcontroller.
- Connect the AOUT pin of the sensor to an analog input pin on your microcontroller (e.g., A0 on an Arduino UNO).
Power Requirements:
- Ensure the sensor is powered within its operating voltage range (3.3V - 5.5V).
- Avoid powering the sensor with voltages outside this range to prevent damage.
Reading the Output:
- The sensor outputs an analog voltage that corresponds to the soil moisture level. A higher voltage indicates drier soil, while a lower voltage indicates wetter soil.
Important Considerations and Best Practices
- Calibration: The sensor's output may vary depending on the soil type. Calibrate the sensor by testing it in dry and fully saturated soil to determine the voltage range for your specific application.
- Placement: Insert the sensor into the soil vertically, ensuring the sensing area is fully covered by soil for accurate readings.
- Avoid Corrosion: Although the sensor is designed to resist corrosion, avoid prolonged exposure to water or highly acidic/alkaline soils to extend its lifespan.
- Signal Noise: Use a capacitor (e.g., 0.1µF) between the AOUT pin and GND to reduce noise in the analog signal.
Example Code for Arduino UNO
Below is an example of how to use the Capacitive Soil Moisture Sensor v1.2 with an Arduino UNO:
// Define the analog pin connected to the sensor
const int sensorPin = A0;
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
pinMode(sensorPin, INPUT); // Set the sensor pin as an input
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert the reading to voltage
// Print the raw sensor value and voltage to the Serial Monitor
Serial.print("Sensor Value: ");
Serial.print(sensorValue);
Serial.print(" | Voltage: ");
Serial.println(voltage);
delay(1000); // Wait for 1 second before taking the next reading
}
Notes on the Code
- The
analogRead() function reads the sensor's output and returns a value between 0 and 1023.
- The voltage is calculated based on the Arduino's reference voltage (5V in this case). Adjust the formula if using a 3.3V system.
Troubleshooting and FAQs
Common Issues and Solutions
No Output or Incorrect Readings:
- Cause: Loose or incorrect wiring.
- Solution: Double-check all connections, ensuring the VCC, GND, and AOUT pins are properly connected.
Fluctuating or Noisy Readings:
- Cause: Electrical noise or unstable power supply.
- Solution: Add a decoupling capacitor (e.g., 0.1µF) between the AOUT pin and GND to stabilize the signal.
Sensor Not Responding:
- Cause: Sensor damaged or powered outside its operating voltage range.
- Solution: Verify the power supply voltage and replace the sensor if necessary.
Inconsistent Readings in Different Soils:
- Cause: Soil type affects capacitance.
- Solution: Calibrate the sensor for each soil type by measuring the output in dry and saturated conditions.
FAQs
Q1: Can this sensor be used outdoors?
A1: Yes, but it is recommended to protect the sensor from prolonged exposure to water and extreme environmental conditions to extend its lifespan.
Q2: How do I interpret the sensor's output?
A2: The sensor outputs an analog voltage. A higher voltage indicates drier soil, while a lower voltage indicates wetter soil. Calibrate the sensor for precise measurements.
Q3: Can I use this sensor with a 3.3V microcontroller?
A3: Yes, the sensor operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V systems.
Q4: How deep should I insert the sensor into the soil?
A4: Insert the sensor vertically, ensuring the sensing area is fully covered by soil for accurate readings.
By following this documentation, you can effectively integrate the Capacitive Soil Moisture Sensor v1.2 into your projects and achieve reliable soil moisture monitoring.
