How to Use Adafruit MAX4466 Electret Microphone Amplifier: Examples, Pinouts, and Specs

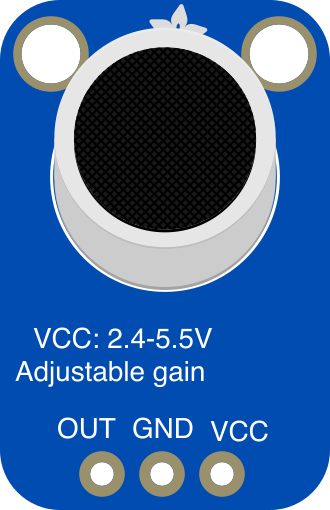

The Adafruit MAX4466 Electret Microphone Amplifier (Part ID: 1063) is a high-performance, low-noise microphone amplifier designed specifically for use with electret microphones. It features adjustable gain, a wide frequency response, and excellent signal-to-noise ratio, making it ideal for audio applications such as voice recognition, audio recording, and sound level detection.

• Voice recognition systems
• Audio recording devices
• Sound level monitoring
• DIY audio projects
• Environmental sound detection

The following table outlines the key technical details of the Adafruit MAX4466 Electret Microphone Amplifier:

The Adafruit MAX4466 Electret Microphone Amplifier has three pins, as described in the table below:

1. Power the Amplifier: Connect the VCC pin to a power source (2.4V to 5.5V) and the GND pin to the ground of your circuit.
2. Connect the Output: Use the OUT pin to retrieve the amplified audio signal. This can be connected to an analog input pin of a microcontroller (e.g., Arduino) or an audio processing circuit.
3. Adjust the Gain: Use the onboard potentiometer to adjust the gain of the amplifier. Turning the potentiometer clockwise increases the gain, while turning it counterclockwise decreases the gain.

• Power Supply Noise: Ensure that the power supply is clean and stable to avoid introducing noise into the audio signal.
• Microphone Placement: Place the microphone in an environment free from excessive noise or vibrations for optimal performance.
• Gain Adjustment: Start with a lower gain setting and gradually increase it to avoid clipping or distortion in the output signal.
• Decoupling Capacitor: Add a decoupling capacitor (e.g., 0.1 µF) between VCC and GND to reduce power supply noise.

Below is an example of how to connect the Adafruit MAX4466 Electret Microphone Amplifier to an Arduino UNO and read the audio signal:

• Connect the VCC pin of the amplifier to the 5V pin of the Arduino.
• Connect the GND pin of the amplifier to the GND pin of the Arduino.
• Connect the OUT pin of the amplifier to the A0 analog input pin of the Arduino.

// Example code to read audio signal from the MAX4466 microphone amplifier
// and display the analog values in the Serial Monitor.

const int micPin = A0; // Define the analog pin connected to the OUT pin of MAX4466

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int audioSignal = analogRead(micPin); // Read the analog value from the microphone
  Serial.println(audioSignal); // Print the audio signal value to the Serial Monitor
  delay(10); // Small delay to avoid overwhelming the Serial Monitor
}

1. No Output Signal

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check all connections, ensuring VCC, GND, and OUT are properly connected.

2. Distorted Audio Output

   • Cause: Gain is set too high, causing clipping.
   • Solution: Reduce the gain by turning the potentiometer counterclockwise.

3. Excessive Noise in Output

   • Cause: Power supply noise or environmental interference.
   • Solution: Use a decoupling capacitor between VCC and GND, and ensure the microphone is placed in a quiet environment.

4. Low Signal Strength

   • Cause: Gain is set too low or microphone placement is poor.
   • Solution: Increase the gain by turning the potentiometer clockwise, and ensure the microphone is close to the sound source.

Q: Can I use the MAX4466 with a 3.3V microcontroller?
A: Yes, the MAX4466 operates within a voltage range of 2.4V to 5.5V, making it compatible with 3.3V microcontrollers.

Q: How do I know if the gain is set correctly?
A: Monitor the output signal using an oscilloscope or the Serial Monitor of your microcontroller. Adjust the gain to avoid clipping or distortion.

Q: Can I use the MAX4466 for detecting specific frequencies?
A: The MAX4466 has a wide frequency response (20 Hz to 20 kHz), but it does not include built-in frequency filtering. You can use additional filters or software to isolate specific frequencies.

Q: Is the MAX4466 suitable for battery-powered projects?
A: Yes, the MAX4466 has low current consumption (~0.5 mA), making it ideal for battery-powered applications.
