How to Use MCP4921: Examples, Pinouts, and Specs

The MCP4921 is a 12-bit digital-to-analog converter (DAC) manufactured by Microchip Technology. It is designed to convert digital signals into precise analog voltages, making it an essential component in applications requiring digital-to-analog signal conversion. The MCP4921 features a single-channel output, an SPI (Serial Peripheral Interface) communication interface, and an internal reference voltage, ensuring high accuracy and ease of integration with microcontrollers.

• Audio signal processing
• Waveform generation
• Industrial control systems
• Data acquisition systems
• Analog signal reconstruction
• Precision voltage generation

• Resolution: 12 bits
• Output Voltage Range: 0V to VREF (reference voltage)
• Supply Voltage (VDD): 2.7V to 5.5V
• Reference Voltage (VREF): Up to VDD
• Output Settling Time: 4.5 µs (typical)
• Communication Interface: SPI (up to 20 MHz clock speed)
• Output Type: Buffered voltage output
• Operating Temperature Range: -40°C to +125°C
• Package Options: 8-pin PDIP, SOIC, MSOP

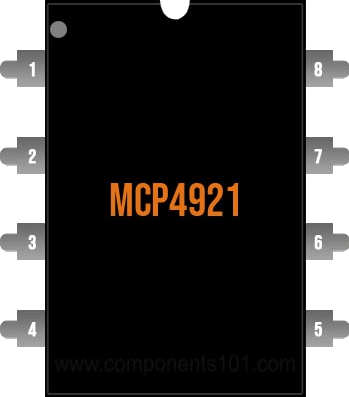

The MCP4921 is an 8-pin device. Below is the pinout and description:

1. Power Supply: Connect the VDD pin to a stable power supply (2.7V to 5.5V) and the GND pin to the system ground.
2. Reference Voltage: Provide a reference voltage to the VREF pin. This voltage determines the maximum output range of the DAC.
3. SPI Communication:
   • Connect the CS, SCK, and SDI pins to the corresponding SPI pins on the microcontroller.
   • Ensure the SPI clock speed does not exceed 20 MHz.
4. Output Connection: Connect the VOUT pin to the desired load or circuit where the analog signal is required.
5. Latch Control: Use the LDAC pin to control when the DAC output is updated. Alternatively, tie LDAC to GND for automatic updates.

• Use decoupling capacitors (e.g., 0.1 µF and 10 µF) between VDD and GND to reduce noise and ensure stable operation.
• Ensure the reference voltage (VREF) is stable and within the specified range for accurate output.
• Avoid exceeding the maximum voltage ratings to prevent damage to the device.
• If unused, tie the LDAC pin to GND for automatic DAC updates.

Below is an example of how to interface the MCP4921 with an Arduino UNO to generate an analog voltage:

• MCP4921 Pin 1 (VDD): Connect to 5V on Arduino.
• MCP4921 Pin 8 (GND): Connect to GND on Arduino.
• MCP4921 Pin 2 (CS): Connect to Arduino pin 10.
• MCP4921 Pin 3 (SCK): Connect to Arduino pin 13.
• MCP4921 Pin 4 (SDI): Connect to Arduino pin 11.
• MCP4921 Pin 5 (LDAC): Connect to GND (automatic updates).
• MCP4921 Pin 7 (VREF): Connect to 5V (reference voltage).

#include <SPI.h>

// Define MCP4921 pins
const int CS_PIN = 10; // Chip Select pin

void setup() {
  pinMode(CS_PIN, OUTPUT);
  digitalWrite(CS_PIN, HIGH); // Set CS pin high initially
  SPI.begin(); // Initialize SPI communication
}

void loop() {
  uint16_t value = 2048; // Example: 12-bit value (0 to 4095)
  sendToDAC(value);
  delay(1000); // Update every second
}

void sendToDAC(uint16_t value) {
  // Ensure value is 12-bit
  value &= 0x0FFF;

  // Split value into two bytes
  byte highByte = (value >> 8) & 0xFF; // Upper 8 bits
  byte lowByte = value & 0xFF;         // Lower 8 bits

  // Add configuration bits to highByte
  highByte |= 0x30; // Set control bits: 0b0011xxxx

  // Begin SPI transaction
  digitalWrite(CS_PIN, LOW); // Select MCP4921
  SPI.transfer(highByte);    // Send high byte
  SPI.transfer(lowByte);     // Send low byte
  digitalWrite(CS_PIN, HIGH); // Deselect MCP4921
}

1. No Output Voltage:

   • Ensure the power supply (VDD) and ground (GND) are properly connected.
   • Verify that the reference voltage (VREF) is stable and within the specified range.
   • Check SPI connections and ensure the CS pin is toggled correctly.

2. Incorrect Output Voltage:

   • Confirm that the digital value sent to the DAC is within the 12-bit range (0 to 4095).
   • Verify that the SPI clock speed does not exceed 20 MHz.
   • Check for noise or instability in the reference voltage.

3. Output Voltage Not Updating:

   • Ensure the LDAC pin is tied to GND for automatic updates or toggled correctly in the circuit.
   • Verify that the SPI data is being sent correctly and in the proper format.

Q1: Can the MCP4921 operate with a 3.3V microcontroller?
A1: Yes, the MCP4921 can operate with a 3.3V supply and reference voltage, making it compatible with 3.3V microcontrollers.

Q2: What is the maximum output voltage of the MCP4921?
A2: The maximum output voltage is equal to the reference voltage (VREF), which can be up to the supply voltage (VDD).

Q3: Can I use the MCP4921 for audio applications?
A3: Yes, the MCP4921 is suitable for audio applications, as it provides a high-resolution 12-bit output and fast settling time.
