How to Use TB6600 DRIVER: Examples, Pinouts, and Specs

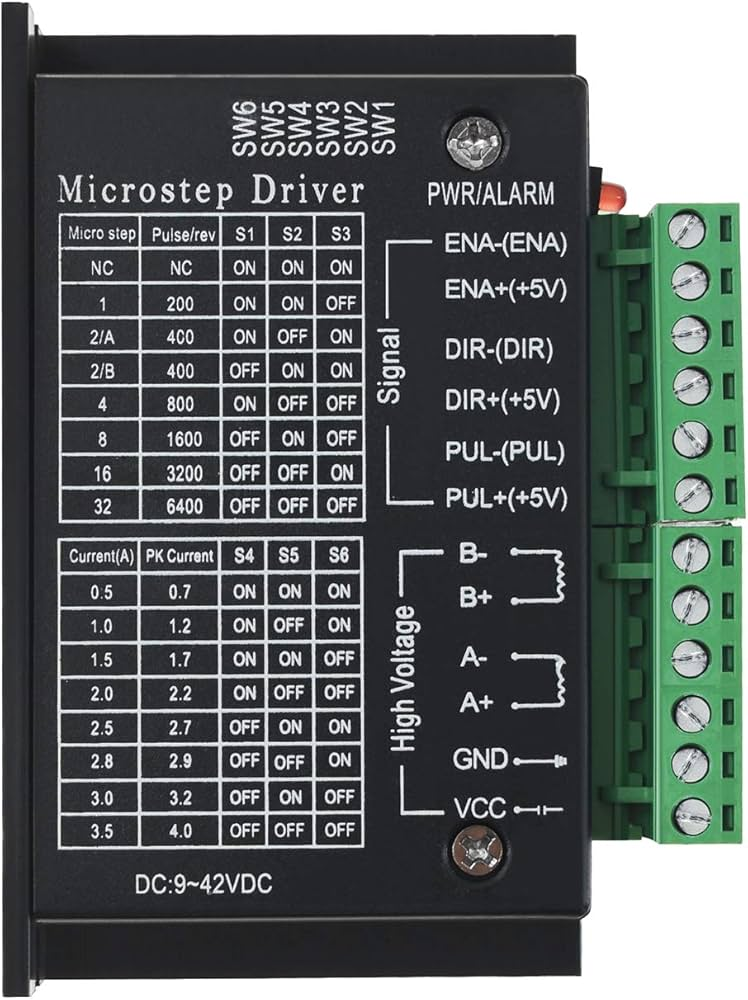

Image of TB6600 DRIVER
Cirkit Designer LogoDesign with TB6600 DRIVER in Cirkit Designer

Introduction

The TB6600 is a stepper motor driver designed to provide precise control of stepper motors. It supports a wide range of input voltages (up to 40V) and can drive motors with high current ratings (up to 4.5A). This makes it an ideal choice for applications requiring accurate motor control, such as robotics, CNC machinery, 3D printers, and automated systems. The TB6600 is known for its reliability, ease of use, and compatibility with various microcontrollers, including Arduino.

Explore Projects Built with TB6600 DRIVER

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
Image of Jayshree CNC: A project utilizing TB6600 DRIVER in a practical application
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6600 DRIVER in a practical application
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer
TB6600 Stepper Motor Driver with CNC Control and Power Management
Image of Webeco FluidNC: A project utilizing TB6600 DRIVER in a practical application
This circuit controls three TB6600 stepper motor drivers, which are connected to a 6xCNC controller for driving three separate stepper motors. A MW LRS-350-24 power supply provides +24V to the drivers and the CNC controller. Additionally, a 12V relay with a flyback diode is interfaced with the CNC controller for switching purposes, and a potentiometer is connected for analog input to the controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Stepper Motor Control System with SIMATIC S7-300 and TB6600 Driver
Image of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6600 DRIVER in a practical application
This circuit controls a stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered through panel mount banana sockets and includes a relay module for additional control, interfaced with a SIMATIC S7-300 PLC for automation.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TB6600 DRIVER

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Jayshree CNC: A project utilizing TB6600 DRIVER in a practical application
CNC Machine Control System with Dual tb6600 Stepper Drivers and MAch3 USB Interface
This circuit appears to be a control system for a CNC machine or similar automated equipment. It includes two tb6600 Micro Stepping Motor Drivers for controlling stepper motors, a DC power source with a step-down buck converter to provide the necessary voltage levels, and a 4-channel relay module for switching higher power loads. The MAch3 CNC USB interface suggests the system is designed to interface with computer numerical control software, and the RMCS_3001 BLDC Driver indicates the presence of a brushless DC motor control. The Tiva C launchpad microcontroller and various connectors imply that the system is modular and may be programmable for specific automation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6600 DRIVER in a practical application
Stepper Motor Control System with TB6600 Driver and DKC-1A Controller
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Webeco FluidNC: A project utilizing TB6600 DRIVER in a practical application
TB6600 Stepper Motor Driver with CNC Control and Power Management
This circuit controls three TB6600 stepper motor drivers, which are connected to a 6xCNC controller for driving three separate stepper motors. A MW LRS-350-24 power supply provides +24V to the drivers and the CNC controller. Additionally, a 12V relay with a flyback diode is interfaced with the CNC controller for switching purposes, and a potentiometer is connected for analog input to the controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of PLC-Based Step Motor Speed and Direction Control System: A project utilizing TB6600 DRIVER in a practical application
Stepper Motor Control System with SIMATIC S7-300 and TB6600 Driver
This circuit controls a stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered through panel mount banana sockets and includes a relay module for additional control, interfaced with a SIMATIC S7-300 PLC for automation.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The TB6600 driver offers robust performance and flexibility. Below are its key technical details:

Key Specifications

Parameter Value
Input Voltage Range 9V to 40V
Maximum Output Current 4.5A
Microstepping Modes Full, 1/2, 1/4, 1/8, 1/16
Control Signal Voltage 3.3V to 5V (logic level)
Operating Temperature -10°C to +45°C
Dimensions 96mm x 56mm x 33mm

Pin Configuration and Descriptions

The TB6600 driver has several input and output terminals for connecting to a microcontroller, power supply, and stepper motor. Below is the pin configuration:

Input Terminals

Pin Name Description
PUL+ Pulse signal input (positive terminal)
PUL- Pulse signal input (negative terminal)
DIR+ Direction signal input (positive terminal)
DIR- Direction signal input (negative terminal)
ENA+ Enable signal input (positive terminal) (optional, used to enable/disable)
ENA- Enable signal input (negative terminal)

Output Terminals

Pin Name Description
A+ Connect to stepper motor coil A (positive terminal)
A- Connect to stepper motor coil A (negative terminal)
B+ Connect to stepper motor coil B (positive terminal)
B- Connect to stepper motor coil B (negative terminal)

Power Terminals

Pin Name Description
VCC Connect to the positive terminal of the power supply (9V to 40V)
GND Connect to the negative terminal of the power supply

Usage Instructions

How to Use the TB6600 in a Circuit

  1. Connect the Stepper Motor:

    • Connect the stepper motor's coils to the A+/- and B+/- terminals of the TB6600.
    • Ensure the wiring matches the motor's datasheet to avoid incorrect connections.
  2. Connect the Power Supply:

    • Connect the VCC and GND terminals to a DC power supply within the voltage range of 9V to 40V.
    • Ensure the power supply can provide sufficient current for the motor.
  3. Connect to a Microcontroller:

    • Connect the PUL+, DIR+, and ENA+ pins to the microcontroller's digital output pins.
    • Connect the PUL-, DIR-, and ENA- pins to the microcontroller's GND.
  4. Set Microstepping and Current:

    • Use the DIP switches on the TB6600 to configure the microstepping mode and current limit.
    • Refer to the TB6600 datasheet for the DIP switch settings.
  5. Write Control Code:

    • Use a microcontroller (e.g., Arduino) to send pulse and direction signals to the TB6600.
    • The pulse signal controls the stepper motor's movement, while the direction signal determines the rotation direction.

Important Considerations and Best Practices

  • Cooling: The TB6600 can generate heat during operation. Ensure proper ventilation or use a heatsink to prevent overheating.
  • Power Supply: Use a stable and adequately rated power supply to avoid voltage fluctuations.
  • Signal Voltage: Ensure the control signals from the microcontroller are within the 3.3V to 5V range.
  • Wiring: Double-check all connections before powering on the system to avoid damage to the driver or motor.

Example Code for Arduino UNO

Below is an example code to control a stepper motor using the TB6600 and Arduino UNO:

// Define pin connections
#define PUL_PIN 3  // Pulse signal pin
#define DIR_PIN 4  // Direction signal pin
#define ENA_PIN 5  // Enable signal pin

void setup() {
  // Set pin modes
  pinMode(PUL_PIN, OUTPUT);
  pinMode(DIR_PIN, OUTPUT);
  pinMode(ENA_PIN, OUTPUT);

  // Enable the driver
  digitalWrite(ENA_PIN, LOW);  // LOW enables the driver
}

void loop() {
  // Set direction
  digitalWrite(DIR_PIN, HIGH);  // HIGH for clockwise, LOW for counterclockwise

  // Generate pulses to move the motor
  for (int i = 0; i < 200; i++) {  // 200 steps for one revolution (example)
    digitalWrite(PUL_PIN, HIGH);  // Pulse HIGH
    delayMicroseconds(500);       // Adjust delay for speed control
    digitalWrite(PUL_PIN, LOW);   // Pulse LOW
    delayMicroseconds(500);       // Adjust delay for speed control
  }

  delay(1000);  // Wait for 1 second before changing direction
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Not Moving:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Verify all connections and ensure the power supply meets the voltage and current requirements.
  2. Motor Vibrates but Does Not Rotate:

    • Cause: Incorrect microstepping settings or wiring mismatch.
    • Solution: Check the DIP switch settings and ensure the motor coils are connected correctly.
  3. Driver Overheating:

    • Cause: High current settings or poor ventilation.
    • Solution: Reduce the current limit using the DIP switches and improve cooling.
  4. Inconsistent Motor Movement:

    • Cause: Noise in control signals or unstable power supply.
    • Solution: Use shielded cables for signal lines and ensure a stable power source.

FAQs

  • Can the TB6600 work with 3.3V logic microcontrollers? Yes, the TB6600 supports control signals as low as 3.3V, making it compatible with 3.3V logic devices.

  • What is the maximum step rate for the TB6600? The TB6600 can handle pulse frequencies up to 200 kHz.

  • Do I need to use the ENA pins? The ENA pins are optional. If not used, leave them disconnected or set them to LOW to enable the driver.

  • Can I use the TB6600 with a NEMA 17 stepper motor? Yes, the TB6600 is compatible with NEMA 17, NEMA 23, and other stepper motors, provided the motor's current and voltage ratings are within the driver's limits.
