Introduction

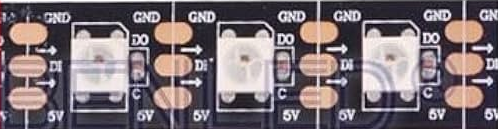

Neopixels, manufactured by Adafruit with the part ID WS2812B, are individually addressable RGB LED strips. Each LED in the strip contains a built-in driver chip, allowing for precise control of color and brightness. These LEDs are capable of producing millions of colors and can be programmed to create stunning lighting effects and animations.

Neopixels are widely used in:

• Decorative lighting and art installations
• Wearable electronics
• Robotics and hobby projects
• Custom displays and signage
• Interactive projects with microcontrollers like Arduino

Explore Projects Built with Neopixel

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Battery-Powered Adafruit Flora RGB NeoPixel Light Show

This circuit consists of an Adafruit Flora v3 microcontroller connected to a Breadboard-friendly RGB Smart NeoPixel and powered by a 3xAAA battery pack. The microcontroller runs code to control the NeoPixel, displaying various colors and patterns.

Open Project in Cirkit Designer

Arduino-Powered NeoPixel Light Show with Multiple Rings

This circuit features an Arduino UNO microcontroller controlling three Adafruit NeoPixel Rings, which are connected in a chain. The code programmed into the Arduino sequentially lights up each pixel in green, creating a visual effect across the rings. The circuit is designed to demonstrate basic control of addressable RGB LEDs using the Arduino platform.

Open Project in Cirkit Designer

Arduino Nano Controlled Sound and Light Effects System with NeoPixel LEDs

This circuit features an Arduino Nano microcontroller connected to a series of WS2812B LEDs, Adafruit NeoPixel Jewels, and Sticks, forming an addressable LED array. The Arduino controls the LED patterns and sequences, and interfaces with an Adafruit Audio FX Mini Sound Board for audio playback, which is amplified by an Adafruit PAM8302 amplifier connected to piezo speakers. The circuit includes toggle and push switches for user interaction, and uses a lipo battery with MP1584EN power regulators for power management. The embedded code on the Arduino facilitates complex lighting effects and sound playback, responding to switch states and button presses to create an interactive experience.

Open Project in Cirkit Designer

Arduino UNO Controlled NeoPixel Ring Light Show

This circuit consists of an Arduino UNO microcontroller connected to six Adafruit 12 NeoPixel Rings, each with 12 LEDs, for a total of 72 LEDs. The Arduino controls the LEDs to display a yellow color with varying brightness, creating a pulsating effect.

Open Project in Cirkit Designer

Technical Specifications

Below are the key technical details for the WS2812B Neopixel:

Pin Configuration

The WS2812B Neopixel typically has three pins:

For strips, the data output (DOUT) of one LED connects to the data input (DIN) of the next LED in the chain.

Usage Instructions

Connecting Neopixels to a Circuit

1. Power Supply: Use a 5V power supply capable of providing sufficient current. Each LED can draw up to 60mA at full brightness, so calculate the total current requirement based on the number of LEDs.
2. Data Line: Connect the DIN pin of the first LED to a digital output pin on your microcontroller. Use a resistor (330–470 ohms) in series with the data line to protect the LEDs.
3. Capacitor: Place a 1000 µF capacitor (6.3V or higher) across the VDD and GND pins to stabilize the power supply.
4. Grounding: Ensure all grounds (microcontroller, power supply, and Neopixel strip) are connected.

Example Code for Arduino UNO

Below is an example of how to control a Neopixel strip using the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the Neopixel data line
#define PIN 6

// Define the number of LEDs in the strip
#define NUM_LEDS 16

// Create a NeoPixel object
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin(); // Initialize the Neopixel strip
  strip.show();  // Turn off all LEDs initially
}

void loop() {
  // Call a function to display a rainbow effect
  rainbowCycle(20); // Adjust the delay for speed
}

// Function to create a rainbow effect
void rainbowCycle(uint8_t wait) {
  uint16_t i, j;

  for (j = 0; j < 256 * 5; j++) { // 5 cycles of all colors
    for (i = 0; i < strip.numPixels(); i++) {
      // Calculate color for each pixel
      strip.setPixelColor(i, Wheel(((i * 256 / strip.numPixels()) + j) & 255));
    }
    strip.show(); // Update the strip with new colors
    delay(wait);  // Pause for the specified time
  }
}

// Helper function to generate rainbow colors
uint32_t Wheel(byte WheelPos) {
  WheelPos = 255 - WheelPos;
  if (WheelPos < 85) {
    return strip.Color(255 - WheelPos * 3, 0, WheelPos * 3);
  } else if (WheelPos < 170) {
    WheelPos -= 85;
    return strip.Color(0, WheelPos * 3, 255 - WheelPos * 3);
  } else {
    WheelPos -= 170;
    return strip.Color(WheelPos * 3, 255 - WheelPos * 3, 0);
  }
}

Best Practices

• Always use a level shifter if your microcontroller operates at 3.3V logic, as the WS2812B requires 5V logic for reliable operation.
• Avoid powering the Neopixels directly from the microcontroller's 5V pin, as it may not provide enough current.
• Use proper heat dissipation methods if running the LEDs at high brightness for extended periods.

Troubleshooting and FAQs

Common Issues

1. LEDs not lighting up:

   • Check the power supply voltage and current capacity.
   • Verify that the DIN pin is connected to the correct microcontroller pin.
   • Ensure the ground connections are secure.

2. Flickering or incorrect colors:

   • Add a resistor (330–470 ohms) in series with the data line.
   • Use a capacitor (1000 µF) across the power supply to reduce noise.
   • Check for proper timing in the code, especially if using a non-Adafruit library.

3. Only the first LED works:

   • Ensure the data output (DOUT) of the first LED is connected to the data input (DIN) of the next LED.
   • Check for damaged LEDs in the chain.

FAQs

Q: Can I cut the Neopixel strip to a custom length?
A: Yes, Neopixel strips can be cut at the marked cut lines between LEDs. Ensure you reconnect the VDD, GND, and DIN/DOUT lines properly.

Q: How many Neopixels can I control with an Arduino?
A: The number depends on the available memory of your microcontroller. For an Arduino UNO, you can typically control up to ~500 LEDs.

Q: Can I power Neopixels with a battery?
A: Yes, but ensure the battery can provide sufficient voltage (5V) and current for the number of LEDs in your project.

By following this documentation, you can effectively integrate and troubleshoot Adafruit WS2812B Neopixels in your projects!
