How to Use LM2956 Buck Converter DC-DC: Examples, Pinouts, and Specs

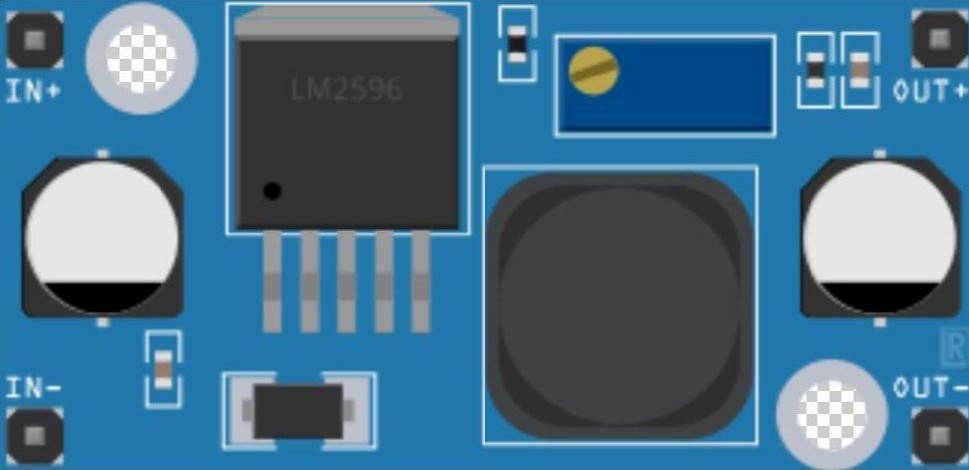

Image of LM2956 Buck Converter DC-DCDesign with LM2956 Buck Converter DC-DC in Cirkit Designer

Introduction

The LM2956 is a step-down (buck) DC-DC converter designed to efficiently convert a higher input voltage to a lower output voltage. It is widely used in power supply applications due to its high efficiency, wide input voltage range, and integrated protection features. The LM2956 is ideal for powering microcontrollers, sensors, and other low-voltage devices from higher voltage sources such as batteries or adapters.

Explore Projects Built with LM2956 Buck Converter DC-DC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.23V to 37V
Output Current Up to 3A
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +125°C
Protection Features Overcurrent, thermal shutdown

Pin Configuration and Descriptions

The LM2956 is typically available in a 5-pin TO-220 or TO-263 package. Below is the pinout description:

Pin Number Pin Name Description
1 VIN Input voltage pin (4.5V to 40V)
2 VOUT Output voltage pin (1.23V to 37V)
3 GND Ground pin
4 FB Feedback pin for setting the output voltage
5 EN (Enable) Enable pin to turn the converter on or off

Usage Instructions

How to Use the LM2956 in a Circuit

  1. Input Voltage: Connect the input voltage source (4.5V to 40V) to the VIN pin. Ensure the input voltage is higher than the desired output voltage.
  2. Output Voltage: Connect the load to the VOUT pin. Use a feedback resistor divider network connected to the FB pin to set the desired output voltage.
  3. Ground: Connect the GND pin to the ground of the circuit.
  4. Enable Pin: If the EN pin is available, connect it to a logic high signal to enable the converter. Pull it low to disable the converter.
  5. Capacitors: Place input and output capacitors close to the VIN and VOUT pins to stabilize the voltage and reduce noise.
  6. Inductor: Select an appropriate inductor value based on the desired output current and voltage ripple.

Example Circuit

Below is a basic circuit diagram for using the LM2956:

VIN ----[Input Capacitor]----+----> LM2956 ----[Output Capacitor]---- VOUT
                             |                  |
                            GND                GND

Arduino UNO Example Code

The LM2956 can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Here's an example code to demonstrate its use:

// Example: Reading a sensor powered by LM2956
// Ensure the LM2956 output is set to 5V to power the Arduino UNO.

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

Important Considerations

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check if the EN pin is properly connected to a logic high signal.
    • Verify the input voltage is within the specified range (4.5V to 40V).
    • Inspect the circuit for loose connections or soldering issues.
  2. Output Voltage is Incorrect:

    • Verify the feedback resistor values and ensure they are correctly calculated for the desired output voltage.
    • Check for damaged components, such as the inductor or capacitors.
  3. Overheating:

    • Ensure proper heat dissipation by using a heatsink or improving airflow around the component.
    • Verify the load current does not exceed the maximum rating of 3A.
  4. High Output Ripple:

    • Use low-ESR capacitors for input and output filtering.
    • Ensure the inductor value is appropriate for the desired output current.

FAQs

Q: Can the LM2956 be used to power a 3.3V device?
A: Yes, the LM2956 can step down the input voltage to 3.3V. Adjust the feedback resistor network to set the output voltage to 3.3V.

Q: What is the maximum input voltage for the LM2956?
A: The maximum input voltage is 40V. Exceeding this value may damage the component.

Q: How do I calculate the feedback resistor values?
A: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R_1}{R_2}\right) ]
Where ( V_{REF} ) is 1.23V, ( R_1 ) is the resistor connected between VOUT and FB, and ( R_2 ) is the resistor connected between FB and ground.

Q: Can the LM2956 operate without a heatsink?
A: It depends on the load current and input voltage. For high currents or large voltage drops, a heatsink is recommended to prevent overheating.
