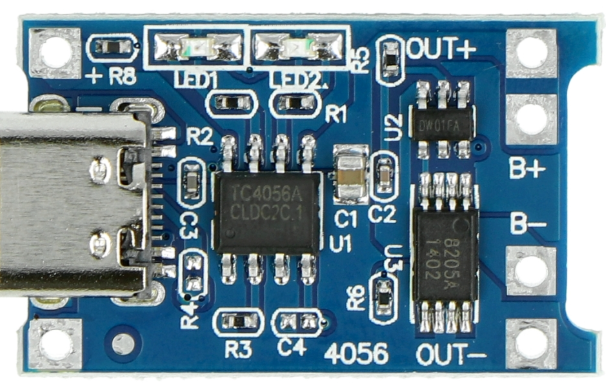

Image of TP4056
Cirkit Designer LogoDesign with TP4056 in Cirkit Designer

Introduction

The TP4056, manufactured by Makers (Part ID: TP4036), is a lithium-ion battery charger IC designed for single-cell lithium-ion batteries. It provides a constant current/constant voltage (CC/CV) charging profile, ensuring safe and efficient charging. The IC integrates features such as thermal regulation, over-voltage protection, and automatic charge termination, making it a reliable choice for battery-powered applications.

Explore Projects Built with TP4056

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Battery-Powered Multi-Sensor System
Image of Dive sense: A project utilizing TP4056 in a practical application
This circuit consists of a TP4056 module connected to a 3.7V LiPo battery, providing a charging interface for the battery. The TP4056 manages the charging process by connecting its B+ and B- pins to the battery's positive and ground terminals, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Powered Wi-Fi Controlled Robotic Car with OLED Display and Ultrasonic Sensor
Image of playbot: A project utilizing TP4056 in a practical application
This circuit is a battery-powered system featuring an ESP32 microcontroller that controls an OLED display, a motor driver for two hobby motors, an ultrasonic sensor for distance measurement, and a DFPlayer Mini for audio output through a loudspeaker. The TP4056 module manages battery charging, and a step-up boost converter provides a stable 5V supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Raspberry Pi Pico GPS Tracker with Sensor Integration
Image of Copy of CanSet v1: A project utilizing TP4056 in a practical application
This circuit is a data acquisition and communication system powered by a LiPoly battery and managed by a Raspberry Pi Pico. It includes sensors (BMP280, MPU9250) for environmental data, a GPS module for location tracking, an SD card for data storage, and a WLR089-CanSAT for wireless communication. The TP4056 module handles battery charging, and a toggle switch controls power distribution.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Motor Speed Controller with TP4056 and ESP32
Image of Stimulator: A project utilizing TP4056 in a practical application
This circuit is designed to control the speed of a motor using a PWM motor speed controller powered by a Lithium-Ion battery. The TP4056 module manages battery charging, while a step-up boost converter regulates the voltage supplied to the motor and an Elektro Pad. A rocker switch is included to control the power flow to the motor speed controller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with TP4056

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Dive sense: A project utilizing TP4056 in a practical application
ESP32-Based Battery-Powered Multi-Sensor System
This circuit consists of a TP4056 module connected to a 3.7V LiPo battery, providing a charging interface for the battery. The TP4056 manages the charging process by connecting its B+ and B- pins to the battery's positive and ground terminals, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of playbot: A project utilizing TP4056 in a practical application
ESP32-Powered Wi-Fi Controlled Robotic Car with OLED Display and Ultrasonic Sensor
This circuit is a battery-powered system featuring an ESP32 microcontroller that controls an OLED display, a motor driver for two hobby motors, an ultrasonic sensor for distance measurement, and a DFPlayer Mini for audio output through a loudspeaker. The TP4056 module manages battery charging, and a step-up boost converter provides a stable 5V supply to the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of CanSet v1: A project utilizing TP4056 in a practical application
Battery-Powered Raspberry Pi Pico GPS Tracker with Sensor Integration
This circuit is a data acquisition and communication system powered by a LiPoly battery and managed by a Raspberry Pi Pico. It includes sensors (BMP280, MPU9250) for environmental data, a GPS module for location tracking, an SD card for data storage, and a WLR089-CanSAT for wireless communication. The TP4056 module handles battery charging, and a toggle switch controls power distribution.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Stimulator: A project utilizing TP4056 in a practical application
Battery-Powered Motor Speed Controller with TP4056 and ESP32
This circuit is designed to control the speed of a motor using a PWM motor speed controller powered by a Lithium-Ion battery. The TP4056 module manages battery charging, while a step-up boost converter regulates the voltage supplied to the motor and an Elektro Pad. A rocker switch is included to control the power flow to the motor speed controller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Charging single-cell lithium-ion or lithium-polymer batteries
  • Power banks and portable chargers
  • Wearable devices and IoT gadgets
  • Battery management systems
  • DIY electronics projects

Technical Specifications

The TP4056 is a compact and efficient charging IC with the following key specifications:

Parameter Value
Input Voltage Range 4.0V to 8.0V
Charging Voltage 4.2V ± 1%
Maximum Charging Current 1A (adjustable via external resistor)
Charging Method Constant Current/Constant Voltage (CC/CV)
Operating Temperature Range -40°C to +85°C
Standby Current < 2µA
Thermal Regulation 120°C (automatic current reduction)
Package Type SOP-8

Pin Configuration and Descriptions

The TP4056 IC has 8 pins, each serving a specific function. Below is the pin configuration:

Pin Number Pin Name Description
1 TEMP Temperature sense input. Connect to an NTC thermistor for battery temperature monitoring.
2 PROG Programs the charging current. Connect a resistor to ground to set the current.
3 GND Ground pin. Connect to the system ground.
4 VCC Input supply voltage. Connect to a DC source (4.0V to 8.0V).
5 BAT Battery connection pin. Connect directly to the positive terminal of the battery.
6 STDBY Open-drain status output. Indicates charging status (low = charging, high = standby).
7 CHRG Open-drain status output. Indicates charging in progress (low = charging).
8 CE Chip enable. Active low. Pull low to enable the IC, or high to disable it.

Usage Instructions

How to Use the TP4056 in a Circuit

  1. Power Supply: Connect a DC power source (e.g., USB 5V) to the VCC pin. Ensure the input voltage is within the range of 4.0V to 8.0V.
  2. Battery Connection: Connect the positive terminal of the lithium-ion battery to the BAT pin and the negative terminal to GND.
  3. Programming Charging Current: Use a resistor (RPROG) between the PROG pin and GND to set the charging current. The charging current can be calculated using the formula: [ I_{CHG} = \frac{1200}{R_{PROG}} ] For example, a 1.2kΩ resistor sets the charging current to 1A.
  4. Temperature Monitoring: Connect an NTC thermistor to the TEMP pin for battery temperature monitoring. If not used, connect TEMP to GND.
  5. Status Indicators: Use LEDs with pull-up resistors on the CHRG and STDBY pins to indicate charging status.

Important Considerations and Best Practices

  • Ensure proper heat dissipation, as the IC may heat up during operation. Use a heat sink or proper PCB layout for thermal management.
  • Do not exceed the maximum input voltage of 8.0V to avoid damaging the IC.
  • Use a high-quality lithium-ion battery with built-in protection circuitry for safety.
  • If using the TP4056 with an Arduino UNO or other microcontroller, ensure the battery voltage is monitored to prevent over-discharge.

Example Arduino Code for Monitoring Battery Voltage

The following code demonstrates how to monitor the battery voltage using an Arduino UNO:

// Define the analog pin connected to the battery voltage divider
const int batteryPin = A0;

// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive terminal
const float R2 = 10000.0; // Resistor connected to ground

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(batteryPin); // Read the analog value
  float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage (Arduino 5V reference)

  // Calculate the actual battery voltage using the voltage divider formula
  float batteryVoltage = voltage * ((R1 + R2) / R2);

  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. IC Overheating

    • Cause: Excessive charging current or insufficient heat dissipation.
    • Solution: Reduce the charging current by increasing the RPROG resistor value. Ensure proper PCB layout for heat dissipation.
  2. Battery Not Charging

    • Cause: Incorrect wiring or damaged battery.
    • Solution: Verify all connections. Ensure the battery is functional and within the supported voltage range.
  3. Status LEDs Not Working

    • Cause: Missing pull-up resistors or incorrect LED connections.
    • Solution: Add pull-up resistors (e.g., 10kΩ) to the CHRG and STDBY pins. Check LED polarity.
  4. Input Voltage Out of Range

    • Cause: Using a power source outside the 4.0V to 8.0V range.
    • Solution: Use a regulated DC power source within the specified range.

FAQs

Q1: Can the TP4056 charge multiple batteries in series?
A1: No, the TP4056 is designed for single-cell lithium-ion batteries only. Charging multiple cells in series requires a specialized battery management system.

Q2: What happens if the battery temperature exceeds the safe range?
A2: If a thermistor is connected to the TEMP pin, the TP4056 will stop charging when the temperature is outside the safe range.

Q3: Can I use the TP4056 with a solar panel?
A3: Yes, but ensure the solar panel output voltage is within the 4.0V to 8.0V range and use a capacitor to stabilize the input voltage.

Q4: How do I adjust the charging voltage?
A4: The charging voltage is fixed at 4.2V and cannot be adjusted. For other voltages, consider using a different IC.
