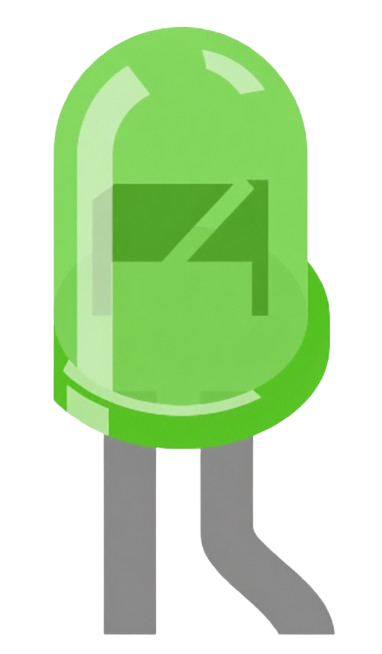

Image of Green LED
Cirkit Designer LogoDesign with Green LED in Cirkit Designer

Introduction

A Green LED (Light-Emitting Diode) is a semiconductor device that emits green light when an electric current flows through it. It is widely used in electronic circuits as an indicator, status light, or part of a display system. Green LEDs are valued for their low power consumption, long lifespan, and high visibility.

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing Green LED in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Green LED in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor with LED Indicator
Image of ir home automation: A project utilizing Green LED in a practical application
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO LED Blinker with Resistor
Image of blink_led_uno: A project utilizing Green LED in a practical application
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing Green LED in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Green LED in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir home automation: A project utilizing Green LED in a practical application
Battery-Powered IR Sensor with LED Indicator
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blink_led_uno: A project utilizing Green LED in a practical application
Arduino UNO LED Blinker with Resistor
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Signal lights in control panels
  • Part of multi-color LED displays
  • Decorative lighting and visual effects
  • Educational and DIY electronics projects

Technical Specifications

Below are the typical specifications for a standard Green LED. Note that actual values may vary slightly depending on the manufacturer.

Parameter Value
Forward Voltage (Vf) 2.0V to 3.2V
Forward Current (If) 10mA to 20mA
Maximum Reverse Voltage 5V
Wavelength 520nm to 570nm (green light)
Viewing Angle 20° to 60°
Power Dissipation 75mW (typical)
Operating Temperature -40°C to +85°C

Pin Configuration

Green LEDs typically have two pins: the anode (positive) and the cathode (negative). The longer pin is the anode, and the shorter pin is the cathode. The cathode is also marked by a flat edge on the LED casing.

Pin Name Description
1 Anode (+) Connect to the positive terminal of the power source
2 Cathode (-) Connect to the negative terminal or ground

Usage Instructions

How to Use a Green LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (e.g., 10mA)

    For example, if (V_{supply} = 5V), (V_f = 2.2V), and (I_f = 10mA): [ R = \frac{5V - 2.2V}{0.01A} = 280\Omega ] Use the nearest standard resistor value (e.g., 270Ω or 330Ω).

  2. Connect the LED:

    • Connect the anode to the positive terminal of the power source through the resistor.
    • Connect the cathode to the ground.
  3. Test the Circuit: Power the circuit and observe the green light emitted by the LED.

Important Considerations

  • Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
  • Current Limiting: Always use a resistor to limit the current through the LED.
  • Brightness Control: Use Pulse Width Modulation (PWM) to adjust the brightness of the LED.
  • Series and Parallel Connections: When using multiple LEDs, calculate the resistor values for each configuration.

Example: Connecting a Green LED to an Arduino UNO

Below is an example of how to connect and control a Green LED using an Arduino UNO.

Circuit Setup

  • Connect the anode of the Green LED to digital pin 9 on the Arduino through a 330Ω resistor.
  • Connect the cathode to the Arduino's GND pin.

Arduino Code

// Green LED Blink Example
// This code blinks a Green LED connected to pin 9 of the Arduino UNO.

const int ledPin = 9; // Define the pin connected to the Green LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Check the polarity of the LED. Ensure the anode is connected to the positive terminal and the cathode to ground.
    • Verify the resistor value. A resistor with too high a value may prevent the LED from lighting up.
    • Ensure the power supply voltage is sufficient to exceed the forward voltage of the LED.
  2. LED is Too Dim:

    • Check the resistor value. A lower resistance may increase brightness but ensure the current does not exceed the LED's maximum rating.
    • Verify the power supply voltage.
  3. LED Burns Out:

    • Ensure a current-limiting resistor is used.
    • Verify that the supply voltage does not exceed the LED's maximum ratings.
  4. Flickering LED:

    • Check for loose connections in the circuit.
    • If using PWM, ensure the frequency is appropriate for the application.

FAQs

Q: Can I connect a Green LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: How do I know the polarity of the LED?
A: The longer pin is the anode (positive), and the shorter pin is the cathode (negative). The cathode side may also have a flat edge on the LED casing.

Q: Can I use a Green LED with a 3.3V power supply?
A: Yes, as long as the forward voltage of the LED is less than 3.3V and you use an appropriate resistor to limit the current.

Q: How do I control the brightness of a Green LED?
A: Use PWM (Pulse Width Modulation) to adjust the brightness by varying the duty cycle of the signal applied to the LED.

By following these guidelines, you can effectively use a Green LED in your electronic projects.
