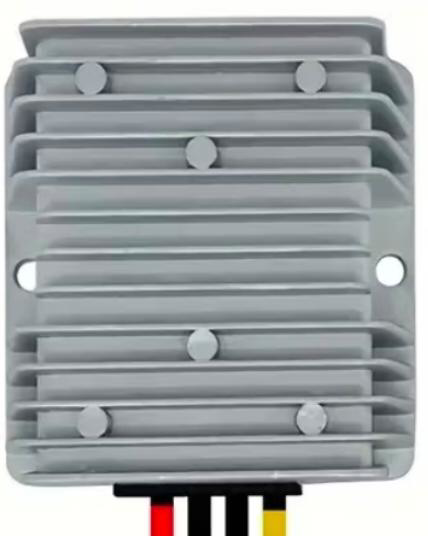

How to Use Buck Converter : Examples, Pinouts, and Specs

A buck converter is a DC-DC power converter designed to step down voltage while stepping up current. It achieves this by using a combination of a switching element (such as a transistor), a diode, an inductor, and a capacitor. Buck converters are highly efficient and are widely used in applications where a stable, lower voltage is required from a higher voltage source.

• Powering microcontrollers and low-voltage devices from higher voltage sources
• Battery-powered systems to regulate voltage levels
• Voltage regulation in renewable energy systems (e.g., solar panels)
• Automotive electronics for stepping down 12V to lower voltages
• Portable devices and chargers

Below are the general technical specifications for a typical buck converter. Note that specific values may vary depending on the model and manufacturer.

• Input Voltage Range: 4.5V to 40V (varies by model)
• Output Voltage Range: 0.8V to 36V (adjustable or fixed)
• Output Current: Up to 10A (depending on the design)
• Efficiency: Up to 95% (depending on load and input/output conditions)
• Switching Frequency: 100 kHz to 1 MHz
• Operating Temperature: -40°C to +85°C (typical)

The pin configuration of a buck converter module may vary depending on the specific design. Below is an example of a common 5-pin buck converter module:

1. Connect the Input Voltage:
   • Connect the positive terminal of the input voltage source to the VIN pin.
   • Connect the negative terminal of the input voltage source to the GND pin.
2. Set the Output Voltage (if adjustable):
   • Use the onboard potentiometer (if available) to adjust the output voltage.
   • Alternatively, configure the feedback resistor network to set the desired output voltage.
3. Connect the Load:
   • Connect the positive terminal of the load to the VOUT pin.
   • Connect the negative terminal of the load to the GND pin.
4. Enable the Converter:
   • If the module has an EN pin, ensure it is connected to a high logic level to enable the converter.
5. Verify the Output:
   • Use a multimeter to measure the output voltage and ensure it matches the desired value.

• Input Voltage: Ensure the input voltage is within the specified range of the buck converter.
• Output Current: Do not exceed the maximum output current rating to avoid overheating or damage.
• Heat Dissipation: Use a heatsink or proper ventilation if the converter operates at high currents.
• Ripple Voltage: Add additional capacitors to the output if lower ripple voltage is required.
• Inductor Selection: Ensure the inductor value is appropriate for the desired output voltage and current.

Below is an example of how to use a buck converter to power an Arduino UNO from a 12V source:

1. Connect the 12V source to the VIN and GND pins of the buck converter.
2. Adjust the output voltage to 5V using the potentiometer or feedback resistors.
3. Connect the VOUT pin of the buck converter to the 5V pin of the Arduino UNO.
4. Connect the GND pin of the buck converter to the GND pin of the Arduino UNO.

// Example Arduino code to blink an LED powered by a buck converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:
   • Check if the input voltage is within the specified range.
   • Ensure the EN pin is connected to a high logic level (if applicable).
   • Verify all connections are secure and correct.
2. Output Voltage is Incorrect:
   • Adjust the potentiometer or feedback resistors to set the correct output voltage.
   • Check for a faulty or damaged component in the circuit.
3. Overheating:
   • Ensure the load does not exceed the maximum current rating.
   • Add a heatsink or improve ventilation around the converter.
4. High Ripple Voltage:
   • Add additional filtering capacitors to the output.
   • Ensure the inductor value is appropriate for the application.

Q: Can I use a buck converter to power sensitive electronics?
A: Yes, but ensure the output voltage is stable and within the tolerance range of the device. Adding filtering capacitors can help reduce ripple voltage.

Q: What happens if I exceed the input voltage range?
A: Exceeding the input voltage range can damage the buck converter. Always use a voltage source within the specified range.

Q: Can I use a buck converter to step up voltage?
A: No, a buck converter is designed only to step down voltage. For stepping up voltage, use a boost converter instead.

Q: How do I calculate the feedback resistor values?
A: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R_1}{R_2}\right) ]
where ( V_{REF} ) is the reference voltage of the converter, and ( R_1 ) and ( R_2 ) are the feedback resistors.

By following this documentation, you can effectively use a buck converter in your projects while avoiding common pitfalls.
