How to Use SN74LS00: Examples, Pinouts, and Specs

The SN74LS00, manufactured by Texas Instruments, is a quad 2-input NAND gate integrated circuit (IC) that belongs to the 74LS series of TTL (Transistor-Transistor Logic) devices. Each IC contains four independent NAND gates, each with two inputs. The SN74LS00 is widely used in digital logic applications due to its high-speed operation, low power consumption, and reliable performance.

• Digital logic circuits
• Signal processing
• Data communication systems
• Clock generation and timing circuits
• General-purpose logic gates in embedded systems

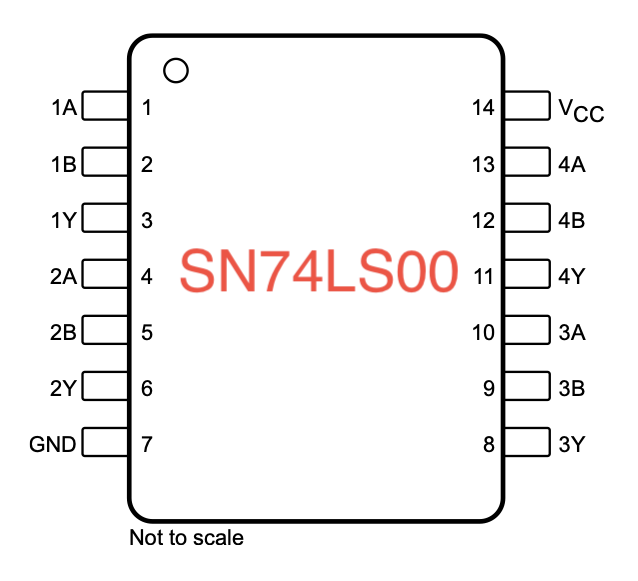

The SN74LS00 is available in a 14-pin package. The pinout and descriptions are as follows:

1. Power Supply: Connect the VCC pin (Pin 14) to a +5V power supply and the GND pin (Pin 7) to ground.
2. Inputs: Provide digital logic signals (0V for LOW, 5V for HIGH) to the input pins (e.g., 1A, 1B, etc.).
3. Outputs: The output pins (e.g., 1Y, 2Y, etc.) will produce the NAND gate logic result based on the inputs:
   • Output = LOW (0V) only when both inputs are HIGH (5V).
   • Output = HIGH (5V) for all other input combinations.
4. Load Considerations: Ensure the output current does not exceed the maximum rating (8mA per output).

Below is an example of connecting one NAND gate (Gate 1) from the SN74LS00 to an Arduino UNO to toggle an LED based on two input signals.

• Connect Pin 14 (VCC) to the Arduino's 5V pin.
• Connect Pin 7 (GND) to the Arduino's GND pin.
• Connect Pins 1 (1A) and 2 (1B) to Arduino digital pins 2 and 3, respectively.
• Connect Pin 3 (1Y) to a 220-ohm resistor in series with an LED, and then to GND.

// Define input pins for the NAND gate
const int inputA = 2; // Connected to Pin 1 (1A) of SN74LS00
const int inputB = 3; // Connected to Pin 2 (1B) of SN74LS00

// Define output pin for the NAND gate
const int outputY = 4; // Connected to Pin 3 (1Y) of SN74LS00

void setup() {
  // Set input pins as outputs to control the NAND gate inputs
  pinMode(inputA, OUTPUT);
  pinMode(inputB, OUTPUT);

  // Set output pin as input to read the NAND gate output
  pinMode(outputY, INPUT);

  // Initialize inputs to LOW
  digitalWrite(inputA, LOW);
  digitalWrite(inputB, LOW);
}

void loop() {
  // Example: Toggle inputs and observe the NAND gate output
  digitalWrite(inputA, HIGH); // Set input A to HIGH
  digitalWrite(inputB, LOW);  // Set input B to LOW
  delay(1000);                // Wait for 1 second

  digitalWrite(inputA, HIGH); // Set input A to HIGH
  digitalWrite(inputB, HIGH); // Set input B to HIGH
  delay(1000);                // Wait for 1 second
}

• Avoid exceeding the maximum supply voltage (5.25V) to prevent damage.
• Use pull-up or pull-down resistors if the inputs are left floating to avoid unpredictable behavior.
• Ensure proper decoupling capacitors (e.g., 0.1µF) are placed near the VCC pin to reduce noise.

1. No Output Signal:

   • Verify that the power supply is correctly connected to VCC and GND.
   • Check for loose or incorrect wiring of input and output pins.

2. Incorrect Logic Output:

   • Ensure the input voltage levels meet the required thresholds (VIH and VIL).
   • Confirm that the inputs are not left floating.

3. Overheating:

   • Check if the output current exceeds the maximum rating (8mA).
   • Verify that the IC is operating within the recommended temperature range.

Q: Can the SN74LS00 operate at 3.3V?
A: No, the SN74LS00 is designed for a supply voltage range of 4.75V to 5.25V. For 3.3V operation, consider using a CMOS-based NAND gate like the 74HC00.

Q: What happens if both inputs are left floating?
A: Floating inputs can cause unpredictable behavior. Always use pull-up or pull-down resistors to define the input state.

Q: Can I use all four NAND gates simultaneously?
A: Yes, all four gates are independent and can be used simultaneously, provided the total power dissipation and current limits are not exceeded.
