How to Use ir sensor : Examples, Pinouts, and Specs

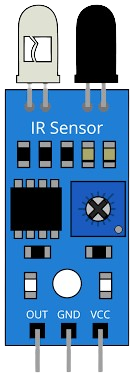

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, which is electromagnetic radiation with wavelengths longer than visible light. IR sensors are widely used in various applications, including motion detection, proximity sensing, and remote control systems. These sensors are versatile, cost-effective, and easy to integrate into electronic circuits, making them a popular choice for hobbyists and professionals alike.

Common applications of IR sensors include:

  • Obstacle detection in robotics
  • Line-following robots
  • Proximity sensing in automatic doors
  • Remote control systems for TVs and appliances
  • Flame detection and temperature measurement

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor  in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor  in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of HCSR-04: A project utilizing ir sensor  in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor  in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor  in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor  in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of HCSR-04: A project utilizing ir sensor  in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical IR sensor module:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2 cm to 30 cm (varies by model)
Output Type Digital (High/Low) or Analog
Wavelength Sensitivity ~940 nm (infrared spectrum)
Response Time ~10 ms
Operating Temperature -25°C to 85°C

Pin Configuration

The IR sensor module typically has three pins. Below is the pin configuration:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground pin
3 OUT Output pin (Digital or Analog, depending on the model)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power supply and the GND pin to the ground of your circuit.
  2. Connect the Output: Connect the OUT pin to a microcontroller's input pin (e.g., Arduino) or to another circuit component that processes the sensor's output.
  3. Adjust Sensitivity (if applicable): Some IR sensor modules have a potentiometer to adjust the detection range or sensitivity. Turn the potentiometer clockwise or counterclockwise to fine-tune the sensor's performance.
  4. Test the Sensor: Place an object within the sensor's detection range and observe the output signal. For digital output sensors, the OUT pin will typically go HIGH (logic 1) when an object is detected and LOW (logic 0) otherwise.

Important Considerations and Best Practices

  • Avoid Ambient IR Interference: IR sensors can be affected by ambient infrared light sources, such as sunlight or incandescent bulbs. Use the sensor in controlled lighting conditions or shield it from external IR sources.
  • Optimal Placement: Ensure the sensor is positioned correctly for the intended application. For example, in obstacle detection, the sensor should face the direction of motion.
  • Power Supply Stability: Use a stable power supply to avoid erratic sensor behavior.
  • Check the Datasheet: Always refer to the specific datasheet of your IR sensor module for precise details, as specifications may vary between models.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to connect and use an IR sensor with an Arduino UNO:

Circuit Connections

  • Connect the VCC pin of the IR sensor to the 5V pin on the Arduino.
  • Connect the GND pin of the IR sensor to the GND pin on the Arduino.
  • Connect the OUT pin of the IR sensor to digital pin 2 on the Arduino.

Arduino Code

// IR Sensor Example Code for Arduino UNO
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int irSensorPin = 2;  // IR sensor output connected to digital pin 2
const int ledPin = 13;      // Onboard LED pin

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);          // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == HIGH) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The sensor is not detecting objects.

    • Ensure the sensor is powered correctly (check the VCC and GND connections).
    • Verify that the object is within the sensor's detection range.
    • Adjust the sensitivity using the onboard potentiometer (if available).
  2. False detections or erratic behavior.

    • Check for ambient IR interference and shield the sensor from external IR sources.
    • Use a stable power supply to avoid noise in the sensor's output.
  3. The output signal is not changing.

    • Confirm that the OUT pin is connected to the correct input pin on the microcontroller.
    • Test the sensor with a multimeter to ensure it is functioning properly.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent or highly reflective objects, as these materials can refract or reflect infrared light unpredictably.

Q: What is the difference between digital and analog IR sensors?
A: Digital IR sensors provide a binary output (HIGH/LOW) based on object detection, while analog IR sensors output a continuous voltage proportional to the distance of the detected object.

Q: Can I use an IR sensor outdoors?
A: While IR sensors can be used outdoors, they may be affected by sunlight and other environmental factors. Consider using an IR sensor with ambient light filtering for outdoor applications.
