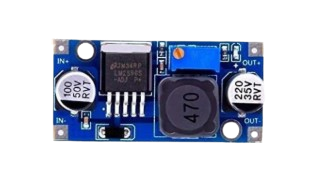

The LM2596 is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage into a stable, regulated output voltage. It is capable of delivering up to 3A of output current, making it ideal for powering a wide range of electronic devices. With its wide input voltage range (4.5V to 40V), the LM2596 is commonly used in power supply circuits, battery chargers, and embedded systems.
Explore Projects Built with LM2596
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.
This circuit is designed for communication and location tracking purposes. It features an Arduino Nano interfaced with a SIM800L GSM module for cellular connectivity, a GPS NEO 6M module for obtaining geographical coordinates, and an AITrip ADXL335 GY-61 accelerometer for motion sensing. The LM2596 Step Down Module is used to regulate the power supply to the components.
This circuit is designed to interface an Arduino UNO with a SIM800L GSM module, PIR sensor, photocell, buzzer, and multiple LEDs. It is likely intended for environmental monitoring and alerting, with the capability to communicate over GSM for remote notifications. The LM2596 module provides voltage regulation for the GSM module.
This circuit integrates an ESP8266 NodeMCU microcontroller with a SIM800L GSM module, a GPS NEO 6M module, and a 16x2 I2C LCD display for communication and location tracking. It also includes a pushbutton for user input, a piezo buzzer for audio alerts, and is powered by a 2x 18650 battery pack through an LM2596 step-down module.
Voltage regulation for microcontrollers and sensors
LED drivers
Industrial and automotive electronics
Technical Specifications
The LM2596 is a versatile and robust component. Below are its key technical specifications:
Parameter
Value
Input Voltage Range
4.5V to 40V
Output Voltage Range
1.23V to 37V (adjustable version)
Output Current
Up to 3A
Efficiency
Up to 90%
Switching Frequency
150 kHz
Output Voltage Tolerance
±4%
Operating Temperature
-40°C to +125°C
Package Type
TO-220, TO-263
Pin Configuration and Descriptions
The LM2596 is typically available in a 5-pin TO-220 or TO-263 package. Below is the pinout description:
Pin Number
Pin Name
Description
1
VIN
Input voltage pin. Connect to the unregulated DC input voltage.
2
Output
Regulated output voltage pin. Connect to the load.
3
Ground (GND)
Ground pin. Connect to the circuit ground.
4
Feedback
Feedback pin. Used to set the output voltage with an external resistor divider.
5
ON/OFF
Enable pin. Logic high enables the regulator; logic low disables it.
Usage Instructions
How to Use the LM2596 in a Circuit
Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is higher than the desired output voltage by at least 1.5V for proper regulation.
Output Voltage Adjustment: For the adjustable version, use a resistor divider network connected to the Feedback pin to set the desired output voltage. The output voltage can be calculated using the formula:
[
V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right)
]
where ( V_{REF} ) is 1.23V.
Output Capacitor: Connect a low ESR capacitor (e.g., 100µF) to the output pin to stabilize the voltage and reduce ripple.
Input Capacitor: Place a capacitor (e.g., 100µF) close to the VIN pin to filter input noise.
Inductor Selection: Choose an inductor with a suitable current rating (greater than 3A) and low DC resistance to minimize losses.
Enable Pin: If the ON/OFF pin is not used, connect it to VIN to keep the regulator enabled.
Important Considerations and Best Practices
Use proper heat dissipation techniques, such as a heatsink, if the LM2596 operates at high currents.
Keep the input and output capacitors as close as possible to the regulator to minimize noise and improve stability.
Ensure the inductor and capacitors are rated for the desired current and voltage levels.
Avoid exceeding the maximum input voltage (40V) to prevent damage to the regulator.
Example: Using LM2596 with Arduino UNO
The LM2596 can be used to power an Arduino UNO by stepping down a 12V input to 5V. Below is an example circuit and Arduino code to read a sensor powered by the LM2596.
Circuit Connections
Connect a 12V DC power supply to the VIN pin of the LM2596.
Adjust the output voltage to 5V using the feedback resistor network.
Connect the 5V output to the Arduino UNO's 5V pin.
Use the Arduino to read data from a sensor powered by the LM2596.
Arduino Code
// Example code to read data from a sensor powered by the LM2596
const int sensorPin = A0; // Sensor connected to analog pin A0
int sensorValue = 0; // Variable to store sensor reading
void setup() {
Serial.begin(9600); // Initialize serial communication
pinMode(sensorPin, INPUT); // Set sensor pin as input
}
void loop() {
sensorValue = analogRead(sensorPin); // Read sensor value
Serial.print("Sensor Value: ");
Serial.println(sensorValue); // Print sensor value to Serial Monitor
delay(1000); // Wait for 1 second before next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Voltage:
Ensure the input voltage is within the specified range (4.5V to 40V).
Verify that the ON/OFF pin is connected to VIN or logic high.
Check for loose connections or damaged components.
Output Voltage is Incorrect:
Double-check the resistor divider network connected to the Feedback pin.
Ensure the input voltage is at least 1.5V higher than the desired output voltage.
Excessive Heat:
Use a heatsink or improve ventilation around the LM2596.
Verify that the load current does not exceed 3A.
High Output Ripple:
Use low ESR capacitors for input and output filtering.
Ensure the inductor is properly rated and positioned close to the regulator.
FAQs
Q: Can the LM2596 be used for 3.3V output?
A: Yes, the adjustable version of the LM2596 can be configured for a 3.3V output using an appropriate resistor divider.
Q: Is the LM2596 suitable for battery charging?
A: Yes, the LM2596 can be used for battery charging applications, but additional circuitry may be required to manage charging profiles.
Q: What is the maximum efficiency of the LM2596?
A: The LM2596 can achieve up to 90% efficiency, depending on the input/output voltage and load conditions.
