Introduction

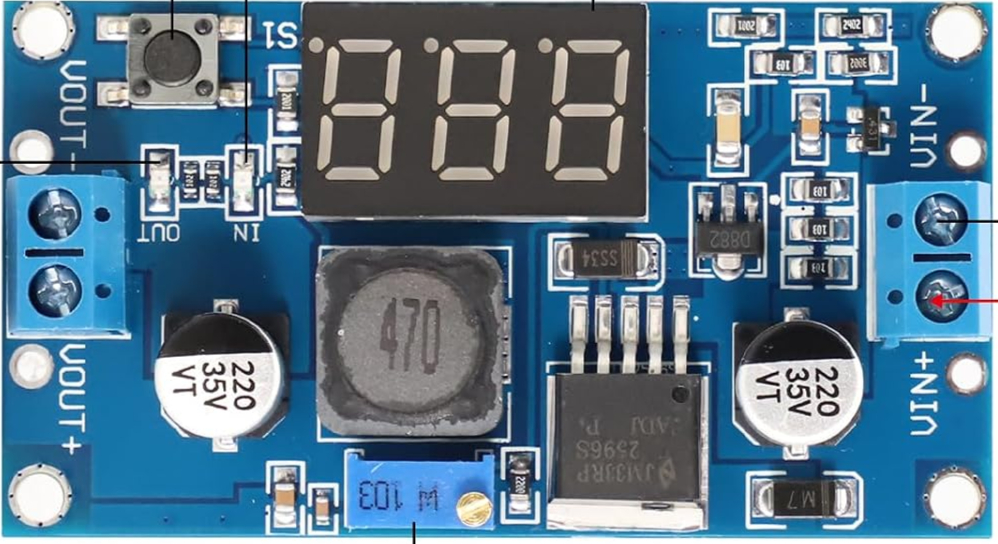

The DC-DC Buck LM2596 3A LED module is a step-down voltage regulator designed to efficiently convert a higher input voltage to a lower output voltage. It is based on the LM2596 chip, which is known for its high efficiency and reliability. This module is equipped with an onboard LED display that shows the output voltage, making it convenient for real-time monitoring.

Common applications include:

  • Powering low-voltage devices from higher-voltage sources (e.g., 12V to 5V conversion).
  • Battery-powered systems where efficient voltage regulation is critical.
  • DIY electronics projects requiring adjustable voltage outputs.
  • Arduino and microcontroller-based projects.

Explore Projects Built with DC-DC Buck LM2596 3A LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Motor Control with USB Charging and LED Indicator
Image of lumantas: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
This circuit is designed to charge a Li-ion battery and power a DC motor and a 12V LED. The TP4056 module manages the battery charging process, while the PowerBoost 1000 and MT3608 boost converters step up the voltage to drive the motor and LED, respectively. Two rocker switches control the power flow to the LED and the charging circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Adjustable LED Driver with LM317 Voltage Regulator and Potentiometer
Image of Smart Light Intensity Adjustable Flashlight: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
This circuit is a regulated power supply for a 12V, 10W LED, using an LM317 voltage regulator to control the output voltage. A potentiometer is used to adjust the voltage, and a 12V battery provides the input power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered LED Light with Battery Charging and Light Sensing
Image of ebt: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
This circuit is a solar-powered battery charging and LED lighting system. The solar cell charges a 18650 Li-ion battery through a TP4056 charging module, which also powers a 7805 voltage regulator to provide a stable 5V output. A photocell and MOSFET control the power to a high-power LED, allowing it to turn on or off based on ambient light conditions.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC-DC Buck LM2596 3A LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lumantas: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
Battery-Powered DC Motor Control with USB Charging and LED Indicator
This circuit is designed to charge a Li-ion battery and power a DC motor and a 12V LED. The TP4056 module manages the battery charging process, while the PowerBoost 1000 and MT3608 boost converters step up the voltage to drive the motor and LED, respectively. Two rocker switches control the power flow to the LED and the charging circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Light Intensity Adjustable Flashlight: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
Adjustable LED Driver with LM317 Voltage Regulator and Potentiometer
This circuit is a regulated power supply for a 12V, 10W LED, using an LM317 voltage regulator to control the output voltage. A potentiometer is used to adjust the voltage, and a 12V battery provides the input power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ebt: A project utilizing DC-DC Buck LM2596 3A LED in a practical application
Solar-Powered LED Light with Battery Charging and Light Sensing
This circuit is a solar-powered battery charging and LED lighting system. The solar cell charges a 18650 Li-ion battery through a TP4056 charging module, which also powers a 7805 voltage regulator to provide a stable 5V output. A photocell and MOSFET control the power to a high-power LED, allowing it to turn on or off based on ambient light conditions.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Input Voltage Range: 4V to 40V DC
  • Output Voltage Range: 1.25V to 37V DC (adjustable via potentiometer)
  • Maximum Output Current: 3A (with proper heat dissipation)
  • Efficiency: Up to 92% (depending on input/output voltage and load)
  • Output Ripple: ≤30mV
  • Load Regulation: ±0.5%
  • Voltage Display: 3-digit 7-segment LED display
  • Dimensions: 50mm x 26mm x 14mm

Pin Configuration and Descriptions

Pin Name Description
VIN+ Positive input voltage terminal (connect to the higher voltage source).
VIN- Negative input voltage terminal (connect to ground of the power source).
VOUT+ Positive output voltage terminal (connect to the load's positive terminal).
VOUT- Negative output voltage terminal (connect to the load's ground terminal).

Usage Instructions

  1. Connecting the Module:

    • Connect the input voltage source to the VIN+ and VIN- terminals. Ensure the input voltage is within the 4V to 40V range.
    • Connect the load to the VOUT+ and VOUT- terminals. Ensure the load's voltage and current requirements are within the module's output range.
  2. Adjusting the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Monitor the output voltage using the onboard LED display or a multimeter.
  3. Important Considerations:

    • Ensure proper heat dissipation when operating at high currents (above 2A). Use a heatsink if necessary.
    • Avoid short-circuiting the output terminals, as this may damage the module.
    • Always verify the input and output connections before powering the module to prevent reverse polarity damage.
  4. Using with Arduino UNO:

    • The LM2596 module can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V.
    • Example connection:
      • Connect the module's VOUT+ to the Arduino's 5V pin.
      • Connect the module's VOUT- to the Arduino's GND pin.

Example Arduino Code

Here is an example of using the LM2596 module to power an Arduino UNO and read a sensor value:

// Example: Reading a sensor value with Arduino powered by LM2596 module

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range (4V to 40V).
    • Verify the connections to the VIN+ and VIN- terminals.
    • Ensure the potentiometer is not turned all the way down.
  2. Output Voltage Not Adjustable:

    • Confirm that the potentiometer is functioning correctly. If it is damaged, replace the module.
    • Ensure the input voltage is at least 1.5V higher than the desired output voltage.
  3. Overheating:

    • Check if the load current exceeds 2A. Use a heatsink or fan for better heat dissipation.
    • Ensure proper ventilation around the module.
  4. LED Display Not Working:

    • Verify the input voltage is connected correctly and is within the operating range.
    • Check for any physical damage to the LED display.

FAQs

Q1: Can I use this module to charge a battery?
A1: Yes, but ensure the output voltage is set to the battery's charging voltage, and use a current-limiting circuit if required.

Q2: What happens if I reverse the input polarity?
A2: The module does not have reverse polarity protection. Reversing the input polarity may permanently damage the module.

Q3: Can I use this module with a solar panel?
A3: Yes, as long as the solar panel's output voltage is within the module's input range. Ensure the panel provides sufficient current for your load.

Q4: Is the output voltage stable under varying loads?
A4: Yes, the LM2596 module provides good load regulation (±0.5%), ensuring stable output voltage under varying loads.
