How to Use 4X4 Membrane Matrix Keypad: Examples, Pinouts, and Specs

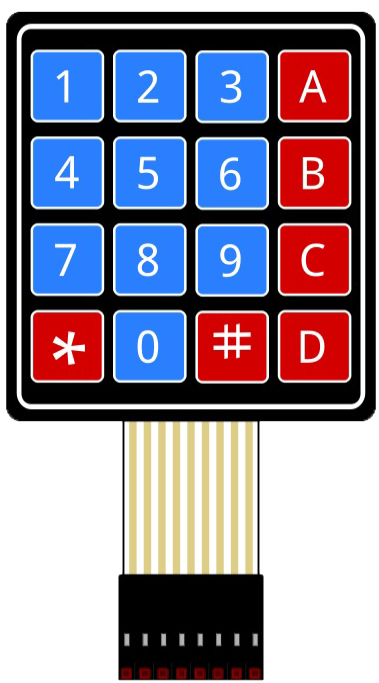

Image of 4X4 Membrane Matrix Keypad
Cirkit Designer LogoDesign with 4X4 Membrane Matrix Keypad in Cirkit Designer

Introduction

The 4X4 Membrane Matrix Keypad (Manufacturer: Parallax Inc., Part ID: 27899) is a compact and versatile input device featuring 16 keys arranged in a 4x4 grid. It is designed for user input in electronic devices, such as password entry systems, menu navigation, and custom control panels. The keypad uses a thin, flexible membrane that registers key presses when the top conductive layer contacts the bottom layer, sending signals to a microcontroller for processing.

Explore Projects Built with 4X4 Membrane Matrix Keypad

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Based 4x4 Keypad Interface
Image of keypad: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
This circuit connects a 4x4 membrane matrix keypad to an Arduino UNO microcontroller. The rows (R1-R4) and columns (C1-C4) of the keypad are wired to digital pins D9-D2 on the Arduino, respectively. The purpose of the circuit is to allow the Arduino to detect and process key presses from the keypad, which can be used for user input in various applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Keypad-Controlled LED and Buzzer System with RTC and Bluetooth
Image of Uni: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
This circuit is an Arduino-based keypad interface system that reads input from a 4x4 membrane matrix keypad and displays the pressed key on the serial monitor. It also includes a real-time clock (RTC) module, a Bluetooth module, and visual indicators using red and green LEDs. Additionally, a buzzer is controlled via an NPN transistor for audio feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and ESP8266-Based Smart Lock with Keypad and LCD Display
Image of Lock: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
This circuit is a security system that uses a 4x4 membrane keypad to input a PIN, which is processed by an Arduino UNO. Upon entering the correct PIN, the system activates a servo motor and a relay, and displays status messages on a 16x2 I2C LCD screen. Additionally, an ESP8266 module is included for potential wireless communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based NFC Reader with Membrane Keypad Interface
Image of NFC_serial: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
This circuit features an Arduino UNO connected to a 4x4 membrane matrix keypad, an NFC/RFID reader, and powered by a 9V battery. The Arduino is programmed to detect and display keypad inputs and read NFC tags, likely for an access control or identification system. The NFC/RFID reader communicates with the Arduino via I2C (using SDA and SCL lines), and the keypad is interfaced using digital IO pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 4X4 Membrane Matrix Keypad

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of keypad: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
Arduino UNO Based 4x4 Keypad Interface
This circuit connects a 4x4 membrane matrix keypad to an Arduino UNO microcontroller. The rows (R1-R4) and columns (C1-C4) of the keypad are wired to digital pins D9-D2 on the Arduino, respectively. The purpose of the circuit is to allow the Arduino to detect and process key presses from the keypad, which can be used for user input in various applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Uni: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
Arduino UNO Keypad-Controlled LED and Buzzer System with RTC and Bluetooth
This circuit is an Arduino-based keypad interface system that reads input from a 4x4 membrane matrix keypad and displays the pressed key on the serial monitor. It also includes a real-time clock (RTC) module, a Bluetooth module, and visual indicators using red and green LEDs. Additionally, a buzzer is controlled via an NPN transistor for audio feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lock: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
Arduino UNO and ESP8266-Based Smart Lock with Keypad and LCD Display
This circuit is a security system that uses a 4x4 membrane keypad to input a PIN, which is processed by an Arduino UNO. Upon entering the correct PIN, the system activates a servo motor and a relay, and displays status messages on a 16x2 I2C LCD screen. Additionally, an ESP8266 module is included for potential wireless communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NFC_serial: A project utilizing 4X4 Membrane Matrix Keypad in a practical application
Arduino UNO Based NFC Reader with Membrane Keypad Interface
This circuit features an Arduino UNO connected to a 4x4 membrane matrix keypad, an NFC/RFID reader, and powered by a 9V battery. The Arduino is programmed to detect and display keypad inputs and read NFC tags, likely for an access control or identification system. The NFC/RFID reader communicates with the Arduino via I2C (using SDA and SCL lines), and the keypad is interfaced using digital IO pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Security systems (e.g., PIN entry for locks)
  • Home automation control panels
  • Robotics and embedded systems
  • Menu-driven interfaces for electronic devices
  • Calculator-style input systems

Technical Specifications

Key Specifications

Parameter Value
Manufacturer Parallax Inc.
Part ID 27899
Number of Keys 16 (4 rows x 4 columns)
Operating Voltage 3.3V to 5V
Maximum Current 20mA
Keypad Dimensions 69mm x 77mm
Connector Type 8-pin ribbon cable
Keypad Material Flexible membrane
Operating Temperature -20°C to +50°C

Pin Configuration

The 4X4 membrane matrix keypad has 8 pins, which correspond to the rows and columns of the keypad matrix. The pins are typically connected to a microcontroller for scanning and detecting key presses.

Pin Number Description Functionality
1 Row 1 (R1) First row of the keypad matrix
2 Row 2 (R2) Second row of the keypad matrix
3 Row 3 (R3) Third row of the keypad matrix
4 Row 4 (R4) Fourth row of the keypad matrix
5 Column 1 (C1) First column of the keypad matrix
6 Column 2 (C2) Second column of the keypad matrix
7 Column 3 (C3) Third column of the keypad matrix
8 Column 4 (C4) Fourth column of the keypad matrix

Usage Instructions

How to Use the Keypad in a Circuit

  1. Connect the Keypad to a Microcontroller:

    • Use the 8-pin ribbon cable to connect the keypad to the microcontroller.
    • Assign the row pins (R1-R4) and column pins (C1-C4) to digital I/O pins on the microcontroller.
  2. Scan the Keypad Matrix:

    • The microcontroller sends signals to the row pins and reads the column pins to detect key presses.
    • When a key is pressed, the corresponding row and column pins are shorted, allowing the microcontroller to identify the pressed key.
  3. Debounce the Key Presses:

    • Implement software or hardware debouncing to eliminate false key presses caused by mechanical bouncing.
  4. Use a Keypad Library (Optional):

    • For Arduino users, the Keypad library simplifies the process of scanning the keypad and detecting key presses.

Important Considerations

  • Voltage Compatibility: Ensure the keypad operates within the microcontroller's voltage range (3.3V or 5V).
  • Pull-Up Resistors: Use internal or external pull-up resistors on the column pins to ensure stable readings.
  • Environmental Conditions: Avoid exposing the keypad to extreme temperatures or moisture, as it may damage the membrane.

Example Code for Arduino UNO

The following example demonstrates how to use the 4X4 membrane matrix keypad with an Arduino UNO. It uses the Keypad library to detect and display key presses in the Serial Monitor.

#include <Keypad.h>

// Define the rows and columns of the keypad
const byte ROWS = 4; // Number of rows
const byte COLS = 4; // Number of columns

// Define the keymap for the keypad
char keys[ROWS][COLS] = {
  {'1', '2', '3', 'A'},
  {'4', '5', '6', 'B'},
  {'7', '8', '9', 'C'},
  {'*', '0', '#', 'D'}
};

// Define the row and column pins connected to the Arduino
byte rowPins[ROWS] = {9, 8, 7, 6};   // Connect to R1, R2, R3, R4
byte colPins[COLS] = {5, 4, 3, 2};   // Connect to C1, C2, C3, C4

// Create a Keypad object
Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS);

void setup() {
  Serial.begin(9600); // Initialize serial communication
  Serial.println("4X4 Keypad Test");
}

void loop() {
  char key = keypad.getKey(); // Check if a key is pressed

  if (key) {
    // Print the pressed key to the Serial Monitor
    Serial.print("Key Pressed: ");
    Serial.println(key);
  }
}

Notes:

  • Install the Keypad library in the Arduino IDE via the Library Manager if not already installed.
  • Adjust the rowPins and colPins arrays to match your wiring.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Key Presses Detected:

    • Verify the wiring between the keypad and the microcontroller.
    • Ensure the correct pins are defined in the code.
  2. Incorrect Key Presses Detected:

    • Check for loose or incorrect connections.
    • Ensure the keymap in the code matches the physical layout of the keypad.
  3. Multiple Keys Detected Simultaneously:

    • Implement proper debouncing in the code.
    • Check for short circuits between the row and column pins.
  4. Keypad Not Responding:

    • Confirm the operating voltage is within the specified range (3.3V to 5V).
    • Test the keypad with a multimeter to ensure continuity when keys are pressed.

FAQs

Q: Can the keypad be used with a Raspberry Pi?
A: Yes, the keypad can be used with a Raspberry Pi. Use GPIO pins and a Python library like pad4pi to interface with the keypad.

Q: How do I clean the keypad?
A: Use a soft, dry cloth to clean the surface. Avoid using liquids or abrasive materials.

Q: Can I use fewer than 16 keys?
A: Yes, you can use a subset of the keys by modifying the keymap and ignoring unused rows or columns in the code.

Q: Is the keypad waterproof?
A: No, the keypad is not waterproof. Avoid exposing it to moisture or liquids.

This documentation provides a comprehensive guide to using the 4X4 Membrane Matrix Keypad (Parallax Inc., Part ID: 27899) in your projects. For further assistance, refer to the manufacturer's datasheet or support resources.
