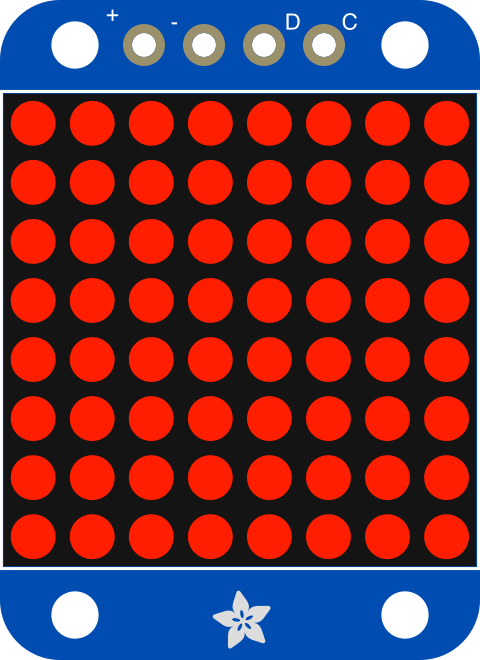

The Adafruit Mini 8x8 LED Matrix Backpack - Red (Manufacturer Part ID: 870) is a compact and versatile LED matrix driver designed to simplify the control of an 8x8 LED matrix display. This module integrates seamlessly with microcontrollers via I2C communication, enabling efficient control of the display with minimal wiring. It features built-in brightness control and multiplexing capabilities, making it ideal for applications requiring visual feedback or simple animations.

• Digital clocks and timers
• Scrolling text displays
• Visual indicators for IoT devices
• Educational projects and prototyping
• Simple animations or icons in embedded systems

The following table outlines the key technical details of the Adafruit Mini 8x8 LED Matrix Backpack:

The module has four pins for I2C communication and power. The pinout is as follows:

1. Wiring the Module:

   • Connect the VIN pin to a 5V power source.
   • Connect the GND pin to the ground of your power source or microcontroller.
   • Connect the SDA pin to the I2C data line of your microcontroller.
   • Connect the SCL pin to the I2C clock line of your microcontroller.

2. Installing Required Libraries:

   • Download and install the Adafruit LED Backpack library and the Adafruit GFX library from the Arduino Library Manager.

3. Programming the Module:

   • Use the Adafruit libraries to control the LED matrix. The libraries provide functions for displaying text, animations, and custom patterns.

• Ensure the I2C address of the module does not conflict with other devices on the same bus. The default address is 0x70, but it can be changed by soldering the address jumpers on the back of the module.
• Avoid exceeding the recommended operating voltage (5V DC) to prevent damage to the module.
• Use appropriate pull-up resistors on the I2C lines if your microcontroller does not have built-in pull-ups.
• Keep the wiring as short as possible to minimize noise on the I2C lines.

Below is an example code snippet to display a simple pattern on the LED matrix:

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_LEDBackpack.h>

// Create an instance of the LED matrix
Adafruit_8x8matrix matrix = Adafruit_8x8matrix();

void setup() {
  // Initialize the LED matrix
  matrix.begin(0x70); // Default I2C address is 0x70
  matrix.clear();     // Clear the display
  matrix.writeDisplay();
}

void loop() {
  // Draw a smiley face pattern on the matrix
  static const uint8_t smiley[] = {
    0b00111100,
    0b01000010,
    0b10100101,
    0b10000001,
    0b10100101,
    0b10011001,
    0b01000010,
    0b00111100
  };

  // Write the pattern to the display
  for (uint8_t i = 0; i < 8; i++) {
    matrix.drawBitmap(0, 0, smiley, 8, 8, LED_ON);
  }
  matrix.writeDisplay();

  delay(1000); // Wait for 1 second
}

1. The LED matrix does not light up:

   • Verify that the VIN and GND pins are correctly connected to a 5V power source.
   • Check the I2C connections (SDA and SCL) and ensure they are properly wired to the microcontroller.
   • Ensure the correct I2C address (0x70 by default) is being used in your code.

2. Flickering or unstable display:

   • Ensure the power supply can provide sufficient current (~80mA or more).
   • Check for loose or noisy connections on the I2C lines.
   • Add pull-up resistors to the I2C lines if necessary.

3. Unable to upload code to the Arduino:

   • Disconnect the LED matrix module while uploading the code to avoid interference on the I2C lines.

Q: Can I use multiple LED matrix modules on the same I2C bus?
A: Yes, you can use up to 8 modules by configuring unique I2C addresses for each module. This can be done by soldering the address jumpers on the back of the module.

Q: What is the maximum brightness level?
A: The brightness is controlled internally by the module and can be adjusted via the Adafruit library. The maximum brightness depends on the power supply and the number of LEDs lit simultaneously.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module is compatible with 3.3V logic levels, but you must still provide a 5V power supply to the VIN pin.

This concludes the documentation for the Adafruit Mini 8x8 LED Matrix Backpack - Red.
