How to Use 7 Segment 7 digit: Examples, Pinouts, and Specs

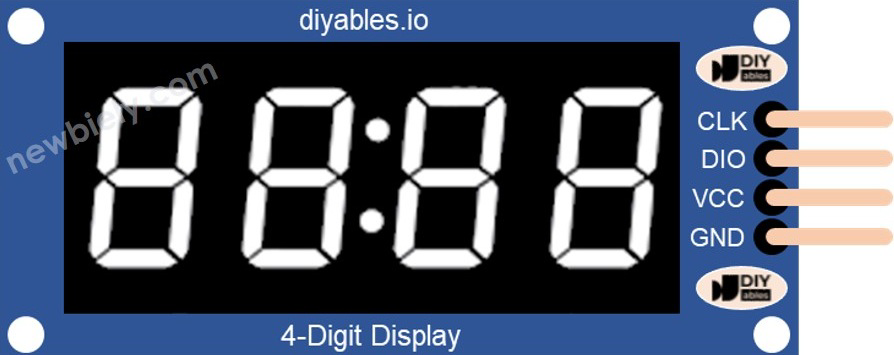

The 7 Segment 7 Digit display is a versatile electronic component designed to visually represent numerical data. It consists of seven individual LED segments per digit, arranged in a figure-eight pattern, allowing it to display numbers from 0 to 9. This module includes seven such digits, enabling the display of multi-digit numerical values.

Commonly used in digital clocks, calculators, and measurement devices, the 7 Segment 7 Digit display is an essential component for projects requiring clear and concise numerical output. Its simplicity and ease of use make it a popular choice for both hobbyists and professionals.

• Operating Voltage: Typically 3V to 5V (check specific model datasheet)
• Current Consumption: ~20mA per segment (depending on the LED type)
• Number of Digits: 7
• Segment Type: LED (common anode or common cathode)
• Pin Count: Varies based on configuration (commonly 16 to 40 pins)
• Display Color: Red (common), green, or blue (varies by model)
• Viewing Angle: ~120 degrees
• Lifespan: ~50,000 hours (typical for LEDs)

The pin configuration of a 7 Segment 7 Digit display depends on whether it is a common anode or common cathode type. Below is a general pinout for a 7 Segment 7 Digit display:

Note: The exact pinout may vary depending on the manufacturer. Always refer to the datasheet for your specific model.

1. Determine the Type: Identify whether your display is a common anode or common cathode type.
   • For common anode, connect the common pin to the positive voltage supply.
   • For common cathode, connect the common pin to ground.
2. Connect Resistors: Use current-limiting resistors (typically 220Ω to 1kΩ) in series with each segment to prevent damage to the LEDs.
3. Control the Segments: Use a microcontroller (e.g., Arduino UNO) or a driver IC (e.g., MAX7219) to control the individual segments.
4. Power Supply: Ensure the power supply matches the voltage and current requirements of the display.

Below is an example of how to connect a single digit of the 7 Segment 7 Digit display to an Arduino UNO. For simplicity, this example assumes a common cathode display.

• Connect the common cathode pin of the first digit to GND.
• Connect each segment (A-G) to Arduino digital pins via 220Ω resistors.

// Define the pins connected to each segment of the first digit
const int segmentPins[] = {2, 3, 4, 5, 6, 7, 8}; // A, B, C, D, E, F, G

// Define the segment patterns for digits 0-9
const byte digitPatterns[] = {
  0b0111111, // 0
  0b0000110, // 1
  0b1011011, // 2
  0b1001111, // 3
  0b1100110, // 4
  0b1101101, // 5
  0b1111101, // 6
  0b0000111, // 7
  0b1111111, // 8
  0b1101111  // 9
};

void setup() {
  // Set all segment pins as outputs
  for (int i = 0; i < 7; i++) {
    pinMode(segmentPins[i], OUTPUT);
  }
}

void loop() {
  // Display digits 0-9 in sequence
  for (int digit = 0; digit < 10; digit++) {
    displayDigit(digit);
    delay(1000); // Wait 1 second before showing the next digit
  }
}

// Function to display a single digit
void displayDigit(int digit) {
  byte pattern = digitPatterns[digit]; // Get the pattern for the digit
  for (int i = 0; i < 7; i++) {
    // Write HIGH or LOW to each segment based on the pattern
    digitalWrite(segmentPins[i], (pattern >> i) & 0x01);
  }
}

• Resistors: Always use current-limiting resistors to protect the LEDs.
• Power Supply: Ensure the power supply can handle the total current draw of all active segments.
• Driver ICs: For multi-digit displays, consider using a driver IC like the MAX7219 to simplify wiring and control.
• Brightness Control: Use PWM (Pulse Width Modulation) to adjust the brightness of the display.

1. Segments Not Lighting Up:

   • Check the connections and ensure the common pin is correctly connected (to GND for common cathode or VCC for common anode).
   • Verify that the current-limiting resistors are properly connected.
   • Ensure the microcontroller pins are configured as outputs.

2. Incorrect Digits Displayed:

   • Double-check the segment-to-pin mapping in your code.
   • Verify that the digitPatterns array matches the wiring of your display.

3. Dim or Flickering Segments:

   • Ensure the power supply can provide sufficient current.
   • Check for loose or poor connections.

Q: Can I control all 7 digits with an Arduino UNO?
A: Yes, but you will need to use a driver IC like the MAX7219 or multiplexing techniques to reduce the number of required pins.

Q: How do I know if my display is common anode or common cathode?
A: Refer to the datasheet or test the display by connecting a single segment to a power source with a resistor. If the segment lights up when the common pin is connected to VCC, it is common anode. If it lights up when connected to GND, it is common cathode.

Q: Can I use the display without a microcontroller?
A: Yes, you can manually control the segments using switches or a simple circuit, but this is not practical for multi-digit displays.

By following this documentation, you can effectively integrate and troubleshoot a 7 Segment 7 Digit display in your projects.
