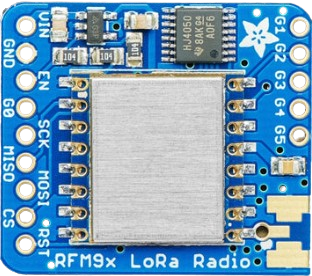

Image of Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit)Design with Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit) in Cirkit Designer

Introduction

The Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit) (Manufacturer Part ID: ADA3073) is a low-power, long-range radio transceiver module designed for wireless communication in IoT applications. Operating at 433 MHz, it features a high-sensitivity receiver and a low-power transmitter, making it ideal for battery-operated devices. This module leverages LoRa (Long Range) technology, enabling robust communication over long distances with minimal power consumption.

Explore Projects Built with Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino MKR WiFi 1010 and Adafruit RFM9x LoRa Radio Communication System: A project utilizing Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit) in a practical application
Arduino MKR WiFi 1010 and Adafruit RFM9x LoRa Radio Communication System

This circuit connects an Adafruit RFM9x LoRa Radio module to an Arduino MKR WiFi 1010 for wireless communication capabilities. The LoRa module's SPI interface (MOSI, MISO, SCK, CS) is connected to the corresponding SPI pins on the Arduino, allowing for serial data transfer between the devices. Additionally, the LoRa module's reset (RST) and interrupt (DIO0) pins are connected to digital pins on the Arduino for control and asynchronous communication.

Open Project in Cirkit Designer
Image of ESP32-Controlled LoRa Communication Module: A project utilizing Adafruit RFM96W LoRa Radio Transceiver Breakout - 433 MHz (RadioFruit) in a practical application
ESP32-Controlled LoRa Communication Module

This circuit connects an ESP32 microcontroller to an Adafruit RFM9x LoRa Radio module for wireless communication. The ESP32's GPIO pins are wired to the LoRa module's SPI interface (MOSI, MISO, SCK, CS), interrupt (DIO0), and reset (RST) to enable data transmission and reception over LoRa. The ESP32 also provides power (3V3) and ground (GND) to the LoRa module.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The following table outlines the key technical details of the Adafruit RFM96W LoRa Radio Transceiver Breakout:

Parameter Value
Operating Frequency 433 MHz
Modulation Type LoRa (Long Range)
Sensitivity Down to -148 dBm
Transmit Power Up to +20 dBm
Operating Voltage 3.3V to 5V
Current Consumption 10.8 mA (receive), 120 mA (transmit)
Communication Interface SPI
Dimensions 25.5 mm x 18 mm x 3 mm

Pin Configuration and Descriptions

The Adafruit RFM96W breakout board has the following pinout:

Pin Name Pin Type Description
GND Power Ground connection
VIN Power Power input (3.3V to 5V)
SCK SPI Clock SPI clock input
MISO SPI Data Out SPI data output (Master In, Slave Out)
MOSI SPI Data In SPI data input (Master Out, Slave In)
CS Chip Select SPI chip select (active low)
RST Reset Hardware reset pin
DIO0 Digital I/O General-purpose digital I/O pin, often used for interrupt signaling
ANT Antenna Connection for external antenna (required for proper operation)

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the VIN pin to a 3.3V or 5V power source and GND to ground.
  2. SPI Communication: Connect the SCK, MISO, MOSI, and CS pins to the corresponding SPI pins on your microcontroller.
  3. Reset Pin: Connect the RST pin to a GPIO pin on your microcontroller for hardware resets.
  4. Antenna: Attach an appropriate 433 MHz antenna to the ANT pin for optimal performance.
  5. DIO0 Pin: Optionally connect the DIO0 pin to a GPIO pin on your microcontroller for interrupt handling.

Important Considerations and Best Practices

Example Code for Arduino UNO

Below is an example of how to use the RFM96W with an Arduino UNO. This code uses the Adafruit RadioHead library, which must be installed via the Arduino Library Manager.

#include <SPI.h>
#include <RH_RF95.h>

// Define RFM96W pins
#define RFM95_CS 10  // Chip Select pin
#define RFM95_RST 9  // Reset pin
#define RFM95_INT 2  // Interrupt pin (DIO0)

// Define LoRa frequency
#define RF95_FREQ 433.0  // Frequency in MHz

// Create an instance of the RF95 driver
RH_RF95 rf95(RFM95_CS, RFM95_INT);

void setup() {
  // Initialize serial communication
  Serial.begin(9600);
  while (!Serial);

  Serial.println("Initializing RFM96W...");

  // Initialize the RFM96W module
  pinMode(RFM95_RST, OUTPUT);
  digitalWrite(RFM95_RST, HIGH);
  delay(10);
  digitalWrite(RFM95_RST, LOW);
  delay(10);
  digitalWrite(RFM95_RST, HIGH);
  delay(10);

  if (!rf95.init()) {
    Serial.println("RFM96W initialization failed!");
    while (1);
  }
  Serial.println("RFM96W initialized successfully!");

  // Set the frequency
  if (!rf95.setFrequency(RF95_FREQ)) {
    Serial.println("Failed to set frequency!");
    while (1);
  }
  Serial.print("Frequency set to: ");
  Serial.print(RF95_FREQ);
  Serial.println(" MHz");

  // Set transmit power (max: 23 dBm)
  rf95.setTxPower(20, false);
}

void loop() {
  // Transmit a message
  Serial.println("Sending message...");
  const char *message = "Hello, LoRa!";
  rf95.send((uint8_t *)message, strlen(message));
  rf95.waitPacketSent();
  Serial.println("Message sent!");

  // Wait for a response
  if (rf95.waitAvailableTimeout(3000)) {
    uint8_t buf[RH_RF95_MAX_MESSAGE_LEN];
    uint8_t len = sizeof(buf);
    if (rf95.recv(buf, &len)) {
      Serial.print("Received response: ");
      Serial.println((char *)buf);
    } else {
      Serial.println("Receive failed!");
    }
  } else {
    Serial.println("No response received.");
  }

  delay(5000);  // Wait 5 seconds before sending the next message
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication with the Module:

    • Ensure the SPI connections are correct and secure.
    • Verify that the CS pin is properly configured in your code.
    • Check the power supply voltage (3.3V to 5V).
  2. Poor Range or Signal Quality:

    • Use a properly tuned 433 MHz antenna.
    • Avoid obstructions and interference in the communication path.
  3. Module Not Initializing:

    • Ensure the RST pin is correctly connected and toggled during initialization.
    • Verify that the correct frequency (433 MHz) is set in the code.
  4. High Power Consumption:

    • Check the transmit power settings in your code. Lower the power if long range is not required.

FAQs

Q: Can I use this module with a 5V microcontroller?
A: Yes, the module is compatible with 5V logic levels, but ensure the VIN pin is supplied with 5V.

Q: What is the maximum range of the RFM96W?
A: The range depends on the environment and antenna, but it can reach up to 10 km in open areas.

Q: Do I need an external library to use this module?
A: Yes, the Adafruit RadioHead library is recommended for easy integration with Arduino.

Q: Can I use multiple RFM96W modules in the same network?
A: Yes, you can configure multiple modules with unique addresses for communication in the same network.
