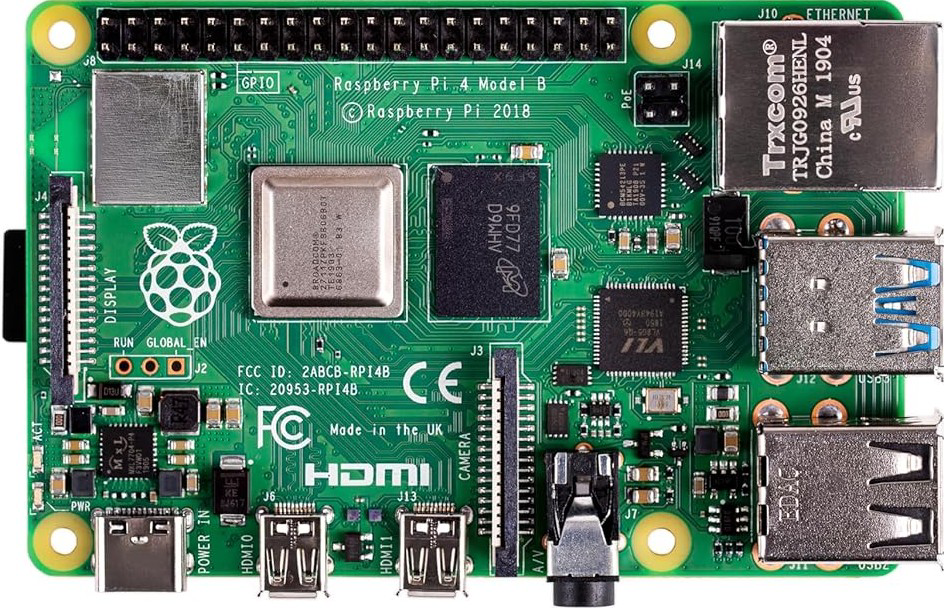

The Raspberry Pi 4 (Manufacturer Part ID: RPI4-MODBP-4GB) is a compact, affordable single-board computer developed by Raspberry Pi. It features a powerful quad-core processor, multiple USB ports, dual micro-HDMI outputs, and support for various operating systems, making it a versatile tool for a wide range of applications. With its 4GB of RAM, the Raspberry Pi 4 is well-suited for tasks such as programming, IoT projects, media centers, and prototyping.

• IoT and Home Automation: Control smart devices and sensors.
• Media Centers: Stream and play high-definition video using software like Kodi.
• Programming and Education: Learn coding with Python, Scratch, and other languages.
• Prototyping: Develop and test hardware and software projects.
• Edge Computing: Perform lightweight AI and machine learning tasks.
• Networking: Use as a lightweight server or network monitoring tool.

The Raspberry Pi 4 features a 40-pin GPIO header for interfacing with external devices. Below is a summary of the pin configuration:

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

1. Powering the Raspberry Pi 4:

   • Use a 5V/3A USB-C power supply for reliable operation.
   • Alternatively, power the board via the 5V and GND pins on the GPIO header.

2. Connecting Peripherals:

   • Attach a microSD card with a compatible operating system (e.g., Raspberry Pi OS).
   • Connect a monitor via one of the micro-HDMI ports.
   • Plug in a keyboard and mouse via the USB ports.

3. Using the GPIO Pins:

   • Use the GPIO pins to interface with sensors, LEDs, and other devices.
   • Ensure proper voltage levels (3.3V logic) to avoid damaging the board.

4. Networking:

   • Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

• Cooling: Use a heatsink or fan for intensive tasks to prevent overheating.
• Static Protection: Handle the board with care to avoid static discharge.
• Power Supply: Use a high-quality power supply to prevent undervoltage issues.
• Software Updates: Regularly update the operating system and firmware for optimal performance.

The following example demonstrates how to blink an LED connected to GPIO pin 17 using Python:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

**Note**: Ensure a current-limiting resistor (e.g., 330Ω) is used in series with the LED to prevent damage.

---

1. The Raspberry Pi 4 does not boot:

   • Ensure the microSD card is properly inserted and contains a valid operating system.
   • Check the power supply for sufficient voltage and current.

2. Overheating:

   • Use a heatsink or fan to improve cooling.
   • Avoid running resource-intensive tasks for extended periods without proper cooling.

3. No display on the monitor:

   • Verify the micro-HDMI cable is securely connected.
   • Ensure the monitor is set to the correct input source.
   • Check for compatibility with the resolution and refresh rate.

4. GPIO pins not working:

   • Double-check the pin configuration and connections.
   • Ensure the GPIO library is installed and properly configured.

• Can I power the Raspberry Pi 4 via USB ports? No, the USB ports are for peripherals only. Use the USB-C port or GPIO header for power.

• What operating systems are supported? The Raspberry Pi 4 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

• Can I use the Raspberry Pi 4 for AI projects? Yes, the Raspberry Pi 4 is capable of running lightweight AI and machine learning models.

• How do I enable SSH for remote access? Create an empty file named ssh in the boot partition of the microSD card before the first boot.

For additional support, refer to the official Raspberry Pi documentation and community forums.
