How to Use IRLZ44N: Examples, Pinouts, and Specs

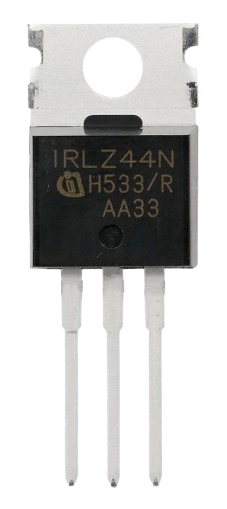

Image of IRLZ44NDesign with IRLZ44N in Cirkit Designer

Introduction

The IRLZ44N is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-speed switching applications. It features a low on-resistance (RDS(on)), enabling it to handle high currents efficiently with minimal power loss. This makes the IRLZ44N ideal for power management, motor control, LED drivers, and other applications requiring efficient switching of high currents.

Explore Projects Built with IRLZ44N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Cellular-Enabled IoT Device with Real-Time Clock and Power Management: A project utilizing IRLZ44N in a practical application
Cellular-Enabled IoT Device with Real-Time Clock and Power Management

This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.

Open Project in Cirkit Designer
Image of Arduino Nano-Based SMS Alert System with IR Sensor and SIM800L: A project utilizing IRLZ44N in a practical application
Arduino Nano-Based SMS Alert System with IR Sensor and SIM800L

This circuit is designed to interface an Arduino Nano with an IR sensor for input, a SIM800L module for GSM communication, and an I2C LCD screen for output display. It includes a 3.7V battery with a TP4056 charging module and a PowerBoost 1000 Basic for power management. The Arduino's code is currently a placeholder, suggesting that the user-defined functionality is pending.

Open Project in Cirkit Designer

Common Applications:

Technical Specifications

Below are the key technical details of the IRLZ44N MOSFET:

Parameter Value
Type N-Channel MOSFET
Maximum Drain-Source Voltage (VDS) 55V
Maximum Gate-Source Voltage (VGS) ±16V
Continuous Drain Current (ID) @ 25°C 47A
Pulsed Drain Current (IDM) 160A
On-Resistance (RDS(on)) @ VGS = 5V 22 mΩ
Power Dissipation (PD) 94W
Gate Threshold Voltage (VGS(th)) 1V to 2V
Operating Temperature Range -55°C to +175°C
Package Type TO-220

Pin Configuration

The IRLZ44N has three pins, as shown below:

Pin Number Pin Name Description
1 Gate (G) Controls the MOSFET switching state
2 Drain (D) Current flows from drain to source
3 Source (S) Connected to ground or load return

Usage Instructions

How to Use the IRLZ44N in a Circuit

  1. Gate Control: The IRLZ44N is a logic-level MOSFET, meaning it can be directly driven by microcontrollers like Arduino, Raspberry Pi, or other 5V logic devices. Apply a voltage of 5V (or higher) to the Gate pin to turn the MOSFET on.
  2. Drain-Source Current Flow: When the Gate is activated, current flows from the Drain to the Source. Ensure the load is connected between the Drain and the positive voltage supply.
  3. Gate Resistor: Use a resistor (typically 220Ω to 1kΩ) between the microcontroller pin and the Gate to limit inrush current and protect the microcontroller.
  4. Flyback Diode: For inductive loads (e.g., motors, relays), connect a flyback diode across the load to protect the MOSFET from voltage spikes.

Example Circuit with Arduino UNO

Below is an example of using the IRLZ44N to control a DC motor with an Arduino UNO:

Circuit Connections:

Arduino Code:

// Define the pin connected to the MOSFET Gate
const int mosfetGatePin = 9;

void setup() {
  pinMode(mosfetGatePin, OUTPUT); // Set the Gate pin as an output
}

void loop() {
  digitalWrite(mosfetGatePin, HIGH); // Turn the MOSFET on (motor runs)
  delay(1000);                       // Wait for 1 second
  digitalWrite(mosfetGatePin, LOW);  // Turn the MOSFET off (motor stops)
  delay(1000);                       // Wait for 1 second
}

Important Considerations:

Troubleshooting and FAQs

Common Issues:

  1. MOSFET Not Turning On:

    • Cause: Insufficient Gate voltage.
    • Solution: Ensure the Gate voltage is at least 5V for full activation.

  2. Excessive Heat:

    • Cause: High current or insufficient cooling.
    • Solution: Add a heatsink or reduce the load current.

  3. Motor Not Running:

    • Cause: Incorrect wiring or damaged MOSFET.
    • Solution: Double-check the circuit connections and test the MOSFET with a multimeter.

  4. Voltage Spikes Damaging the MOSFET:

    • Cause: Inductive load without a flyback diode.
    • Solution: Always use a flyback diode across inductive loads.

FAQs:

Q1: Can the IRLZ44N be used with a 3.3V microcontroller?
A1: Yes, but the Gate voltage may not fully turn on the MOSFET for high-current loads. For low-current applications, it may work, but a Gate driver or level shifter is recommended for optimal performance.

Q2: What is the maximum current the IRLZ44N can handle?
A2: The IRLZ44N can handle up to 47A continuously at 25°C, but this requires proper cooling (e.g., a heatsink). Without cooling, the current capacity will be lower.

Q3: Can I use the IRLZ44N for AC loads?
A3: No, the IRLZ44N is designed for DC applications. For AC loads, consider using a TRIAC or an IGBT.

By following these guidelines and best practices, you can effectively use the IRLZ44N in your electronic projects.
