How to Use 2inch LCD Module: Examples, Pinouts, and Specs

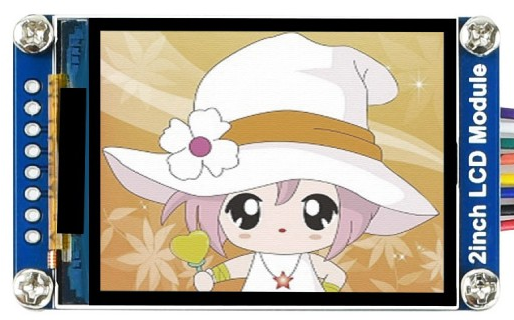

The 2-inch LCD Module (Manufacturer: Waveshare, Part ID: ST7789V) is a compact display module designed for visual output in embedded systems and electronics projects. With a diagonal size of 2 inches, this module offers vibrant color representation and high resolution, making it ideal for applications requiring clear and detailed image or text display. It is commonly used in IoT devices, handheld gadgets, and DIY electronics projects.

• IoT Devices: Displaying sensor data, system status, or user interfaces.
• Wearable Electronics: Compact displays for smartwatches or fitness trackers.
• DIY Projects: Visual output for Arduino, Raspberry Pi, or other microcontroller-based systems.
• Prototyping: Testing graphical user interfaces (GUIs) in embedded systems.
• Industrial Applications: Compact displays for control panels or monitoring systems.

Below are the key technical details of the 2-inch LCD Module:

The module features a standard pin header for easy interfacing. Below is the pinout:

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
2. SPI Communication: Connect the SCL and SDA pins to the SPI clock and data lines of your microcontroller, respectively.
3. Control Pins:
   • Use the RES pin to reset the display during initialization.
   • The DC pin determines whether the data being sent is a command or display data.
   • The CS pin enables or disables communication with the module.
4. Backlight: Connect the BL pin to 3.3V to keep the backlight on, or use a PWM pin from your microcontroller for brightness control.

• Voltage Levels: Ensure all input signals are at 3.3V logic levels. Use level shifters if your microcontroller operates at 5V.
• Initialization: Properly initialize the display using the ST7789V driver commands before sending data.
• Backlight Control: Avoid exceeding the recommended backlight voltage to prevent damage.
• SPI Speed: Use an appropriate SPI clock speed (typically up to 10 MHz) to ensure reliable communication.

Below is an example of how to interface the 2-inch LCD Module with an Arduino UNO using the Adafruit GFX and Adafruit ST7789 libraries:

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ST7789.h> // ST7789 driver library
#include <SPI.h>             // SPI library

// Define pin connections
#define TFT_CS    10  // Chip Select pin
#define TFT_RST   9   // Reset pin
#define TFT_DC    8   // Data/Command pin

// Initialize the display object
Adafruit_ST7789 tft = Adafruit_ST7789(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("2-inch LCD Module Test");

  // Initialize the display
  tft.init(240, 320); // Initialize with 240x320 resolution
  tft.setRotation(1); // Set display orientation (1 = landscape)

  // Fill the screen with a color
  tft.fillScreen(ST77XX_BLUE);

  // Display text
  tft.setTextColor(ST77XX_WHITE);
  tft.setTextSize(2);
  tft.setCursor(10, 10);
  tft.println("Hello, World!");
}

void loop() {
  // Add your code here for dynamic updates
}

• Install the Adafruit GFX and Adafruit ST7789 libraries via the Arduino Library Manager before running the code.
• Ensure the SPI pins on the Arduino UNO (MOSI, MISO, SCK) are correctly connected to the module.

1. No Display Output:

   • Verify all connections, especially power (VCC and GND) and SPI lines.
   • Ensure the CS pin is correctly toggled during communication.
   • Check if the display is properly initialized in the code.

2. Flickering or Unstable Display:

   • Reduce the SPI clock speed to improve communication stability.
   • Ensure the backlight voltage is stable and within the recommended range.

3. Incorrect Colors or Artifacts:

   • Verify that the correct initialization commands for the ST7789V driver are used.
   • Check for loose or faulty connections on the data lines.

4. Backlight Not Working:

   • Ensure the BL pin is connected to 3.3V or a PWM signal.
   • Check for any damage to the backlight circuitry.

Q: Can I use this module with a 5V microcontroller?
A: Yes, but you must use level shifters to convert the 5V logic signals to 3.3V to avoid damaging the module.

Q: What is the maximum SPI clock speed supported?
A: The module typically supports SPI clock speeds up to 10 MHz. Check the microcontroller's SPI capabilities for compatibility.

Q: Can I control the backlight brightness?
A: Yes, you can use a PWM signal on the BL pin to adjust the brightness.

Q: Is this module compatible with Raspberry Pi?
A: Yes, the module can be used with Raspberry Pi via SPI, but you may need to install the appropriate libraries and drivers.

By following this documentation, you can effectively integrate the 2-inch LCD Module into your projects and troubleshoot common issues.
