How to Use relay: Examples, Pinouts, and Specs

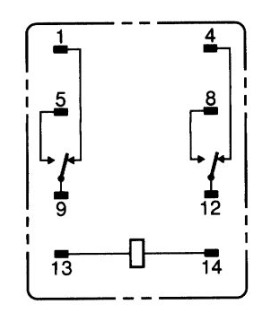

Image of relay
Cirkit Designer LogoDesign with relay in Cirkit Designer

Introduction

A relay is an electromechanical switch that uses an electromagnetic coil to open or close a circuit. It allows a low-power signal to control a high-power circuit, making it an essential component in many electronic and electrical systems. Relays are widely used in applications such as home automation, industrial control systems, automotive electronics, and power distribution systems. They provide electrical isolation between the control circuit and the load, ensuring safety and reliability.

Explore Projects Built with relay

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based Wireless Power Transmission System with Copper Coils
Image of nagesh: A project utilizing relay in a practical application
This circuit consists of multiple copper coils connected to transmitters and a receiver, likely forming a wireless power transfer or communication system. The transmitters are connected to individual coils, and the receiver is connected to another coil, facilitating the transmission and reception of signals or power wirelessly.
Cirkit Designer LogoOpen Project in Cirkit Designer
RF-Controlled Relay Switch with Indicator LEDs and Buzzer
Image of receiver: A project utilizing relay in a practical application
This circuit features an RF receiver that controls a 12V relay, which in turn switches between two circuits: one with a green LED and another with a red LED and a buzzer, both protected by resistors. A rocker switch is used to supply power from a 9V battery to the RF receiver and the relay's coil. The relay's normally closed (NC) contact is connected to the green LED, while the normally open (NO) contact is connected to the red LED and the buzzer, indicating that the relay's state determines which of the two circuits is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 and HC-05 Bluetooth-Based Home Automation System with 4-Channel Relay Control
Image of home automation using arduino: A project utilizing relay in a practical application
This circuit is a Bluetooth-based home automation system that uses an ESP8266 NodeMCU to control a 4-channel relay module. The relays can be toggled via Bluetooth commands received from an HC-05 Bluetooth module or by pressing connected pushbuttons. The system also includes pilot lamps to indicate the status of each relay.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Relay-Controlled RS485 Communication System
Image of Diagrama: A project utilizing relay in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with relay

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of nagesh: A project utilizing relay in a practical application
Arduino-Based Wireless Power Transmission System with Copper Coils
This circuit consists of multiple copper coils connected to transmitters and a receiver, likely forming a wireless power transfer or communication system. The transmitters are connected to individual coils, and the receiver is connected to another coil, facilitating the transmission and reception of signals or power wirelessly.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of receiver: A project utilizing relay in a practical application
RF-Controlled Relay Switch with Indicator LEDs and Buzzer
This circuit features an RF receiver that controls a 12V relay, which in turn switches between two circuits: one with a green LED and another with a red LED and a buzzer, both protected by resistors. A rocker switch is used to supply power from a 9V battery to the RF receiver and the relay's coil. The relay's normally closed (NC) contact is connected to the green LED, while the normally open (NO) contact is connected to the red LED and the buzzer, indicating that the relay's state determines which of the two circuits is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of home automation using arduino: A project utilizing relay in a practical application
ESP8266 and HC-05 Bluetooth-Based Home Automation System with 4-Channel Relay Control
This circuit is a Bluetooth-based home automation system that uses an ESP8266 NodeMCU to control a 4-channel relay module. The relays can be toggled via Bluetooth commands received from an HC-05 Bluetooth module or by pressing connected pushbuttons. The system also includes pilot lamps to indicate the status of each relay.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Diagrama: A project utilizing relay in a practical application
Arduino UNO and Relay-Controlled RS485 Communication System
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a standard single-pole single-throw (SPST) relay. Specifications may vary depending on the specific relay model.

General Specifications

  • Coil Voltage: 5V, 12V, or 24V DC (common values)
  • Coil Current: Typically 30-100 mA
  • Contact Rating: 10A at 250V AC or 10A at 30V DC
  • Contact Type: SPST (Single Pole Single Throw) or SPDT (Single Pole Double Throw)
  • Switching Time: 5-15 ms (typical)
  • Dielectric Strength: 1000V AC (between coil and contacts)
  • Insulation Resistance: >100 MΩ at 500V DC
  • Mechanical Life: 10 million operations (typical)
  • Electrical Life: 100,000 operations (typical)

Pin Configuration and Descriptions

The pin configuration of a relay depends on its type. Below is the pinout for a common 5V SPDT relay:

Pin Name Description
Coil (+) Positive terminal of the electromagnetic coil.
Coil (-) Negative terminal of the electromagnetic coil.
Common (COM) The common terminal connected to the moving part of the switch.
Normally Open (NO) The terminal that is disconnected from COM when the relay is inactive. It connects to COM when the relay is activated.
Normally Closed (NC) The terminal that is connected to COM when the relay is inactive. It disconnects from COM when the relay is activated.

Usage Instructions

How to Use a Relay in a Circuit

  1. Power the Coil: Connect the relay's coil terminals to a power source that matches the relay's rated coil voltage (e.g., 5V DC). Use a transistor or MOSFET to control the coil if the control signal is from a microcontroller.
  2. Control the Load: Connect the load circuit to the relay's COM and NO or NC terminals, depending on whether you want the load to be normally off or normally on.
  3. Add a Flyback Diode: Place a flyback diode (e.g., 1N4007) across the coil terminals to protect the control circuit from voltage spikes caused by the collapsing magnetic field when the relay is turned off.
  4. Use a Base Resistor: If using a transistor to drive the relay, include a base resistor to limit the current into the transistor's base.

Example Circuit with Arduino UNO

Below is an example of how to control a 5V relay using an Arduino UNO:

// Relay control example with Arduino UNO
// Connect the relay module's IN pin to Arduino pin 7
// Connect the relay module's VCC and GND to Arduino 5V and GND

#define RELAY_PIN 7  // Define the pin connected to the relay module

void setup() {
  pinMode(RELAY_PIN, OUTPUT);  // Set the relay pin as an output
  digitalWrite(RELAY_PIN, LOW);  // Ensure the relay is off at startup
}

void loop() {
  digitalWrite(RELAY_PIN, HIGH);  // Turn the relay on
  delay(1000);  // Keep the relay on for 1 second
  digitalWrite(RELAY_PIN, LOW);  // Turn the relay off
  delay(1000);  // Keep the relay off for 1 second
}

Important Considerations

  • Ensure the relay's coil voltage matches the control circuit's output voltage.
  • Do not exceed the relay's contact rating for voltage or current.
  • Use proper insulation and spacing to prevent short circuits or electrical hazards.
  • For inductive loads (e.g., motors), use a snubber circuit or varistor to suppress voltage spikes.

Troubleshooting and FAQs

Common Issues

  1. Relay Not Activating:

    • Check if the coil voltage matches the relay's rated voltage.
    • Verify the control signal is reaching the relay's input.
    • Ensure the transistor or MOSFET driving the relay is functioning correctly.
  2. Relay Stuck in One State:

    • Inspect the relay for mechanical damage or wear.
    • Ensure the load current does not exceed the relay's contact rating.
  3. Voltage Spikes Damaging the Circuit:

    • Confirm a flyback diode is installed across the coil terminals.
    • For inductive loads, use additional protection like snubber circuits.
  4. Relay Clicking but Load Not Switching:

    • Verify the load is properly connected to the COM and NO/NC terminals.
    • Check for loose or broken connections in the load circuit.

FAQs

Q: Can I use a relay to control an AC load with a DC control signal?
A: Yes, relays are designed to provide electrical isolation, allowing a DC control signal to switch an AC load safely.

Q: Why is a flyback diode necessary?
A: A flyback diode protects the control circuit from high-voltage spikes generated when the relay coil is de-energized.

Q: Can I use a relay without a transistor or MOSFET?
A: If the control signal provides sufficient current and voltage to drive the relay coil directly, you can omit the transistor. However, most microcontrollers cannot supply enough current, so a transistor or MOSFET is typically required.

Q: How do I choose the right relay for my application?
A: Consider the coil voltage, contact rating, switching speed, and whether you need SPST, SPDT, or another configuration. Ensure the relay meets the electrical and mechanical requirements of your project.
