How to Use ESP8266: Examples, Pinouts, and Specs

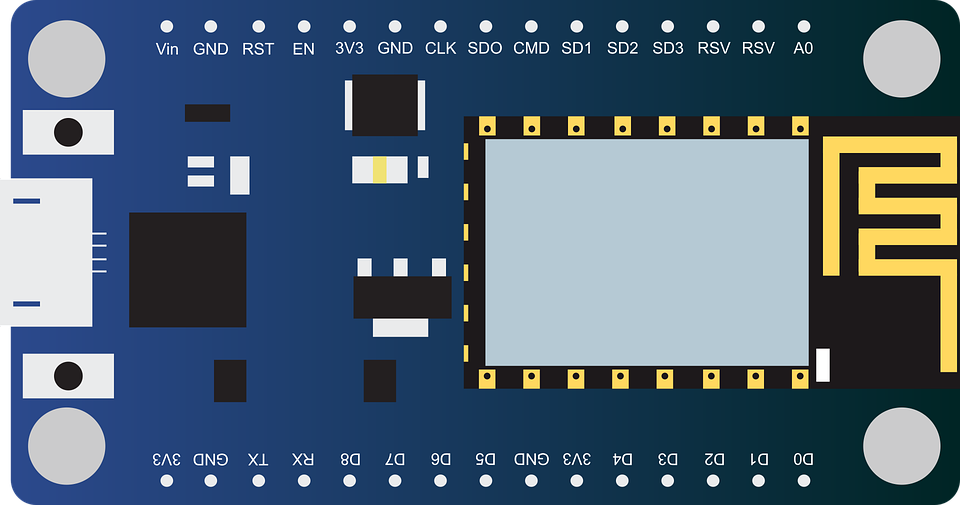

Image of ESP8266
Cirkit Designer LogoDesign with ESP8266 in Cirkit Designer

Introduction

The ESP8266, manufactured by ESP8266, is a low-cost Wi-Fi microchip with a full TCP/IP stack and microcontroller capability. It is widely used in Internet of Things (IoT) applications due to its affordability, compact size, and versatility. The ESP8266 can operate as both a standalone microcontroller or as a Wi-Fi module for other microcontrollers, making it a popular choice for hobbyists and professionals alike.

Explore Projects Built with ESP8266

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU Controlled Smart Relay with IR and Temperature Sensing
Image of Home automation: A project utilizing ESP8266 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module, a DHT11 temperature and humidity sensor, a VS1838B infrared receiver, and two pushbuttons. The ESP8266 controls the relay channels via its digital pins D0, D1, and D2, reads temperature and humidity data from the DHT11 sensor connected to pin D3, receives IR signals through the VS1838B connected to pin D5, and monitors the state of the pushbuttons connected to pins D6 and D7. The entire circuit is powered by a series connection of two 18650 Li-ion batteries, with common ground and power distribution to all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Relay and Touch Sensor Interface with RGB LED Feedback
Image of NodeMcu: A project utilizing ESP8266 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module and four TTP233 touch sensors, as well as a WS2812 RGB LED strip. The NodeMCU's GPIO pins control the relay channels and receive input signals from the touch sensors, while one of its pins drives the data input of the LED strip. The circuit is designed to control power loads via the relays and provide user input through touch sensors, with visual feedback or status indication through the RGB LED strip.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU
Image of Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU: A project utilizing ESP8266 in a practical application
This circuit uses an ESP8266 NodeMCU to control a servo motor via Wi-Fi. The NodeMCU connects to a Wi-Fi network and listens for commands to adjust the servo motor's position, which is connected to pin D8. The servo motor is powered by the 3.3V and GND pins of the NodeMCU.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Enabled Soil Moisture Monitoring and Water Pump Control System
Image of Agriculture: A project utilizing ESP8266 in a practical application
This circuit features an ESP8266 NodeMCU microcontroller connected to various peripherals. An LCD Display is interfaced via I2C for user interaction, while a DHT11 sensor provides temperature and humidity readings. A relay controls a water pump, possibly for an automated watering system, and a pushbutton is included for user input. Soil moisture is monitored with a YL-83 module connected to a YL-69 probe.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP8266

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Home automation: A project utilizing ESP8266 in a practical application
ESP8266 NodeMCU Controlled Smart Relay with IR and Temperature Sensing
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module, a DHT11 temperature and humidity sensor, a VS1838B infrared receiver, and two pushbuttons. The ESP8266 controls the relay channels via its digital pins D0, D1, and D2, reads temperature and humidity data from the DHT11 sensor connected to pin D3, receives IR signals through the VS1838B connected to pin D5, and monitors the state of the pushbuttons connected to pins D6 and D7. The entire circuit is powered by a series connection of two 18650 Li-ion batteries, with common ground and power distribution to all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NodeMcu: A project utilizing ESP8266 in a practical application
ESP8266 NodeMCU Controlled Relay and Touch Sensor Interface with RGB LED Feedback
This circuit features an ESP8266 NodeMCU microcontroller connected to a 4-channel relay module and four TTP233 touch sensors, as well as a WS2812 RGB LED strip. The NodeMCU's GPIO pins control the relay channels and receive input signals from the touch sensors, while one of its pins drives the data input of the LED strip. The circuit is designed to control power loads via the relays and provide user input through touch sensors, with visual feedback or status indication through the RGB LED strip.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU: A project utilizing ESP8266 in a practical application
Wi-Fi Controlled Servo Motor with ESP8266 NodeMCU
This circuit uses an ESP8266 NodeMCU to control a servo motor via Wi-Fi. The NodeMCU connects to a Wi-Fi network and listens for commands to adjust the servo motor's position, which is connected to pin D8. The servo motor is powered by the 3.3V and GND pins of the NodeMCU.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Agriculture: A project utilizing ESP8266 in a practical application
Wi-Fi Enabled Soil Moisture Monitoring and Water Pump Control System
This circuit features an ESP8266 NodeMCU microcontroller connected to various peripherals. An LCD Display is interfaced via I2C for user interaction, while a DHT11 sensor provides temperature and humidity readings. A relay controls a water pump, possibly for an automated watering system, and a pushbutton is included for user input. Soil moisture is monitored with a YL-83 module connected to a YL-69 probe.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation systems
  • Smart appliances
  • Wireless sensor networks
  • IoT prototyping and development
  • Remote data logging and monitoring
  • Wi-Fi-enabled robotics

Technical Specifications

The ESP8266 is a highly integrated chip with the following key specifications:

Parameter Value
Operating Voltage 3.0V - 3.6V
Operating Current 80mA (average during operation)
Flash Memory 512KB to 4MB (varies by module version)
Wi-Fi Standards IEEE 802.11 b/g/n
Processor 32-bit Tensilica L106 running at 80MHz (can be overclocked to 160MHz)
GPIO Pins Up to 17 (depending on the module)
Communication Interfaces UART, SPI, I2C, PWM, ADC (10-bit)
Maximum Wi-Fi Range ~100 meters (line of sight)
Power Consumption (Deep Sleep) ~10µA

Pin Configuration and Descriptions

The ESP8266 is available in various module formats, such as the ESP-01, ESP-12E, and NodeMCU. Below is the pin configuration for the ESP-12E module, one of the most commonly used versions:

Pin Name Pin Number Description
VCC 1 Power supply input (3.3V).
GND 2 Ground connection.
TX 3 UART Transmit pin for serial communication.
RX 4 UART Receive pin for serial communication.
GPIO0 5 General-purpose I/O pin; used for boot mode selection during startup.
GPIO2 6 General-purpose I/O pin.
GPIO15 7 General-purpose I/O pin; must be pulled LOW during boot.
CH_PD (EN) 8 Chip enable pin; must be pulled HIGH for normal operation.
RST 9 Reset pin; active LOW.
ADC (A0) 10 Analog-to-digital converter input (10-bit resolution).

Note: The exact pinout may vary depending on the ESP8266 module version. Always refer to the specific datasheet for your module.

Usage Instructions

The ESP8266 can be used as a standalone microcontroller or as a Wi-Fi module for other microcontrollers like the Arduino UNO. Below are the steps to use the ESP8266 in a circuit:

1. Powering the ESP8266

  • The ESP8266 operates at 3.3V. Do not connect it directly to a 5V power source, as this may damage the chip.
  • Use a voltage regulator (e.g., AMS1117) or a level shifter to step down 5V to 3.3V if necessary.

2. Connecting to an Arduino UNO

To use the ESP8266 with an Arduino UNO, follow these steps:

  • Connect the TX pin of the ESP8266 to the RX pin of the Arduino (via a voltage divider to step down 5V to 3.3V).
  • Connect the RX pin of the ESP8266 to the TX pin of the Arduino.
  • Connect the VCC and CH_PD pins of the ESP8266 to a 3.3V power source.
  • Connect the GND pin of the ESP8266 to the Arduino's GND.

3. Programming the ESP8266

The ESP8266 can be programmed using the Arduino IDE. Below is an example code to connect the ESP8266 to a Wi-Fi network and print the IP address:

#include <ESP8266WiFi.h> // Include the ESP8266 Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Start serial communication at 115200 baud
  delay(10);

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Connect to the Wi-Fi network

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
}

4. Important Considerations

  • Ensure the CH_PD pin is pulled HIGH for the ESP8266 to function.
  • Use a dedicated 3.3V power supply capable of providing at least 300mA to avoid instability.
  • Avoid using GPIO0 and GPIO15 for general I/O unless you understand their role in boot mode selection.

Troubleshooting and FAQs

Common Issues

  1. ESP8266 not responding to AT commands:

    • Ensure the baud rate in your serial monitor matches the ESP8266's default baud rate (usually 115200 or 9600).
    • Verify that the CH_PD pin is pulled HIGH.
  2. Wi-Fi connection fails:

    • Double-check the SSID and password in your code.
    • Ensure the router is within range and supports 2.4GHz Wi-Fi (the ESP8266 does not support 5GHz).
  3. ESP8266 resets or crashes frequently:

    • Check the power supply. Insufficient current can cause instability.
    • Avoid using GPIO0 and GPIO15 improperly, as they affect boot modes.
  4. Cannot upload code to the ESP8266:

    • Ensure the ESP8266 is in programming mode by pulling GPIO0 LOW during startup.
    • Verify the correct COM port and board settings in the Arduino IDE.

Tips for Troubleshooting

  • Use a multimeter to verify voltage levels at the ESP8266's pins.
  • Add decoupling capacitors (e.g., 10µF and 0.1µF) near the power pins to reduce noise.
  • If using the ESP8266 as a Wi-Fi module, ensure proper communication settings (baud rate, voltage levels) with the host microcontroller.

By following this documentation, you can effectively integrate the ESP8266 into your projects and troubleshoot common issues with ease.
