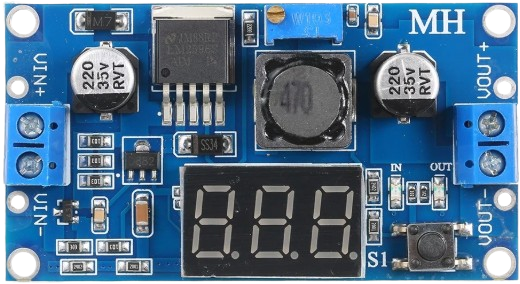

How to Use stepdown 24v to 5v: Examples, Pinouts, and Specs

A stepdown converter, also known as a buck converter, is an electronic component designed to reduce a higher input voltage to a stable lower output voltage. The Stepdown 24V to 5V converter is specifically engineered to convert a 24V input to a regulated 5V output. This component is widely used in applications where low-voltage devices, such as microcontrollers, sensors, and communication modules, need to be powered from a higher voltage source like a 24V battery or industrial power supply.

• Powering microcontrollers (e.g., Arduino, Raspberry Pi) from a 24V source.
• Supplying 5V to USB-powered devices in automotive or industrial environments.
• Driving low-voltage sensors and modules in robotics and IoT systems.
• Reducing voltage for LED strips or other 5V DC devices.

Below are the key technical details of the Stepdown 24V to 5V converter:

The Stepdown 24V to 5V converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):
   Attach the VIN pin to a 24V DC power source. Ensure the input voltage is within the specified range (6V-24V).

2. Connect the Ground (GND):
   Connect the GND pin to the ground of your power source and the ground of your circuit.

3. Connect the Output Voltage (VOUT):
   Attach the VOUT pin to the device or circuit requiring a 5V power supply. Ensure the connected device does not exceed the maximum output current rating (3A).

4. Optional Enable Pin (EN):
   If the converter has an EN pin, connect it to a logic HIGH (e.g., 5V) to enable the converter or logic LOW (e.g., GND) to disable it.

• Heat Dissipation: Ensure proper ventilation or heat sinking if the converter operates near its maximum current rating to prevent overheating.
• Input Voltage Range: Do not exceed the maximum input voltage (24V) to avoid damaging the converter.
• Load Requirements: Verify that the connected load does not draw more current than the converter's maximum output rating.
• Filtering Capacitors: For improved stability, consider adding input and output capacitors (e.g., 10µF electrolytic or ceramic capacitors) close to the VIN and VOUT pins.
• Polarity Protection: Double-check the polarity of the input and output connections to avoid damage.

The Stepdown 24V to 5V converter can be used to power an Arduino UNO from a 24V source. Below is an example circuit and Arduino code:

• Connect the VIN pin of the converter to the 24V power source.
• Connect the GND pin of the converter to the ground of the power source and the Arduino UNO.
• Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the 5V pin from the stepdown converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect wiring or insufficient input voltage.
   • Solution: Verify the VIN and GND connections. Ensure the input voltage is within the 6V-24V range.

2. Overheating:

   • Cause: Excessive load or poor ventilation.
   • Solution: Reduce the load current or add a heatsink to the converter.

3. Output Voltage Fluctuations:

   • Cause: Insufficient filtering or unstable input voltage.
   • Solution: Add input and output capacitors (e.g., 10µF or higher) to stabilize the voltage.

4. Converter Not Turning On:

   • Cause: EN pin not connected or set to LOW.
   • Solution: Connect the EN pin to a logic HIGH (e.g., 5V) to enable the converter.

Q1: Can I use this converter to power a Raspberry Pi?
A1: Yes, but ensure the Raspberry Pi's current requirements (typically 2.5A for most models) do not exceed the converter's maximum output current.

Q2: Is the converter suitable for automotive applications?
A2: Yes, it can be used in automotive systems to step down 12V or 24V to 5V for USB devices or other low-voltage electronics.

Q3: Can I use this converter with a 6V input?
A3: Yes, the converter supports input voltages as low as 6V, but ensure the output remains stable under load.

Q4: Does the converter provide isolation between input and output?
A4: No, this is a non-isolated stepdown converter. The input and output share a common ground.

By following this documentation, you can effectively integrate the Stepdown 24V to 5V converter into your projects and troubleshoot common issues.
