Introduction

A servo motor is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a motor coupled to a sensor for position feedback, along with a control circuit. Servo motors are widely used in applications requiring accurate movement and positioning, such as robotics, automation systems, RC vehicles, and industrial machinery. Their ability to maintain a specific position makes them ideal for tasks like steering mechanisms, robotic arms, and camera gimbals.

Explore Projects Built with servo motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
Image of robotic: A project utilizing servo motor  in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Bluetooth-Controlled Robotic Vehicle with Arduino and Servo-Gearmotor Actuation
Image of CARM: A project utilizing servo motor  in a practical application
This circuit appears to be a remote-controlled robotic system with multiple servos and gearmotors, likely for movement and manipulation. An Arduino UNO microcontroller is used to control the servos and gearmotors via a L298N motor driver, and it interfaces with an HC-05 Bluetooth module for wireless communication. The system is powered by batteries, with a step-down converter to regulate voltage, and includes a relay and LED for power control and indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Robotic System with Bluetooth Interface and Motorized Actuators
Image of CARM: A project utilizing servo motor  in a practical application
This circuit appears to be a remote-controlled robotic system with multiple servos and DC gearmotors, likely for movement and manipulation. An Arduino UNO microcontroller is used to control the servos and motors via a L298N motor driver, and it interfaces with an HC-05 Bluetooth module for wireless communication. Power management is handled by a Li-ion battery connected through a rocker switch and a step-down converter, with a relay and LED indicating the system's power status.
Cirkit Designer LogoOpen Project in Cirkit Designer

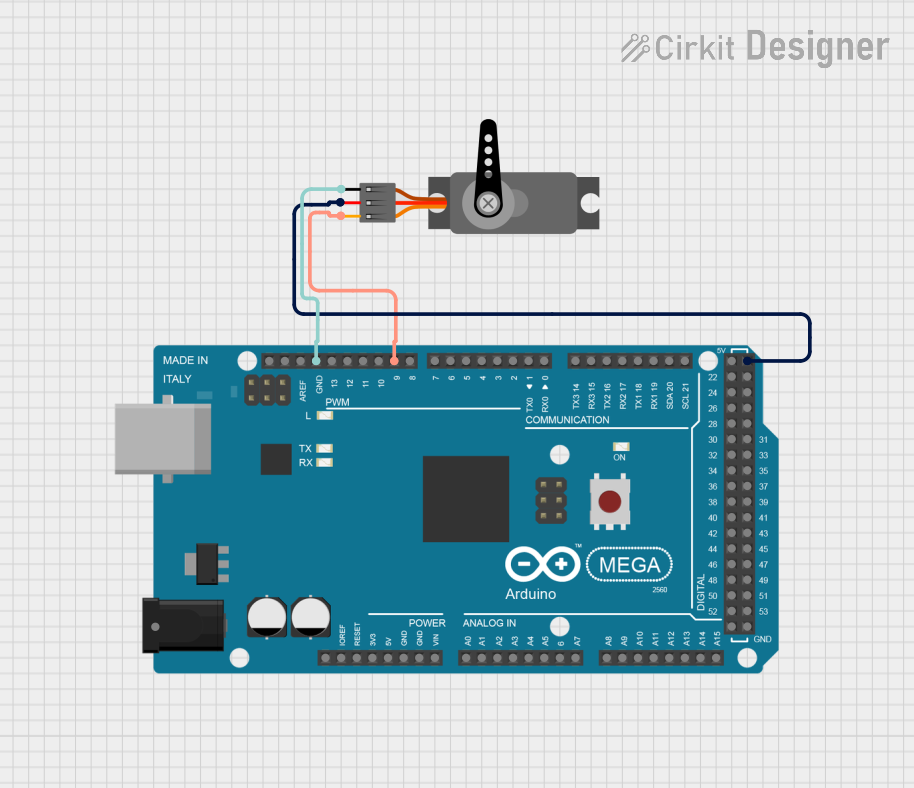

Arduino Mega 2560 Controlled Servo Motor System
Image of project2: A project utilizing servo motor  in a practical application
This circuit consists of an Arduino Mega 2560 microcontroller connected to a servo motor. The Arduino controls the servo motor via a PWM signal on pin D9, while providing power and ground connections to the servo motor from its 5V and GND pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with servo motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of robotic: A project utilizing servo motor  in a practical application
Arduino Mega 2560 Controlled Multi-Servo Random Positioning System
This circuit consists of an Arduino Mega 2560 microcontroller connected to twelve servo motors, each individually controlled by a distinct PWM pin on the Arduino. The servos are powered by a single Polymer Lithium Ion Battery, with all servos sharing a common power (VCC) and ground (GND) connection. The embedded code on the Arduino is designed to randomly position each servo within a 0 to 180-degree range, with a random delay between movements, demonstrating a multi-servo control system possibly for applications like robotics or animatronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CARM: A project utilizing servo motor  in a practical application
Bluetooth-Controlled Robotic Vehicle with Arduino and Servo-Gearmotor Actuation
This circuit appears to be a remote-controlled robotic system with multiple servos and gearmotors, likely for movement and manipulation. An Arduino UNO microcontroller is used to control the servos and gearmotors via a L298N motor driver, and it interfaces with an HC-05 Bluetooth module for wireless communication. The system is powered by batteries, with a step-down converter to regulate voltage, and includes a relay and LED for power control and indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CARM: A project utilizing servo motor  in a practical application
Arduino-Controlled Robotic System with Bluetooth Interface and Motorized Actuators
This circuit appears to be a remote-controlled robotic system with multiple servos and DC gearmotors, likely for movement and manipulation. An Arduino UNO microcontroller is used to control the servos and motors via a L298N motor driver, and it interfaces with an HC-05 Bluetooth module for wireless communication. Power management is handled by a Li-ion battery connected through a rocker switch and a step-down converter, with a relay and LED indicating the system's power status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of project2: A project utilizing servo motor  in a practical application
Arduino Mega 2560 Controlled Servo Motor System
This circuit consists of an Arduino Mega 2560 microcontroller connected to a servo motor. The Arduino controls the servo motor via a PWM signal on pin D9, while providing power and ground connections to the servo motor from its 5V and GND pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Servo motors come in various sizes and specifications, but the following are typical for standard hobby servo motors:

Parameter Value
Operating Voltage 4.8V to 6V
Stall Torque 1.5 kg·cm to 20 kg·cm (varies)
Operating Speed ~0.1 to 0.2 seconds per 60°
Control Signal PWM (Pulse Width Modulation)
PWM Pulse Range 1 ms to 2 ms (for 0° to 180°)
Idle Current ~10 mA
Maximum Current ~1 A (varies by model)
Rotation Range 0° to 180° (standard)
Connector Type 3-pin (Signal, VCC, GND)

Pin Configuration

The servo motor typically has a 3-pin connector with the following pinout:

Pin Wire Color Description
Signal Orange/White Receives PWM control signal
VCC Red Power supply (4.8V to 6V)
GND Brown/Black Ground connection

Usage Instructions

How to Use the Servo Motor in a Circuit

  1. Power Supply: Connect the servo motor's VCC pin to a 5V or 6V power source, depending on the motor's specifications. Ensure the power supply can provide sufficient current (up to 1A for larger servos).
  2. Ground Connection: Connect the GND pin to the ground of your circuit.
  3. Control Signal: Connect the Signal pin to a PWM-capable pin on your microcontroller (e.g., Arduino).
  4. PWM Signal: Generate a PWM signal with a pulse width between 1 ms and 2 ms to control the servo's position:
    • 1 ms corresponds to 0°.
    • 1.5 ms corresponds to 90° (center position).
    • 2 ms corresponds to 180°.

Important Considerations and Best Practices

  • Power Supply: Avoid powering the servo motor directly from the microcontroller's 5V pin, as it may not provide enough current. Use an external power source or a dedicated servo driver.
  • Decoupling Capacitor: Place a capacitor (e.g., 100 µF) across the power supply lines to reduce voltage fluctuations caused by the servo's operation.
  • Avoid Overloading: Do not exceed the servo's torque rating, as this can damage the motor or reduce its lifespan.
  • PWM Frequency: Use a PWM frequency of 50 Hz (20 ms period) for standard servo motors.

Example: Connecting a Servo Motor to an Arduino UNO

Below is an example code to control a servo motor using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the motor

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000);      // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000);       // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000);        // Wait for 1 second
}

Notes on the Code

  • The Servo library simplifies the process of generating PWM signals for servo control.
  • The myServo.write(angle) function sets the servo to a specific angle (0° to 180°).
  • Ensure the servo is connected to a PWM-capable pin (e.g., pin 9 on the Arduino UNO).

Troubleshooting and FAQs

Common Issues and Solutions

  1. Servo Motor Not Moving

    • Cause: Insufficient power supply.
    • Solution: Use an external power source capable of providing sufficient current.
  2. Servo Jitters or Vibrations

    • Cause: Electrical noise or unstable power supply.
    • Solution: Add a decoupling capacitor across the power lines and ensure proper grounding.
  3. Servo Overheating

    • Cause: Overloading or continuous operation at high torque.
    • Solution: Reduce the load on the servo or use a higher-torque model.
  4. Servo Moves Erratically

    • Cause: Incorrect PWM signal or loose connections.
    • Solution: Verify the PWM signal timing and check all connections.

FAQs

  • Q: Can I rotate the servo motor beyond 180°?

    • A: Standard servo motors are limited to 180°. For continuous rotation, use a continuous rotation servo.
  • Q: Can I control multiple servos with one Arduino?

    • A: Yes, you can control multiple servos using the Servo library, but ensure the power supply can handle the total current draw.
  • Q: Why does my servo make a buzzing noise?

    • A: This is normal when the servo is holding its position under load. However, excessive noise may indicate overloading or a weak power supply.

By following this documentation, you can effectively integrate and troubleshoot a servo motor in your projects.
