How to Use ILI9225: Examples, Pinouts, and Specs

Introduction

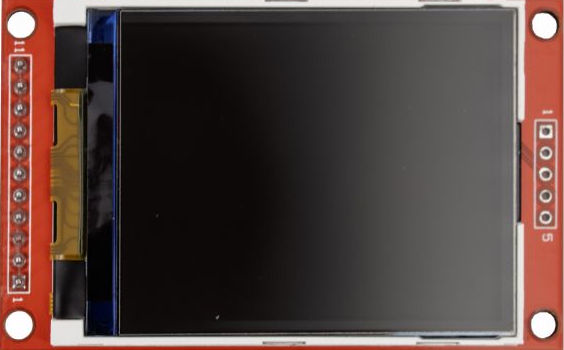

The ILI9225, manufactured by FREI (Part ID: TF018), is a color LCD driver IC designed for controlling TFT displays. It supports a wide range of resolutions and provides interfaces for both parallel and serial communication. This makes it a versatile choice for embedded systems requiring graphical display capabilities.

Explore Projects Built with ILI9225

Lilygo 7670e-Based Smart Interface with LCD Display and Keypad

This circuit features a Lilygo 7670e microcontroller interfaced with a 16x2 I2C LCD for display, a 4X4 membrane matrix keypad for input, and an arcade button for additional control. It also includes a 4G antenna and a GPS antenna for communication and location tracking capabilities.

Open Project in Cirkit Designer

RTL8720DN-Based Interactive Button-Controlled TFT Display

This circuit features an RTL8720DN microcontroller interfaced with a China ST7735S 160x128 TFT LCD display and four pushbuttons. The microcontroller reads the states of the pushbuttons and displays their statuses on the TFT LCD, providing a visual feedback system for button presses.

Open Project in Cirkit Designer

Cellular-Connected ESP32-CAM with Real-Time Clock and Isolated Control

This circuit integrates a LilyGo-SIM7000G module with an RTC DS3231 for timekeeping, interfaced via I2C (SCL and SDA lines). An 8-Channel OPTO-COUPLER is used to isolate and interface external signals with the LilyGo-SIM7000G's GPIOs. Power is managed by a Buck converter, which steps down voltage from a DC Power Source to supply the ESP32-CAM and LilyGo-SIM7000G modules, as well as the OPTO-COUPLER.

Open Project in Cirkit Designer

Cellular-Enabled IoT Device with Real-Time Clock and Power Management

This circuit features a LilyGo-SIM7000G module for cellular communication and GPS functionality, interfaced with an RTC DS3231 for real-time clock capabilities. It includes voltage sensing through two voltage sensor modules, and uses an 8-channel opto-coupler for isolating different parts of the circuit. Power management is handled by a buck converter connected to a DC power source and batteries, with a fuse for protection and a rocker switch for on/off control. Additionally, there's an LED for indication purposes.

Open Project in Cirkit Designer

Common Applications and Use Cases

Embedded systems with graphical user interfaces
Portable devices such as handheld consoles and smart gadgets
Industrial control panels
Educational and hobbyist projects involving TFT displays
Arduino and microcontroller-based projects

Technical Specifications

The ILI9225 is a highly capable LCD driver IC with the following key specifications:

General Specifications

Parameter	Value
Manufacturer	FREI
Part ID	TF018
Display Type Supported	TFT LCD
Maximum Resolution	176 x 220 pixels
Color Depth	65K colors (16-bit RGB565)
Communication Interfaces	Parallel (8/16-bit), SPI
Operating Voltage (VDD)	2.5V to 3.3V
Logic Voltage (VIO)	1.65V to 3.3V
Operating Temperature	-30°C to 85°C

Pin Configuration and Descriptions

The ILI9225 has multiple pins for power, communication, and control. Below is a summary of the key pins:

Power and Ground Pins

Pin Name	Description
VDD	Power supply for the IC
VSS	Ground connection
VCI	Power supply for the display

Communication Pins

Pin Name	Description
DB[0:15]	Data bus for parallel communication (8/16-bit)
CS	Chip select signal
RS	Register select (command/data selection)
WR	Write enable signal
RD	Read enable signal
SCL	Serial clock for SPI communication
SDA	Serial data for SPI communication

Control Pins

Pin Name	Description
RESET	Resets the IC
IM[0:3]	Interface mode selection (parallel/SPI)
LED+	Backlight power (connect to LED driver circuit)

Usage Instructions

The ILI9225 can be used to drive TFT displays in embedded systems. Below are the steps and considerations for using the component effectively:

Connecting the ILI9225 to a Microcontroller

Power Supply: Connect the VDD and VCI pins to a 3.3V power source. Ensure proper decoupling capacitors are used to stabilize the power supply.
Communication Interface:
- For parallel communication, connect the DB[0:15] pins to the microcontroller's GPIO pins. Use the CS, RS, WR, and RD pins for control.
- For SPI communication, connect the SCL and SDA pins to the microcontroller's SPI clock and data lines, respectively.
Backlight: Connect the LED+ pin to a suitable LED driver circuit or a current-limiting resistor.
Reset: Use the RESET pin to initialize the IC during startup.

Example: Using ILI9225 with Arduino UNO

The ILI9225 can be interfaced with an Arduino UNO using SPI communication. Below is an example code snippet to initialize and display graphics on a TFT screen:

#include <SPI.h>
#include <TFT_ILI9225.h> // Include the ILI9225 library

// Define pin connections
#define TFT_CS   10  // Chip select pin
#define TFT_RST  9   // Reset pin
#define TFT_RS   8   // Register select pin

// Create an instance of the TFT_ILI9225 library
TFT_ILI9225 tft = TFT_ILI9225(TFT_CS, TFT_RST, TFT_RS);

void setup() {
  // Initialize the TFT display
  tft.begin();

  // Set the screen background color
  tft.setBackgroundColor(COLOR_BLACK);
  tft.clear();

  // Display a message on the screen
  tft.drawText(10, 20, "Hello, ILI9225!", COLOR_WHITE);
}

void loop() {
  // Add your main code here
}

Important Considerations

Voltage Levels: Ensure that the logic voltage (VIO) matches the microcontroller's I/O voltage levels. Use level shifters if necessary.
Decoupling Capacitors: Place decoupling capacitors close to the power pins to reduce noise.
Backlight Control: Use a PWM signal to control the brightness of the backlight.

Troubleshooting and FAQs

Common Issues and Solutions

No Display Output:
- Verify the power supply connections (VDD, VCI, and VSS).
- Check the communication interface wiring (SPI or parallel).
- Ensure the RESET pin is properly initialized during startup.
Distorted or Incorrect Colors:
- Confirm that the data format (RGB565) matches the display configuration.
- Check for loose or incorrect connections on the data bus.
Backlight Not Working:
- Ensure the LED+ pin is connected to a proper current-limiting circuit.
- Verify the backlight power supply voltage.
Display Freezes or Does Not Update:
- Check the timing of control signals (CS, RS, WR, RD).
- Ensure the microcontroller's SPI clock speed is within the supported range.

FAQs

Q: Can the ILI9225 be used with 5V microcontrollers?
A: Yes, but you must use level shifters to convert the 5V logic signals to 3.3V.

Q: What is the maximum resolution supported by the ILI9225?
A: The ILI9225 supports a maximum resolution of 176 x 220 pixels.

Q: Does the ILI9225 support touch input?
A: No, the ILI9225 is a display driver IC and does not include touch input functionality. You will need a separate touch controller for touch-enabled displays.

Q: Can I use the ILI9225 with other microcontrollers besides Arduino?
A: Yes, the ILI9225 can be used with any microcontroller that supports SPI or parallel communication.

By following this documentation, you can effectively integrate the ILI9225 into your projects and troubleshoot common issues.
