Introduction

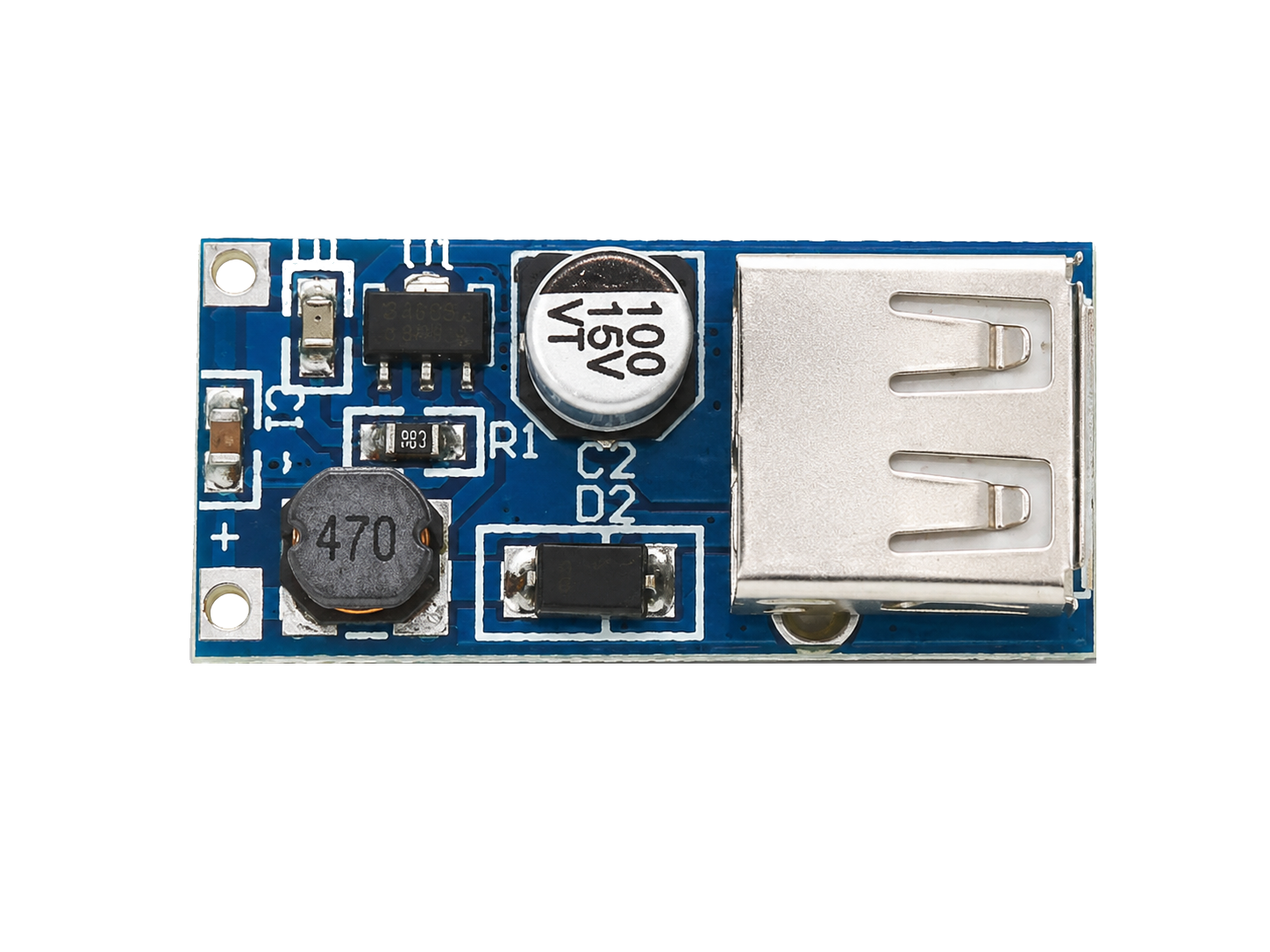

The Module Mini PFM Boost Converter 5V is a compact and efficient power module designed to step up a lower input voltage to a stable 5V output. Utilizing Pulse Frequency Modulation (PFM) technology, this module ensures high efficiency in energy conversion, making it ideal for battery-powered applications. Its small size and lightweight design make it suitable for portable devices, DIY electronics projects, and low-power IoT systems.

Explore Projects Built with Module Mini PFM Boost Converter 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Environmental Sensing and Data Logging System with GPS and Wi-Fi/LoRa Connectivity
Image of Copy of Sat_2: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
This circuit features a T-Deer Pro Mini LoRa Atmega328P microcontroller connected to various sensors (BMP280, Adafruit VEML6075 UV Sensor, ENS160+AHT21, GPS NEO 6M) and a SparkFun OpenLog for data logging. A step-up boost converter raises the voltage from a 3.7V battery to 5V to power an ESP32-CAM module. The circuit includes a buzzer for alerts and a rocker switch to control power flow, with all components sharing a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Lora G2 Node Station with 18650 Li-ion Batteries and Boost Converter
Image of Custom-Lora-G2-Node: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
This circuit is a portable power supply system that uses multiple 18650 Li-ion batteries to provide a stable 5V output through a boost converter. It includes a fast charging module with a USB-C input for recharging the batteries and a battery indicator for monitoring the battery status. The system powers a Lora G2 Node Station, making it suitable for wireless communication applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Module Mini PFM Boost Converter 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Sat_2: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
Environmental Sensing and Data Logging System with GPS and Wi-Fi/LoRa Connectivity
This circuit features a T-Deer Pro Mini LoRa Atmega328P microcontroller connected to various sensors (BMP280, Adafruit VEML6075 UV Sensor, ENS160+AHT21, GPS NEO 6M) and a SparkFun OpenLog for data logging. A step-up boost converter raises the voltage from a 3.7V battery to 5V to power an ESP32-CAM module. The circuit includes a buzzer for alerts and a rocker switch to control power flow, with all components sharing a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Weird Case: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Custom-Lora-G2-Node: A project utilizing Module Mini PFM Boost Converter 5V in a practical application
Battery-Powered Lora G2 Node Station with 18650 Li-ion Batteries and Boost Converter
This circuit is a portable power supply system that uses multiple 18650 Li-ion batteries to provide a stable 5V output through a boost converter. It includes a fast charging module with a USB-C input for recharging the batteries and a battery indicator for monitoring the battery status. The system powers a Lora G2 Node Station, making it suitable for wireless communication applications.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering 5V devices from lower voltage sources (e.g., 1.5V or 3.7V batteries)
  • DIY electronics and prototyping
  • Portable power supplies for microcontrollers and sensors
  • IoT devices and wearable technology
  • Emergency power solutions for USB-powered devices

Technical Specifications

Below are the key technical details of the Module Mini PFM Boost Converter 5V:

Parameter Specification
Input Voltage Range 0.9V to 5V
Output Voltage 5V ± 0.1V
Maximum Output Current 500mA (depending on input voltage)
Efficiency Up to 96%
Switching Frequency 150kHz (typical)
Dimensions 22mm x 17mm x 4mm
Weight ~2g

Pin Configuration and Descriptions

The module has three main pins for connection:

Pin Name Description
VIN Input voltage pin. Connect to the positive terminal of the power source.
GND Ground pin. Connect to the negative terminal of the power source.
VOUT Output voltage pin. Provides a stable 5V output for powering external devices.

Usage Instructions

How to Use the Module in a Circuit

  1. Connect the Input Voltage:

    • Attach the VIN pin to the positive terminal of your power source (e.g., a battery).
    • Connect the GND pin to the negative terminal of the power source.
  2. Connect the Output Load:

    • Connect the VOUT pin to the positive terminal of the device or circuit you want to power.
    • Ensure the GND pin is also connected to the ground of the load.
  3. Verify Connections:

    • Double-check all connections to ensure proper polarity and avoid short circuits.
  4. Power On:

    • Turn on the power source. The module will automatically boost the input voltage to a stable 5V output.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (0.9V to 5V). Exceeding this range may damage the module.
  • Output Current Limit: The maximum output current depends on the input voltage. For example:
    • At 1.5V input, the maximum output current is approximately 200mA.
    • At 3.7V input, the maximum output current can reach up to 500mA.
  • Heat Dissipation: Avoid overloading the module, as excessive current draw may cause overheating.
  • Filtering Capacitors: For improved stability, you can add a capacitor (e.g., 10µF) across the VOUT and GND pins.

Example: Using with an Arduino UNO

The Module Mini PFM Boost Converter 5V can be used to power an Arduino UNO from a 3.7V Li-ion battery. Below is an example circuit and code:

Circuit Connections

  • Connect the VIN pin of the module to the positive terminal of the 3.7V battery.
  • Connect the GND pin of the module to the negative terminal of the battery.
  • Connect the VOUT pin of the module to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the module to the GND pin of the Arduino UNO.

Example Code

// Example code to blink an LED using Arduino UNO powered by the PFM Boost Converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify the connections and ensure the input voltage is within the specified range.
  2. Output Voltage Drops Under Load:

    • Cause: Excessive current draw or low input voltage.
    • Solution: Reduce the load current or increase the input voltage.
  3. Module Overheating:

    • Cause: Prolonged operation at high current or insufficient ventilation.
    • Solution: Reduce the load or improve heat dissipation by adding a heatsink or airflow.
  4. Output Voltage Not Stable:

    • Cause: Insufficient filtering or noisy input power.
    • Solution: Add a capacitor (e.g., 10µF to 100µF) across the VOUT and GND pins.

FAQs

  • Q: Can this module power a Raspberry Pi?
    A: No, the module cannot provide sufficient current for a Raspberry Pi, which typically requires 2.5A or more.

  • Q: Can I use this module with a solar panel?
    A: Yes, as long as the solar panel's output voltage is within the module's input range (0.9V to 5V).

  • Q: What happens if the input voltage exceeds 5V?
    A: Exceeding the input voltage range may permanently damage the module. Always use a regulated power source.

  • Q: Is reverse polarity protection included?
    A: No, the module does not have reverse polarity protection. Ensure correct polarity when connecting the power source.

This concludes the documentation for the Module Mini PFM Boost Converter 5V.
