How to Use power outlet (IL): Examples, Pinouts, and Specs
Design with power outlet (IL) in Cirkit DesignerIntroduction

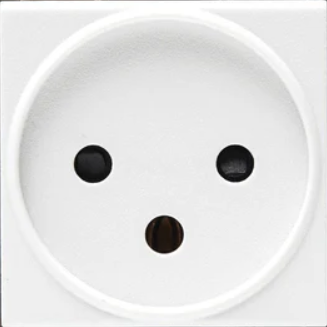

A power outlet, also known as an electrical outlet, socket, or receptacle, is a device that provides a point of connection for electrical devices to the power supply of a building. In Israel (IL), power outlets are designed to accommodate the Type H plug standard, which is unique to Israel and has three pins including a grounding pin. These outlets are commonly used in residential and commercial settings to power a wide range of devices and appliances.
Explore Projects Built with power outlet (IL)
ESP32-Based Smart Power Monitoring and Control System with OLED Display
This circuit is designed to monitor and control a 120V AC outlet using an ESP32 microcontroller. It includes a PZEM004t module for measuring voltage, current, and power, and a 12V relay to switch the outlet on and off. An OLED display is used to show real-time data, and the HLK-PM12 module provides the necessary 5V and 3.3V power to the components.
Open Project in Cirkit DesignerElectromechanical Pump Control Circuit with Emergency Stop
This circuit is designed to control a pump using a contactor that is manually operated by a switch and can be overridden by an emergency stop. The contactor enables power from an AC power outlet to the pump, and the emergency stop can interrupt the power circuit for safety purposes.
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerHeater Control Circuit with Power Socket Integration
The circuit connects a heater to a power source via a socket. The heater is likely to be powered directly from the socket, with the positive and negative terminals of the socket providing the necessary voltage and ground connections to the heater. There are no control elements or sensors present in the circuit, indicating that the heater operates at a constant power level when connected.
Open Project in Cirkit DesignerExplore Projects Built with power outlet (IL)
ESP32-Based Smart Power Monitoring and Control System with OLED Display
This circuit is designed to monitor and control a 120V AC outlet using an ESP32 microcontroller. It includes a PZEM004t module for measuring voltage, current, and power, and a 12V relay to switch the outlet on and off. An OLED display is used to show real-time data, and the HLK-PM12 module provides the necessary 5V and 3.3V power to the components.
Open Project in Cirkit DesignerElectromechanical Pump Control Circuit with Emergency Stop
This circuit is designed to control a pump using a contactor that is manually operated by a switch and can be overridden by an emergency stop. The contactor enables power from an AC power outlet to the pump, and the emergency stop can interrupt the power circuit for safety purposes.
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerHeater Control Circuit with Power Socket Integration
The circuit connects a heater to a power source via a socket. The heater is likely to be powered directly from the socket, with the positive and negative terminals of the socket providing the necessary voltage and ground connections to the heater. There are no control elements or sensors present in the circuit, indicating that the heater operates at a constant power level when connected.
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Residential homes for powering household appliances, lighting, and electronic devices.
- Commercial buildings for office equipment, machinery, and lighting.
- Public spaces for charging mobile devices, laptops, and other portable electronics.
Technical Specifications
Key Technical Details
- Voltage Rating: 230V AC
- Current Rating: Typically 16A
- Frequency: 50Hz
- Socket Type: Type H (unique to Israel)
- Safety Standards: Conforms to Israeli Standard SI 32
Pin Configuration and Descriptions
| Pin Number | Description | Note |
|---|---|---|
| 1 | Line (Hot) | Provides the supply voltage |
| 2 | Neutral | Completes the circuit |
| 3 | Ground (Earth) | For safety, to prevent electric shock |
Usage Instructions
How to Use the Power Outlet in a Circuit
- Installation: Ensure that the power outlet is installed by a qualified electrician to comply with local electrical codes and standards.
- Connection: Plug the Type H plug into the power outlet, ensuring that the pins align correctly with the socket holes.
- Operation: Once the device is plugged in, it can be powered on. The outlet will provide electricity to the device as long as the main power supply is active.
Important Considerations and Best Practices
- Safety: Always turn off the main power supply before attempting any installation or maintenance.
- Compatibility: Use only devices with a Type H plug or an appropriate adapter for the power outlet.
- Load Limit: Do not exceed the current rating of the power outlet to prevent overheating and potential fire hazards.
- Surge Protection: Consider using a surge protector to safeguard sensitive electronics against voltage spikes.
Troubleshooting and FAQs
Common Issues Users Might Face
- Power Outlet Not Working: Check if the circuit breaker has tripped or if there is a blown fuse.
- Loose Connection: Ensure that the plug is fully inserted into the outlet.
- Overheating Outlet: Unplug devices if the outlet becomes hot to the touch and consult an electrician.
Solutions and Tips for Troubleshooting
- Reset Circuit Breaker: Locate the breaker box and reset any tripped breaker.
- Replace Fuse: If a fuse is blown, replace it with one of the same rating.
- Check Wiring: If problems persist, the wiring may be faulty. Contact a professional.
FAQs
- Q: Can I use a power outlet without a ground connection?
- A: It is not recommended as the ground connection provides an essential safety feature.
- Q: What should I do if my device's plug doesn't fit the power outlet?
- A: Use a certified adapter that is compatible with Type H outlets or have the device fitted with the correct plug by a professional.
Code Example for Arduino UNO
Since a power outlet is not directly interfaced with an Arduino UNO, there is no relevant code example for this component. The Arduino UNO operates at low DC voltages and is not designed to control mains AC power directly. However, for applications that require control of a power outlet via an Arduino, a relay module or a smart plug with an API compatible with the Arduino can be used. Always ensure that any such interfacing is done in compliance with safety standards and by a qualified individual.
Please note that controlling a power outlet with an Arduino involves working with high voltage and current, which can be extremely dangerous. This should only be done by experienced individuals with a thorough understanding of electrical safety protocols.
This documentation provides a basic overview of the power outlet (IL) and its usage. For any electrical work involving power outlets, always consult with or hire a licensed electrician to ensure safety and compliance with local regulations.
