How to Use 2.1mm Barrel Jack with Terminal Block: Examples, Pinouts, and Specs

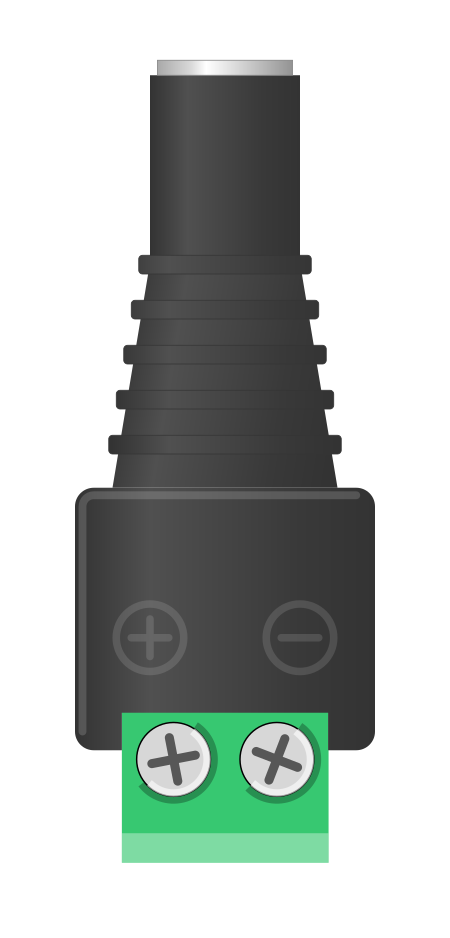

The 2.1mm Barrel Jack with Terminal Block is a versatile electrical connector designed for power supply connections. It features a cylindrical barrel jack with a 2.1mm inner diameter and a terminal block for easy wiring. This component is widely used in low-voltage DC power applications, offering a secure and reliable connection between a power source and electronic devices.

• Powering Arduino boards, Raspberry Pi, and other microcontrollers
• Connecting DC power supplies to LED strips, motors, or sensors
• Prototyping circuits with external power sources
• DIY electronics projects requiring quick and secure power connections

The following table outlines the key technical details of the 2.1mm Barrel Jack with Terminal Block:

The 2.1mm Barrel Jack with Terminal Block has two main connections:

1. Prepare the Wires: Strip the insulation from the ends of the wires you want to connect to the terminal block.
2. Connect the Wires:
   • Loosen the screws on the terminal block using a small screwdriver.
   • Insert the positive wire into the terminal marked "+" and the negative wire into the terminal marked "-".
   • Tighten the screws to secure the wires in place.
3. Connect the Barrel Jack:
   • Plug the barrel jack into the corresponding female connector of your device or circuit.
4. Power the Circuit: Connect the other end of the wires to a DC power source, ensuring the voltage and current ratings are within the component's specifications.

• Polarity: Ensure correct polarity when connecting wires to the terminal block. Reversing polarity may damage your circuit.
• Voltage and Current Limits: Do not exceed the voltage and current ratings of the barrel jack to avoid overheating or damage.
• Secure Connections: Tighten the terminal block screws firmly to prevent loose connections, which can cause intermittent power issues.
• Insulation: Use heat shrink tubing or electrical tape to insulate exposed wire ends for safety.

The 2.1mm Barrel Jack with Terminal Block can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Connect a 9V DC power supply to the terminal block (positive wire to "+", negative wire to "-").
2. Plug the barrel jack into the Arduino UNO's power input port.
3. Ensure the power supply is within the Arduino's recommended voltage range (7-12V).

If you're powering sensors or modules connected to the Arduino, you can use the following code to test the setup:

// Simple LED Blink Test
// Ensure the Arduino is powered via the 2.1mm barrel jack

const int ledPin = 13; // Built-in LED pin on most Arduino boards

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. Loose Connections:

   • Problem: The circuit intermittently loses power.
   • Solution: Ensure the terminal block screws are tightened securely and the wires are properly inserted.

2. Incorrect Polarity:

   • Problem: The connected device does not power on or behaves abnormally.
   • Solution: Double-check the polarity of the wires connected to the terminal block.

3. Overheating:

   • Problem: The barrel jack or wires become hot during operation.
   • Solution: Verify that the voltage and current ratings of the power source do not exceed the component's specifications.

4. Barrel Jack Does Not Fit:

   • Problem: The barrel jack does not connect properly to the device.
   • Solution: Ensure the device's female connector is compatible with a 2.1mm inner diameter and 5.5mm outer diameter barrel jack.

Q: Can this component handle AC power?
A: No, the 2.1mm Barrel Jack with Terminal Block is designed for DC power only. Using AC power may damage the component or connected devices.

Q: What wire gauge is compatible with the terminal block?
A: The terminal block typically supports wire gauges from 22 AWG to 18 AWG.

Q: Can I use this component for high-power applications?
A: This component is suitable for low to moderate power applications (up to 5A). For higher power, consider using connectors rated for higher currents.

Q: Is this component waterproof?
A: No, the 2.1mm Barrel Jack with Terminal Block is not waterproof. Use it in dry environments or enclosures to protect it from moisture.
